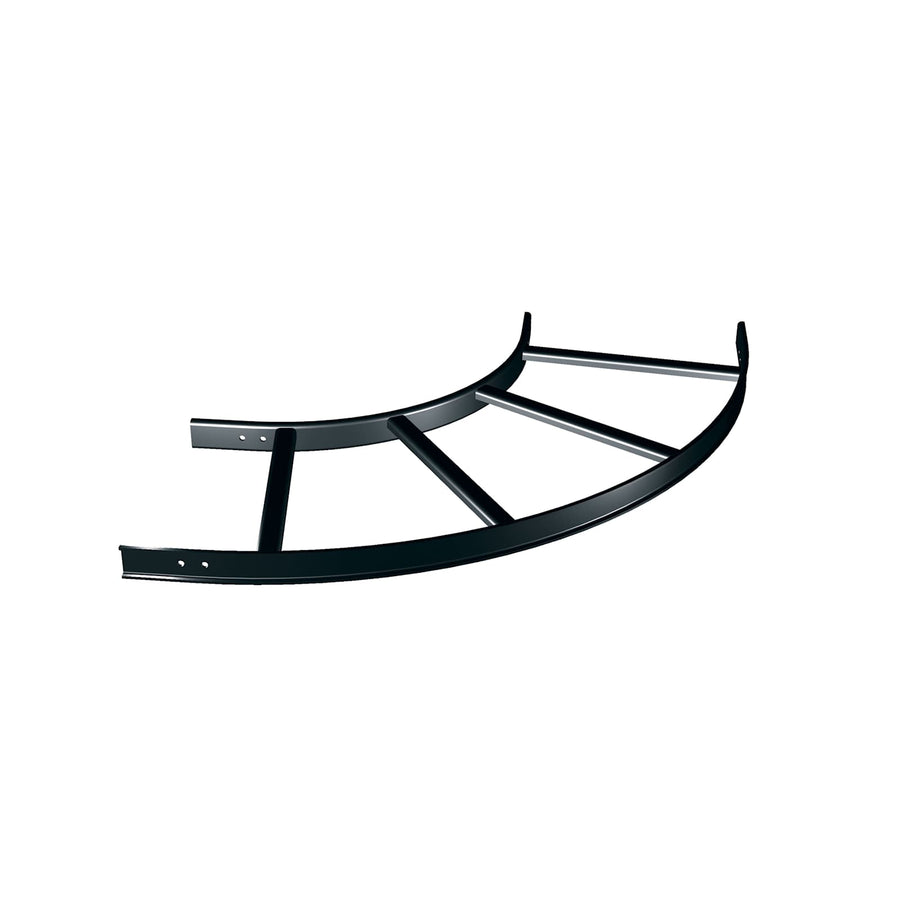

90° Horizontal. Ladder Bend, 12 Inches Wide
12-inch wide 90° horizontal ladder bend, 27 inches long, with a 1.5-inch height for professional cable management
The CLB-90HB is a 90-degree horizontal ladder bend designed for professional cable management in both new and existing installations. Measuring 27 inches in length and 12 inches in width, this component features a 1.5-inch height to facilitate organized routing through turns. Part of the Middle Atlantic Cable Ladder series, this bend is constructed with strong welded sections and finished in a highly durable, scratch-resistant black coating. To simplify logistics for installers, each ladder section is individually boxed and includes handles for easier transport. This 12-inch wide bend is compatible with most popular ladder brands and various Middle Atlantic accessories, such as the CLH-90T Adjustable 90° Tee Splice Kit or the CLH-RSJ Ladder End Splice Kit, ensuring versatile integration into complex overhead or under-floor cable routing systems.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Height | 1.5 in (3.8 cm) |
| Length | 27 in |
| Package Count | 1 |
| Shipping Weight | 9.5 lbs (4.3 kg) |
| Width | 12 in (30.5 cm) |
| Component Type | Cable Ladder |
| TAA Compliant | No |
| UPC | 656747036989 |
Resources
You'll need these with it

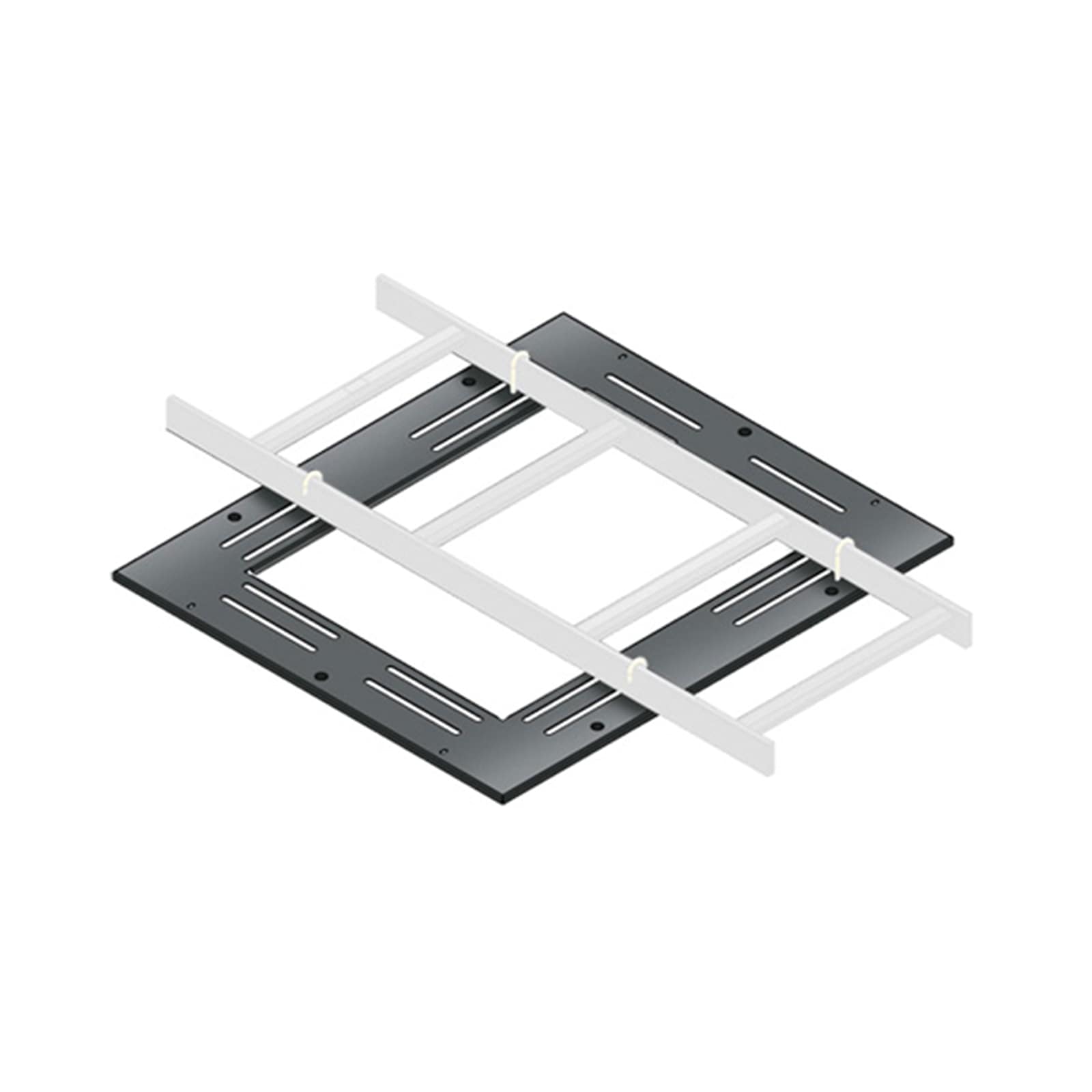

Ladder Adapter Top
MW-LA$125.10

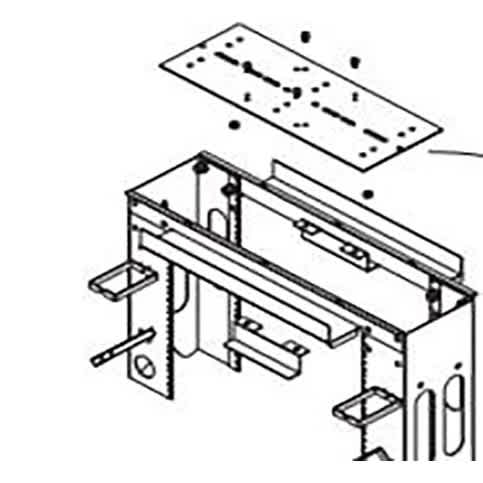

Top Ladder Adapter for MK Series Racks
MK-LA$95.40

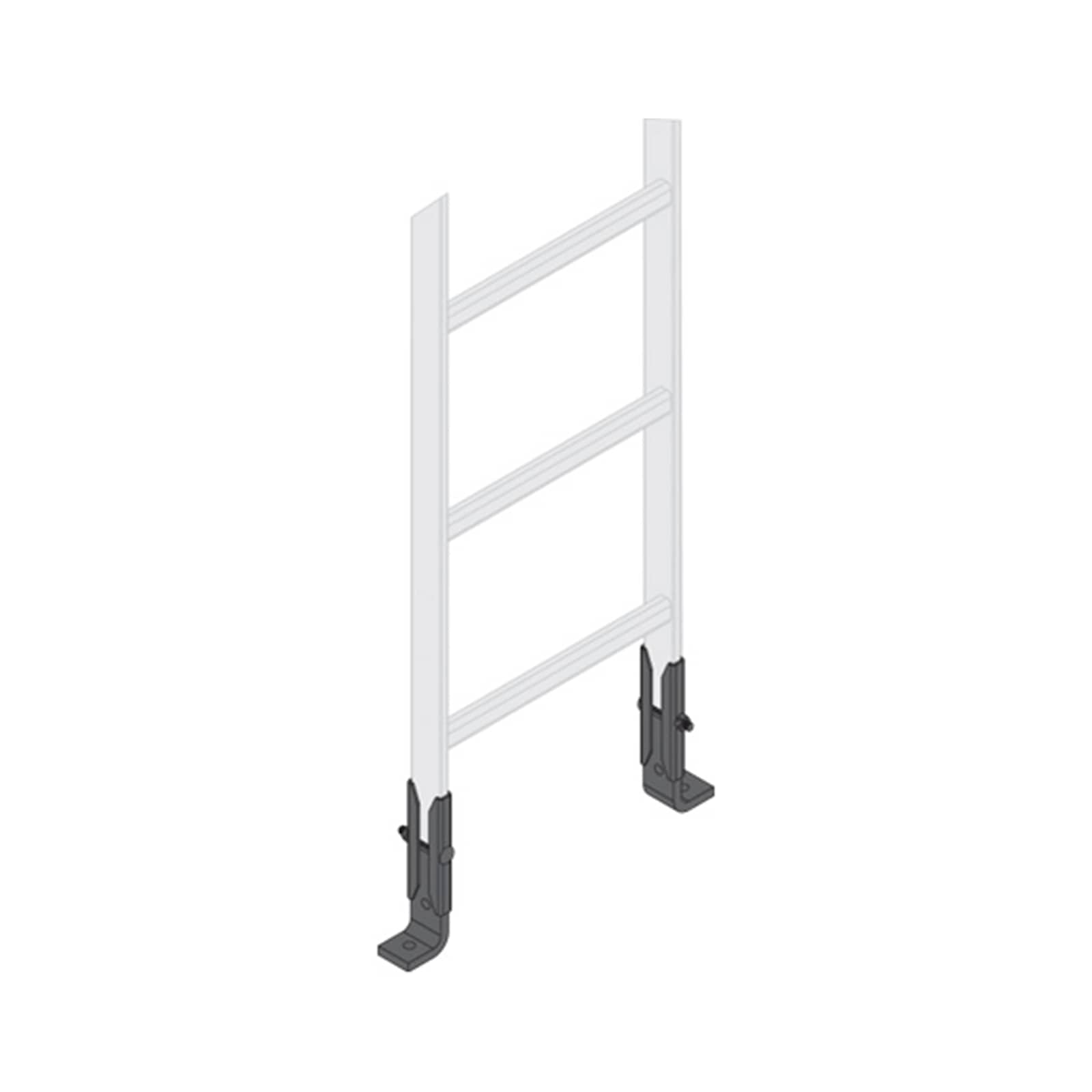

Ladder End Support Kit
CLH-RES$61.20

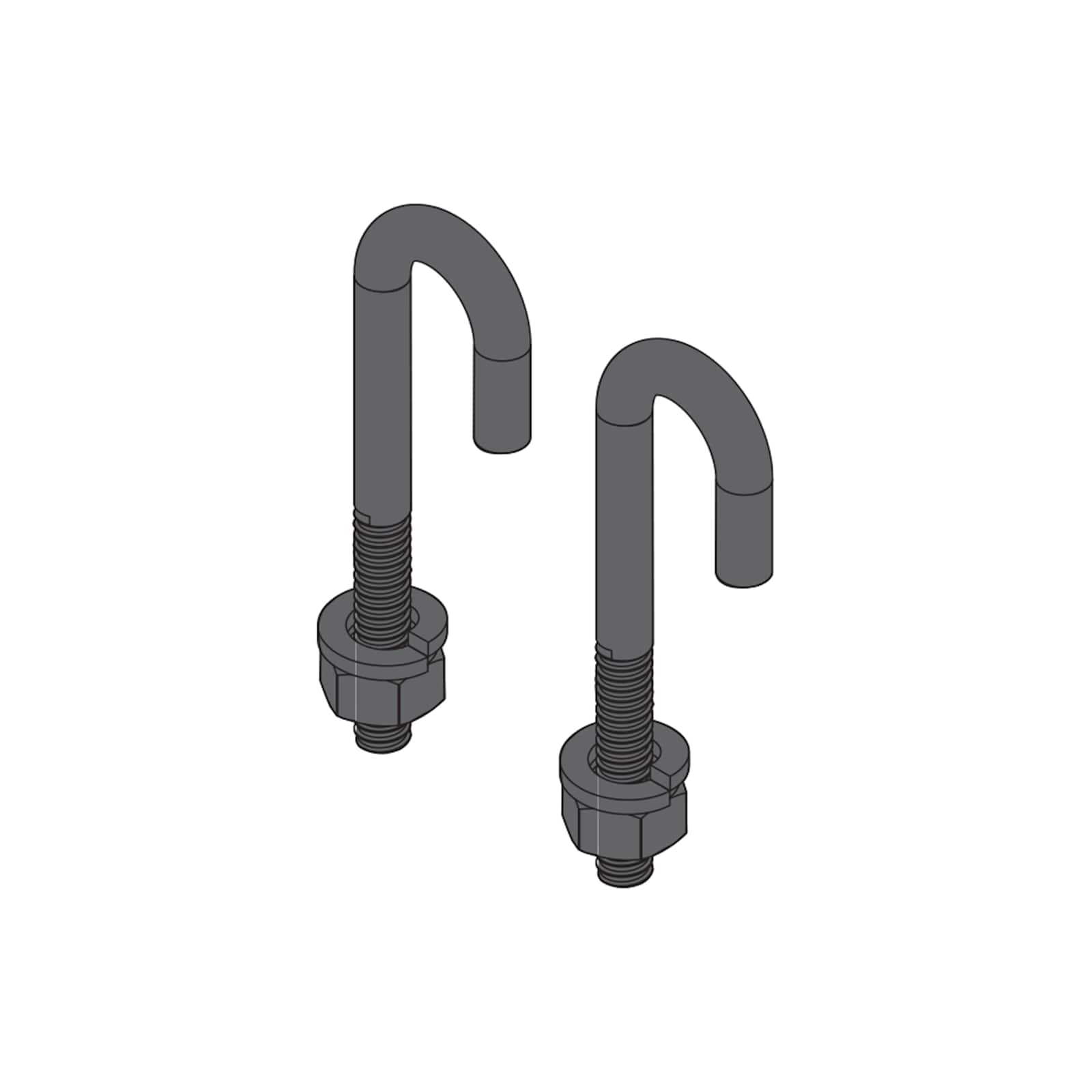

5/16 Inch J-Bolt with Nuts - 1 Pair
CLH-JBOLT$11.70

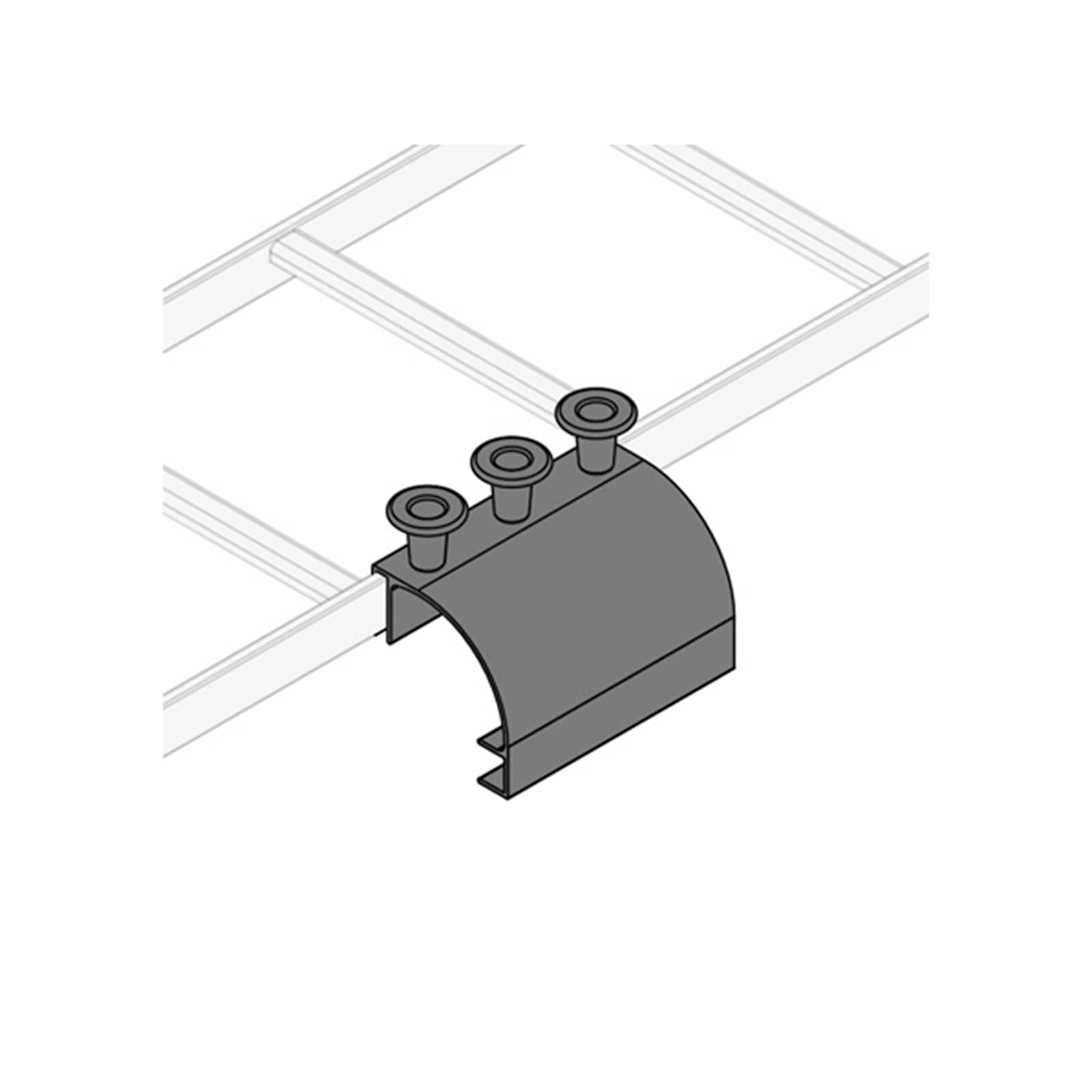

Ladder Side Drop with Spools, 8 Inches Wide
CLH-SD8$117.00

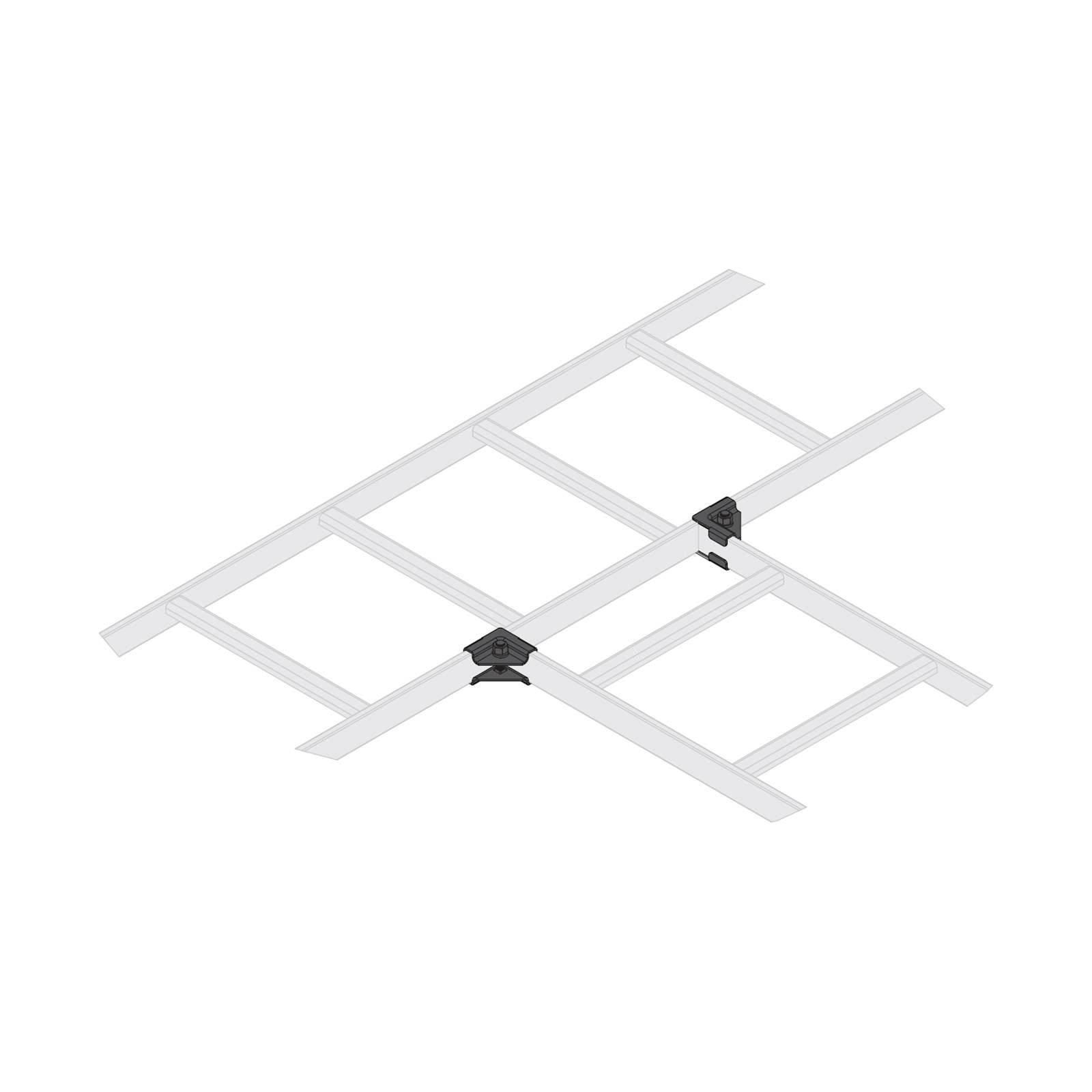

Horiz. 90° Tee Splice Kit
CLH-HTS$21.60

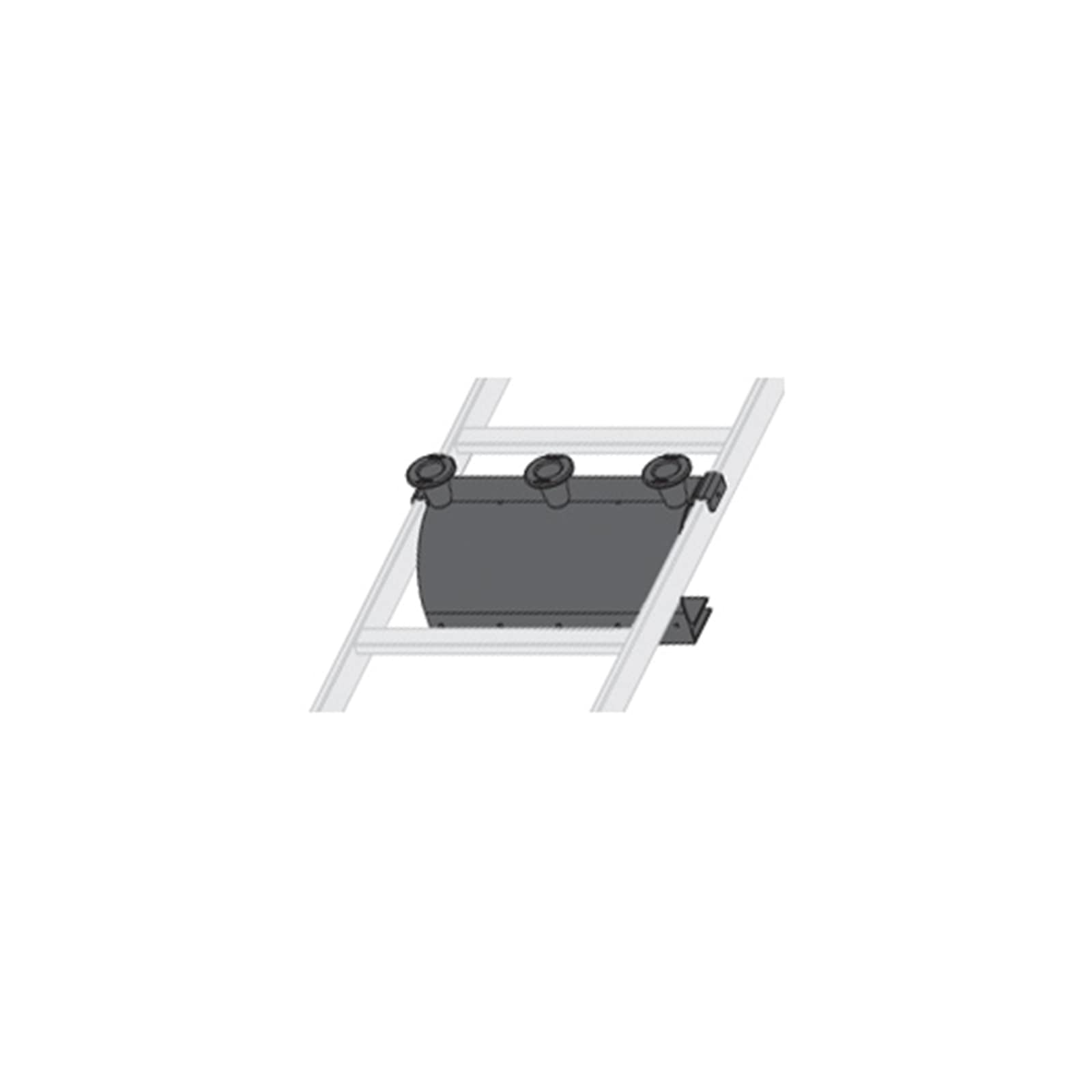

Adjustable Rung Drop with Spools, 12 Inches Wide
CLH-ARD12$142.20

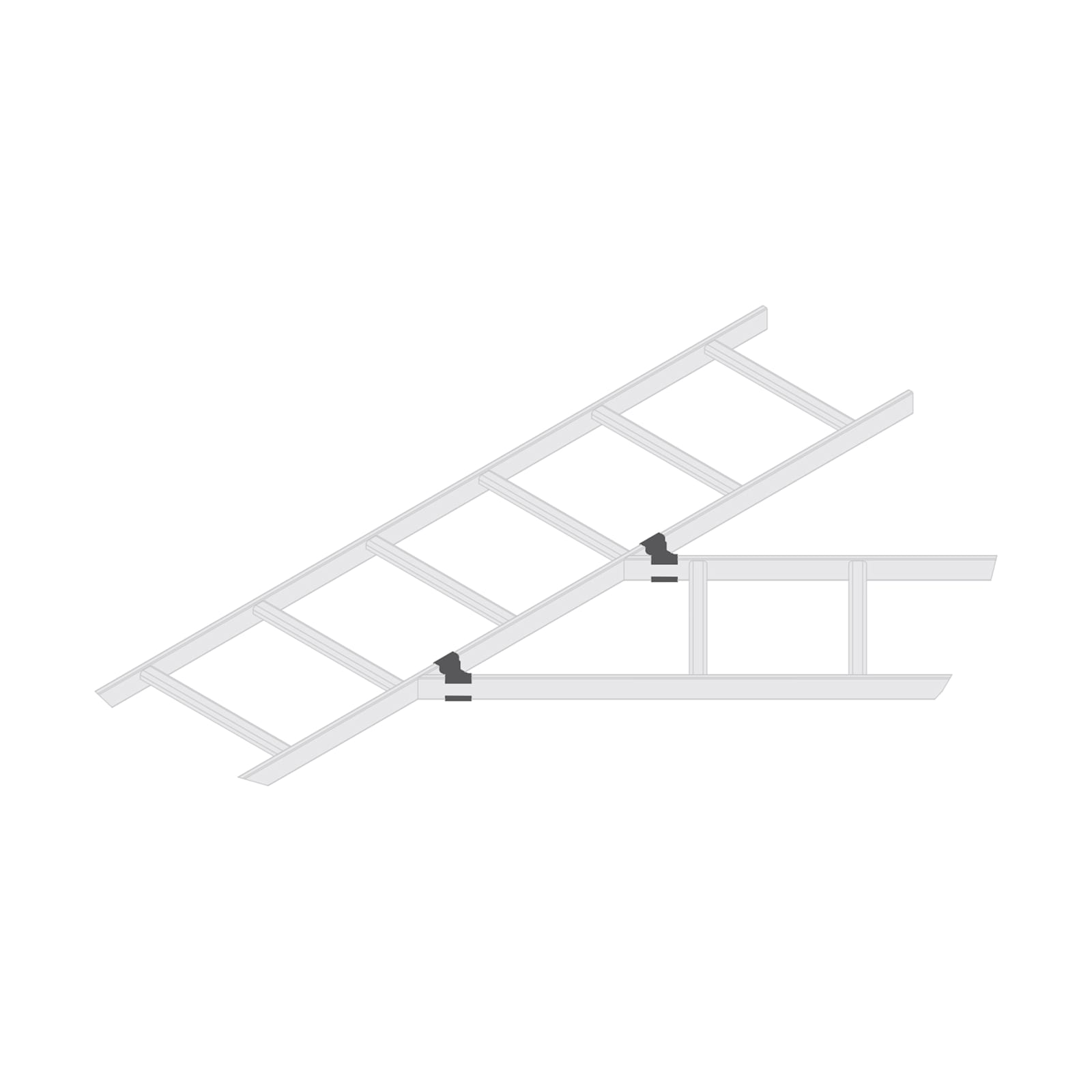

Adjustable Horizontal Splice Kit
CLH-ADJH$61.20
Questions about this part
What dimensions does the CLB-90HB have?
The CLB-90HB features a 12 in (30.5 cm) width, a 27 in (68.6 cm) length, and a 1.5 in (3.8 cm) height.
What accessories are compatible with this ladder bend?
It is compatible with various Middle Atlantic parts including the CLH-90T Adjustable 90° Tee Splice Kit, the CLH-ADJT Adjustable Ladder End Splice Kit, and the CLH-EC-12 Cable Ladder End Caps.
How is this ladder bend finished?
This component features a highly durable, scratch-resistant black finish designed for long-term reliability in professional installations.
Can this be used in existing installations?
Yes, this ladder bend is designed to work effectively in both new installations and retrofits of existing cable management systems.
What documentation is available for submittals?
Technical documentation includes the CL Series 3D CAD Drawings, Revit Models, and the CL Series A&E Specification Sheet.
