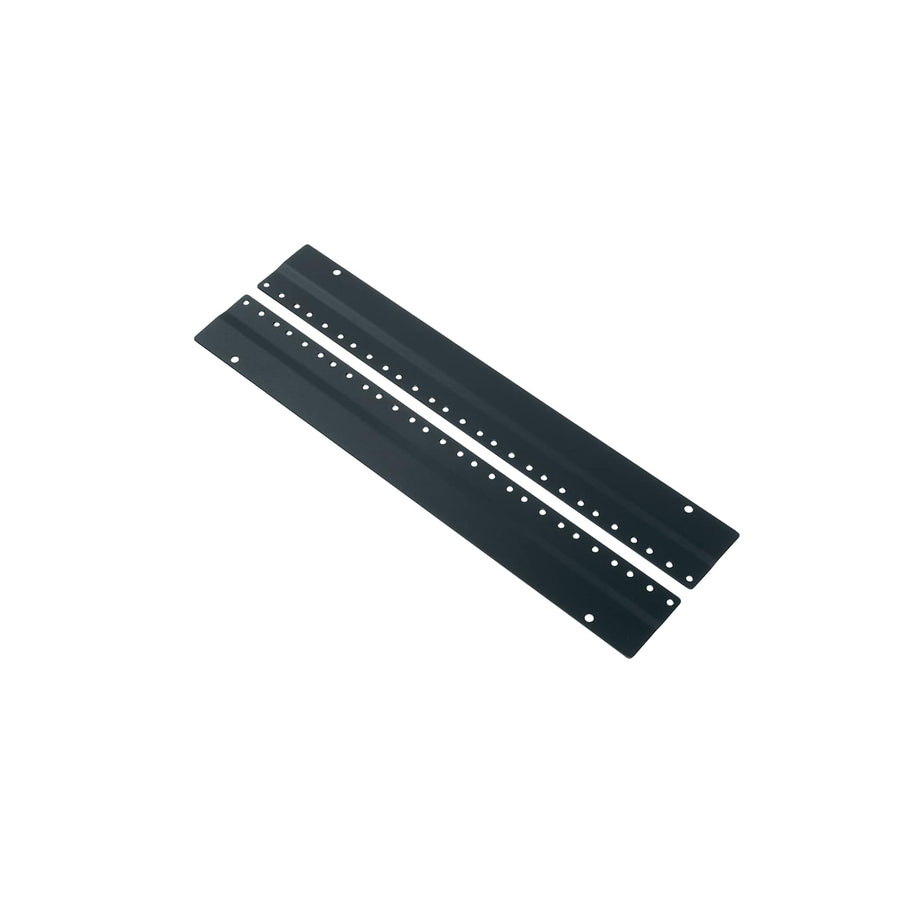

9 RU Top Rail Reducer BGR Series
9 RU rail reducer for converting 21" top openings to 19" standard for use with standard rackmount panels
The BGR-TRR9 is a 9 RU Top Rail Reducer from the Middle Atlantic BGR Series designed to facilitate the use of standard panels in top openings. This component reduces a 21" top opening down to a 19" standard, allowing installers to utilize any standard rackmount panels within the configuration. Built with sturdy steel construction, this reducer is seismic rated for stability in demanding environments. The BGR-TRR9 is TAA compliant, making it suitable for specific government and institutional procurement requirements. This specific model provides 9 RU of coverage and is part of a series that includes other sizing options, such as the 4 RU version.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 0.13 in (0.3 cm) |
| Height | 15.72 in (39.9 cm) |
| Rack Units | 9 RU |
| Shipping Weight | 1.2 lbs (0.5 kg) |
| Width | 22.38 in (56.9 cm) |
| Available Internationally | No |
| Controlled | No |
| Seismic Rated | Yes |
| UPC | 656747147784 |
Resources
Questions about this part
Will this BGR-TRR9 allow me to use 19 inch panels?
Yes, this reducer converts a 21" top opening to a 19" standard, enabling the installation of any standard rackmount panels.
Is the BGR-TRR9 seismic rated?
Yes, this 9 RU rail reducer is seismic rated and features a sturdy steel construction.
What is the difference between the BGR-TRR9 and other BGR series reducers?
The BGR-TRR9 is the 9 RU version; the BGR series also includes a 4 RU model to accommodate different rack heights.
Is this product TAA compliant?
Yes, the BGR-TRR9 is TAA compliant for procurement requirements.
Which document is needed for a submittal?
For technical drawings, you can use the BGR Series CAD Technical Specification Drawings (dwg) or the BGR Series A&E Specification Sheet (PDF) available in the resources tab.
