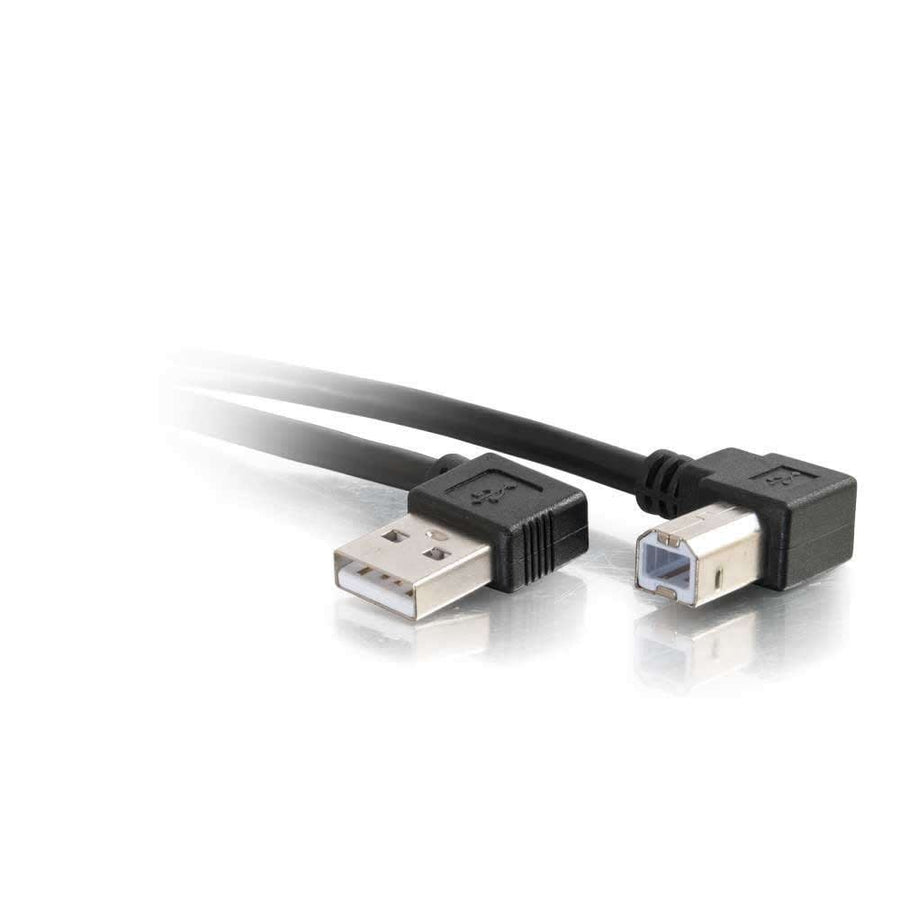

9.8ft (3m) USB 2.0 Right Angle A/B Cable - Black
9.8 ft (3 m) USB 2.0 A to B cable with right-angle connectors for peripheral connectivity
The C2G CG28111 is a 9.8 ft (3 m) USB 2.0 cable designed for easy integration with various peripherals such as printers, modems, mice, and keyboards. This A/B cable features right-angle connectors, making it an ideal solution for compact or portable devices where space is limited. It supports high-speed USB 2.0 data transfer rates up to 480 MBPS, while remaining backwards compatible with USB 1.1 (12 Mbps) and USB 1.0 (1.5 Mbps) standards. The cable is constructed with a PVC jacket and utilizes twisted pair construction combined with foil and braid shielding to reduce EMI/RFI interference and crosstalk. This design ensures high-speed, error-free data transmission in bidirectional signals. Built for reliability, it operates across a temperature range of -4° to 176°F (-20° to 80°C) and is compatible with both PC and Mac systems.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Bend Radius | 1.73 in (44 mm) |
| Cable Diameter | 0.17 in (4.4 mm) |
| Cable Length | 9.8 ft (3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.2 lbs (0.1 kg) |
All other specifications 18
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-B Male(1) USB-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120281115 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Questions about this part
Will the CG28111 work with my Mac or PC?
Yes, this USB 2.0 cable is compatible with both PC and Mac systems for connecting various peripherals.
What is the maximum data transfer speed for the CG28111?
This cable supports data transfer rates up to 480 MBPS for high-speed USB 2.0 devices.
Can this cable be used with older USB devices?
Yes, it is backwards compatible with full-speed USB 1.1 (12 Mbps) and low-speed USB 1.0 (1.5 Mbps) devices.
What is the connector type for this USB cable?
The CG28111 features one USB-A Male connector and one USB-B Male connector in a right-angle form factor.
What are the environmental operating limits for this cable?
The cable is designed to operate in humidity levels between 20% and 80% RH (Non-Condensing) within a temperature range of -4° to 176°F (-20° to 80°C).
