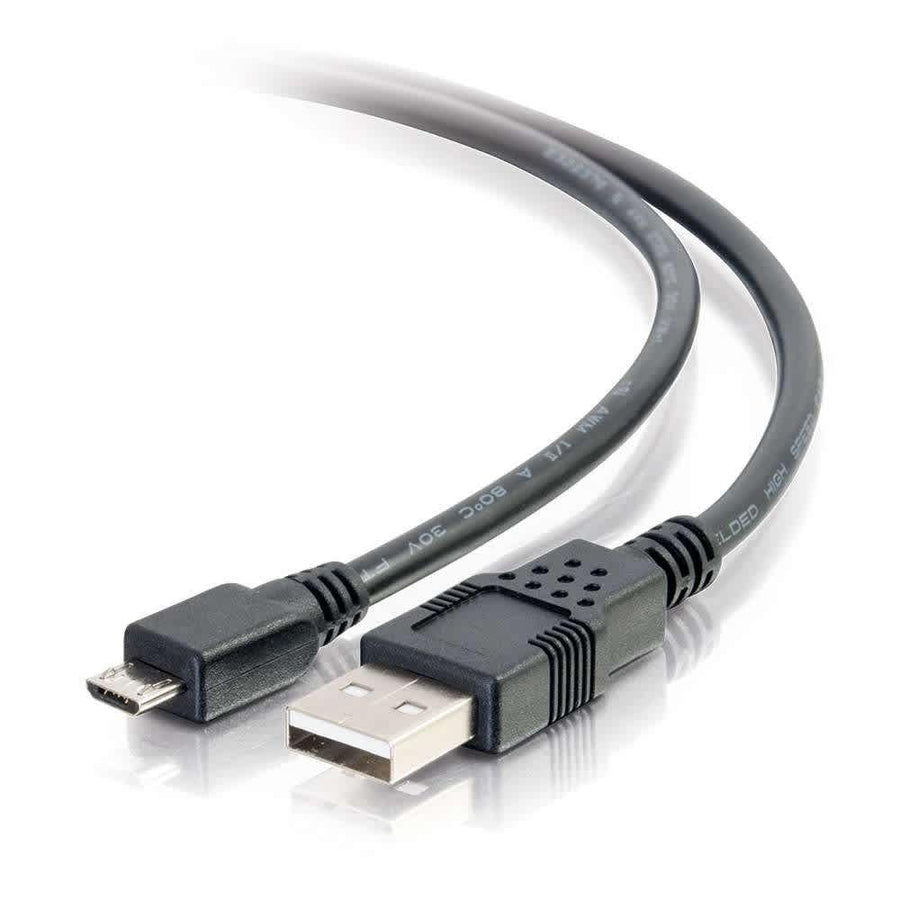

9.8ft (3m) USB 2.0 A to Micro-B Cable M/M - Black
USB 2.0 A to Micro-B cable, 9.8 ft (3 m) length, supports 480 Mbps data transfer
The CG27366 is a 9.8 ft (3 m) USB 2.0 A to Micro-B male-to-male cable designed for reliable connectivity between a host and peripheral. This cable supports bidirectional signal transmission, making it suitable for both charging Android mobile devices and high-speed data transfers. It achieves data transfer rates up to 480 Mbps, which is standard for USB 2.0 technology. The cable features a PVC jacket and a 0.19 in (4.7 mm) diameter, with a minimum bend radius of 1.85 in (47 mm). Built for various environments, it operates in temperatures ranging from -4°F to 176°F (-20°C to 80°C) and maintains performance in humidity levels from 20% to 80% RH (non-condensing). This cable is an essential replacement or spare for smartphones, tablets, and various PC peripherals requiring a Micro-B connection.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 9.8 ft (3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.32 lbs (0.2 kg) |
All other specifications 19
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 28 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB Micro-B Male(1) USB Micro-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120273660 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
What is the maximum data transfer speed of the CG27366 cable?
The CG27366 supports USB 2.0 technology, providing data transfer rates up to 480 Mbps.
Can this cable be used for charging Android devices?
Yes, this USB 2.0 A to Micro-B cable supports bidirectional signal transmission, allowing it to charge Android phones and tablets while transferring data.
What is the maximum operating temperature for this cable?
This cable is rated to operate in temperatures as high as 176°F (80°C).
What is the minimum bend radius for installation?
The minimum bend radius for the CG27366 is 1.85 in (47 mm).
