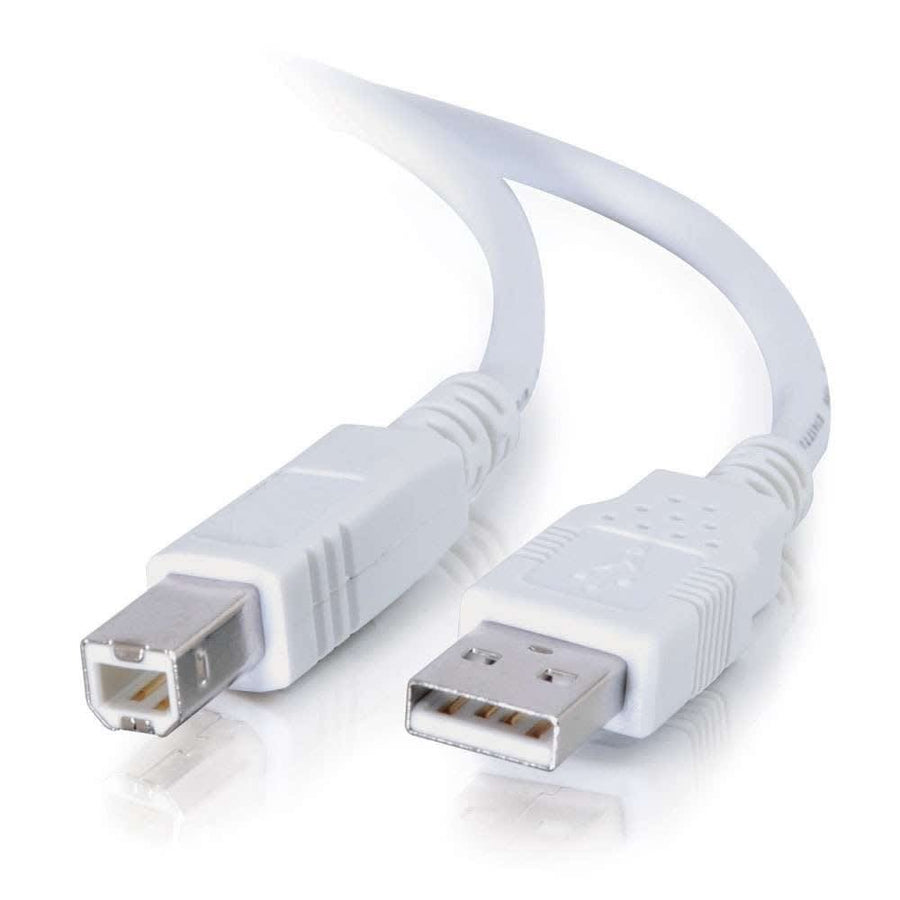

9.8ft (3m) USB 2.0 A/B Cable - White
White USB 2.0 A to B cable, 9.8 ft (3 m) length, supporting 480 MBPS bidirectional data transfer
The CG13400 is a 9.8 ft (3 m) USB 2.0 A/B cable designed to provide a reliable connection between host computers and USB-B peripherals. This white cable is intended for professional AV and IT installations, providing stable connectivity for equipment such as printers, scanners, and USB hubs. It features a 24 AWG wire gauge and a PVC jacket with a 0.19 in (4.7 mm) cable diameter. To maintain signal integrity in environments with high electromagnetic interference, the cable is constructed with both foil and braid shielding and utilizes twisted-pair construction to reduce crosstalk. It supports bidirectional signal transmission and data transfer rates up to 480 MBPS. This cable is compatible with both PC and Mac systems and operates within a temperature range of -4° to 176°F (-20°C to 80°C). For projects requiring TAA compliance, please note that this specific SKU is not TAA compliant; refer to C2G68000, C2G68001, C2G68002, or C2G68003 for compliant alternatives.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Amps | 100 mA |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 9.8 ft (3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.28 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
All other specifications 19
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Type | USB |
| Color | White |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-B Male(1) USB-B Male |
| Federal Ops Country of Origin | Indonesia |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120134008 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
6.6ft (2m) USB 2.0 A/B Cable - White
CG13172$6.99
3.3ft (1m) USB 2.0 A/B Cable - White
CG13171$5.99
Questions about this part
Will the CG13400 work with my printer or scanner?
Yes, this USB 2.0 cable connects computers to USB-B peripherals including printers, scanners, and USB hubs at speeds up to 480 MBPS.
Is this CG13400 cable TAA compliant?
No, this specific model is not TAA compliant. For TAA-compliant versions, look for SKUs C2G68000, C2G68001, C2G68002, or C2G68003.
What is the maximum data transfer rate for this cable?
The CG13400 supports USB 2.0 technology with a maximum data transfer rate of 480 MBPS via bidirectional signal transmission.
What are the operating temperature limits for this cable?
This cable is rated for operation in temperatures ranging from -4°F (-20°C) to 176°F (80°C).
Are there different lengths available for this USB A/B cable?
Yes, this series includes other lengths such as the CG13171 (3.3ft / 1m) and CG13172 (6.6ft / 2m).
