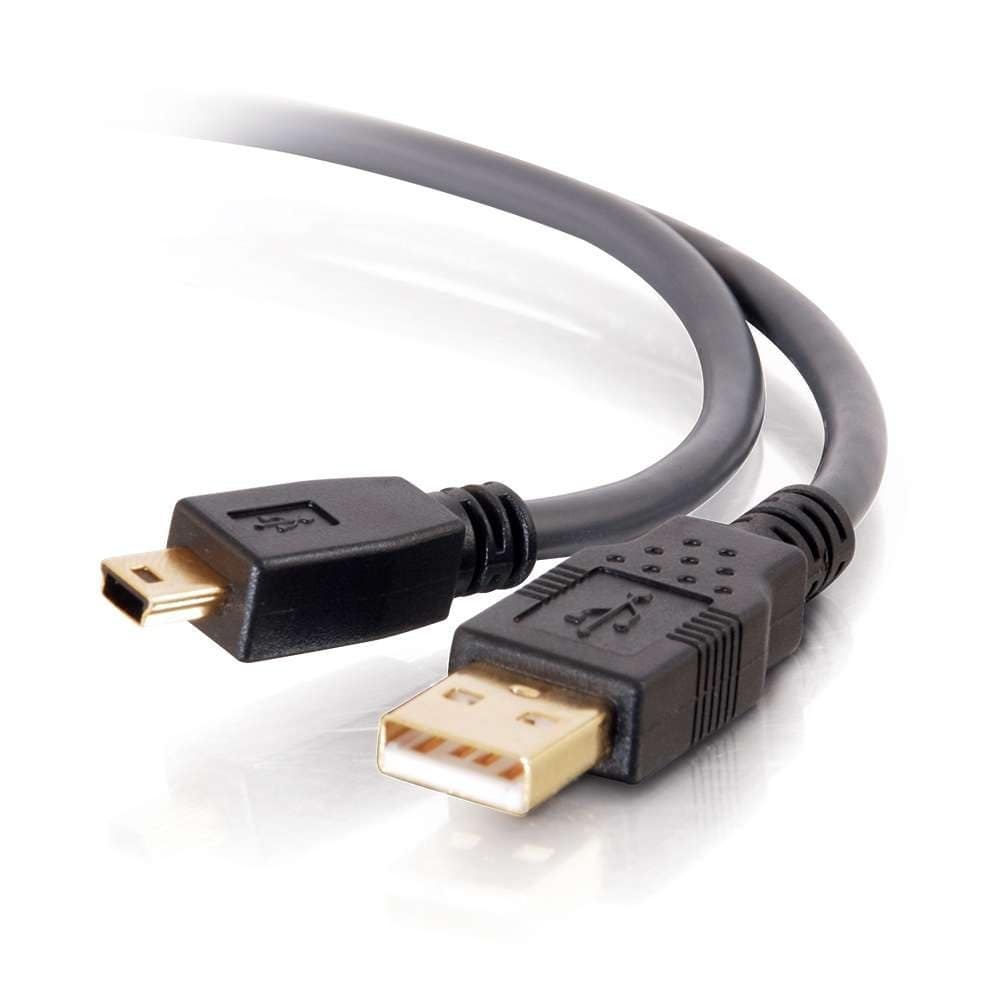

9.8ft (3m) Ultima™ USB 2.0 A to Mini-B Cable
USB 2.0 A to Mini-B cable, 9.8 ft (3 m) length, 480 Mbps data transfer rate, featuring 24k gold-plated connectors
The CG29652 is a 9.8 ft (3 m) Ultima™ USB 2.0 A to Mini-B cable designed to provide high-speed data transfer and reliable power to peripheral devices. This cable is backwards compliant with full-speed USB 1.1 (12 Mbps) and low-speed USB 1.0 (1.5 Mbps) devices. It features a 480 Mbps data transfer rate and utilizes bidirectional signal transmission. The construction includes two 24 AWG and two 28 AWG heavy-duty wires to provide proper current to connected USB devices. To ensure a noise-free connection, the cable incorporates dual foil and braid shielding alongside twisted pair construction to reduce EMI/RFI interference and crosstalk. The molded connectors feature 24k gold plating to provide maximum corrosion resistance, while the metal connector shield helps meet FCC requirements for EMI/RFI interference. The ultra-flexible PVC jacket is designed for easy installation in tight spaces, with a minimum bend radius of 1.85 in (47 mm).
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 1.85 in (47 mm) |
| Cable Length | 9.8 ft (3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.31 lbs (0.1 kg) |
| Signal Transmission | Bidirectional |
| Storage Humidity Max | 80% RH (Non-Condensing) |
All other specifications 16
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB Mini-B Male(1) USB Mini-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120296522 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Questions about this part
Will the CG29652 work with my PC or Mac?
Yes, this cable is compatible with both PC and Mac systems requiring a USB Mini-B connection.
What is the maximum data transfer speed for this cable?
This Ultima™ cable supports USB 2.0 high-speed data transfer up to 480 MBPS.
How long is the CG29652 cable?
The cable length is 9.8 ft (3 m). A longer 16.4 ft (5 m) version is also available as part number CG29653.
What kind of shielding is used to prevent interference?
The cable uses dual foil and braid shielding along with twisted pair construction to reduce crosstalk and EMI/RFI interference.
Is this cable suitable for environments with high humidity?
The cable is rated for an operating humidity range of 20% to 80% RH (non-condensing) and a temperature range of -4°F to 176°F (-20°C to 80°C).
