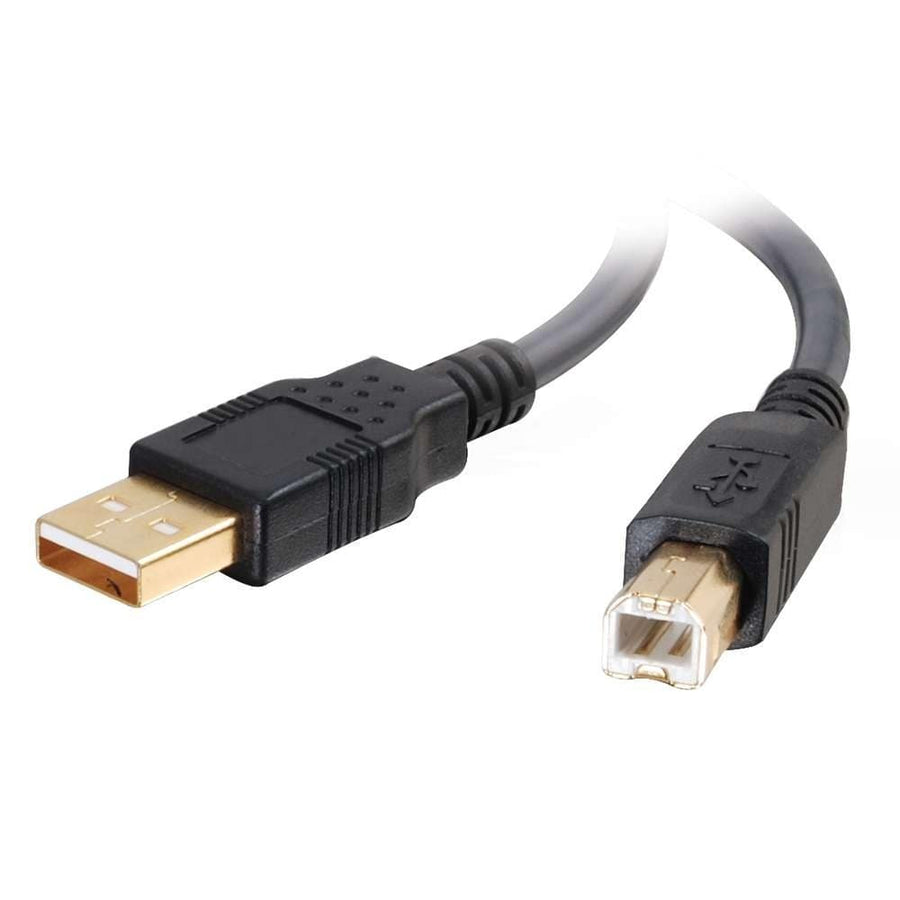

9.8ft (3m) Ultima™ USB 2.0 A/B Cable
9.8ft (3m) USB 2.0 A/B cable with 24 AWG power wires and 480 Mbps data transfer for peripherals
The CG45003 is a 9.8ft (3m) Ultima USB 2.0 A/B Cable designed for high-performance connectivity between computers and peripherals such as printers, modems, mice, and keyboards. This cable supports data transfer rates of 480 MBPS and is backward compatible with USB 1.1 (12 Mbps) and USB 1.0 (1.5 Mbps) speeds. It features a bidirectional signal transmission and 24 AWG heavy-duty power wires to ensure the proper current is delivered to connected USB devices. To maintain signal integrity, the cable utilizes twisted pair construction and dual foil and braid shielding to reduce crosstalk and EMI/RFI interference. The molded connectors are designed for easy gripping and include a metal connector shield to help meet FCC requirements for interference. Additionally, the 24k gold-plated connectors provide corrosion resistance for reliable, error-free data transfer. This PC and Mac compatible cable features a black PVC jacket with a 0.19 in (4.7 mm) diameter and an ultra-flexible build for easier installation in tight spaces.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Bend Radius | 1.85 in (47 mm) |
| Cable Diameter | 0.19 in (4.7 mm) |
| Cable Length | 9.8 ft (3 m) |
| Operating Humidity Max | 80% RH (Non-Condensing) |
| Operating Humidity Min | 20% RH (Non-Condensing) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shipping Weight | 0.46 lbs (0.2 kg) |
| Signal Transmission | Bidirectional |
All other specifications 18
| Storage Humidity Max | 80% RH (Non-Condensing) |
| Storage Humidity Min | 20% RH (Non-Condensing) |
| Storage Temperature | Negative 4 to 176 F |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
| Wire Gauge | 24 |
| Cable Type | USB |
| Color | Black |
| Connector 1 | (1) USB-A Male(1) USB-A Male |
| Connector 2 | (1) USB-B Male(1) USB-B Male |
| Product Type | Cable |
| TAA Compliant | No |
| Technology Specifications | USB 2.0 |
| UPC | 757120450030 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 480 MBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
6in Cable Tie Multipack - 100 Pack - Black
CG43037$14.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
16.4ft (5m) Ultima™ USB 2.0 A/B Cable
CG29144$22.99
6.6ft (2m) Ultima™ USB 2.0 A/B Cable
CG29141$15.99
Questions about this part
Will the CG45003 work with my Mac and PC?
Yes, this Ultima USB 2.0 cable is compatible with both PC and Mac systems.
What is the maximum data transfer rate for this cable?
The CG45003 supports USB 2.0 high-speed data transfer at 480 MBPS.
Does this cable support older USB versions?
Yes, it is backward compatible with full-speed USB 1.1 (12 Mbps) and low-speed USB 1.0 (1.5 Mbps) devices.
What accessories are recommended for cable management?
For organized installation, you can use CG29854 hook-and-loop wraps or CG43053 self-adhesive cable clamps.
Is there a different length available in the Ultima series?
Yes, the Ultima series also offers the CG29144 at 16.4ft (5m) and the CG29141 at 6.6ft (2m).
