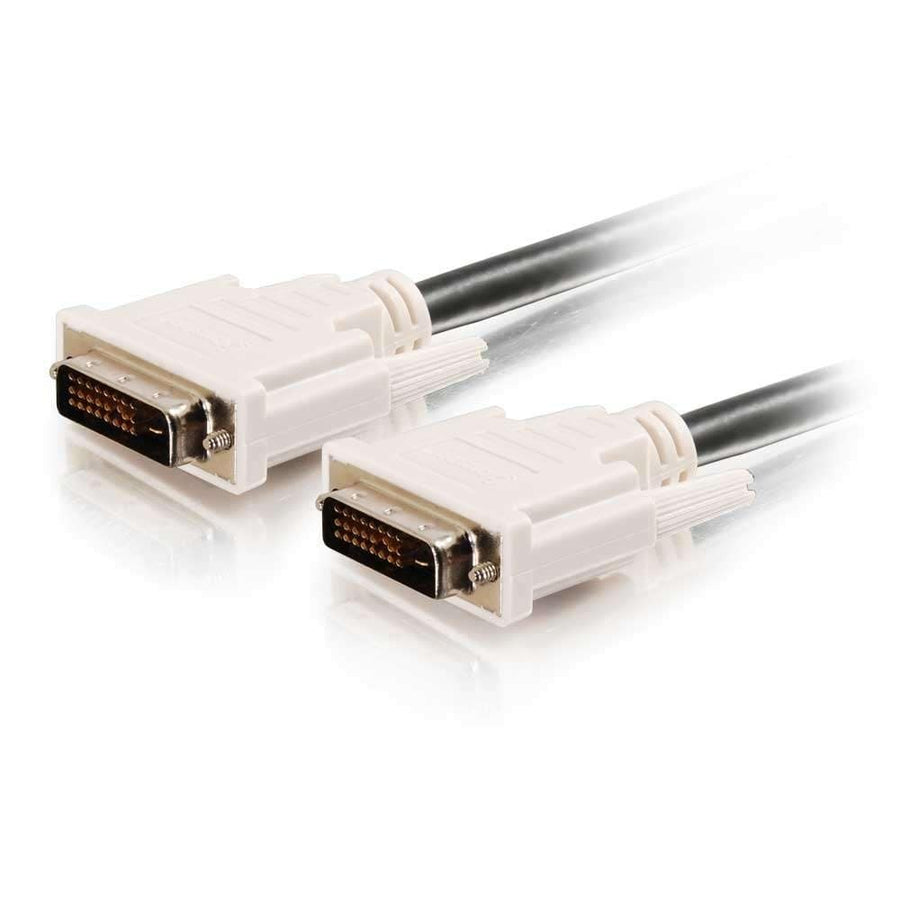

9.8ft (3m) DVI-D™ M/M Dual Link Digital Video Cable
10 ft DVI-D Dual Link Male to Male digital video cable supporting resolutions up to 2560x1600 pixels
The C2G CG26942 is a 10 ft (3.1 m) DVI-D Dual Link Male to Male digital video cable designed to connect a PC to digital displays or projectors. This precision-engineered cable is fully compliant with the DVI standard defined by the Digital Display Working Group (DDWG). It utilizes a 24-pin configuration to provide high-speed digital video transmission with rates up to 9.9 Gbps. To ensure error-free transmission and minimize crosstalk, the cable features 28 AWG copper conductors that are individually insulated in foam-polypropylene. This dual link configuration provides the necessary bandwidth for high-resolution output, specifically supporting resolutions up to 2560x1600 pixels. This SKU is a 10 ft (3.1 m) version within a series of available lengths.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Cable Length | 10 ft (3.1 m) |
| Shipping Weight | 0.75 lbs (0.3 kg) |
| Cable Type | DVI |
| Connector 1 | (1) DVI-D Dual Link Male |
| Connector 2 | (1) DVI-D Dual Link Male |
| UPC | 757120269427 |
| Certifications | NDAA 889Prop 65REACHRoHSTSCA |
| Warranty | Lifetime |
| Cable Diameter | 7.0 mm |
| Color | Black |
Resources
Questions about this part
Will this DVI cable support analog video signals?
No, this cable only supports digital video signals and does not support analog video.
What is the maximum resolution supported by the CG26942?
This DVI-D dual link cable provides the bandwidth required for resolutions up to 2560x1600 pixels.
Is there a different length available for this DVI-D cable?
Yes, this SKU is a 10 ft (3.1 m) version, but the series is available in other lengths including 3.3 ft, 6.6 ft, and 16.4 ft.
What type of connection does the CG26942 use?
It features (1) DVI-D Dual Link Male connector on each end for a total of 24 pins.
What is the bandwidth capacity of this digital video cable?
The cable is designed for high-speed digital video transmission with transfer rates up to 9.9 Gbps.
