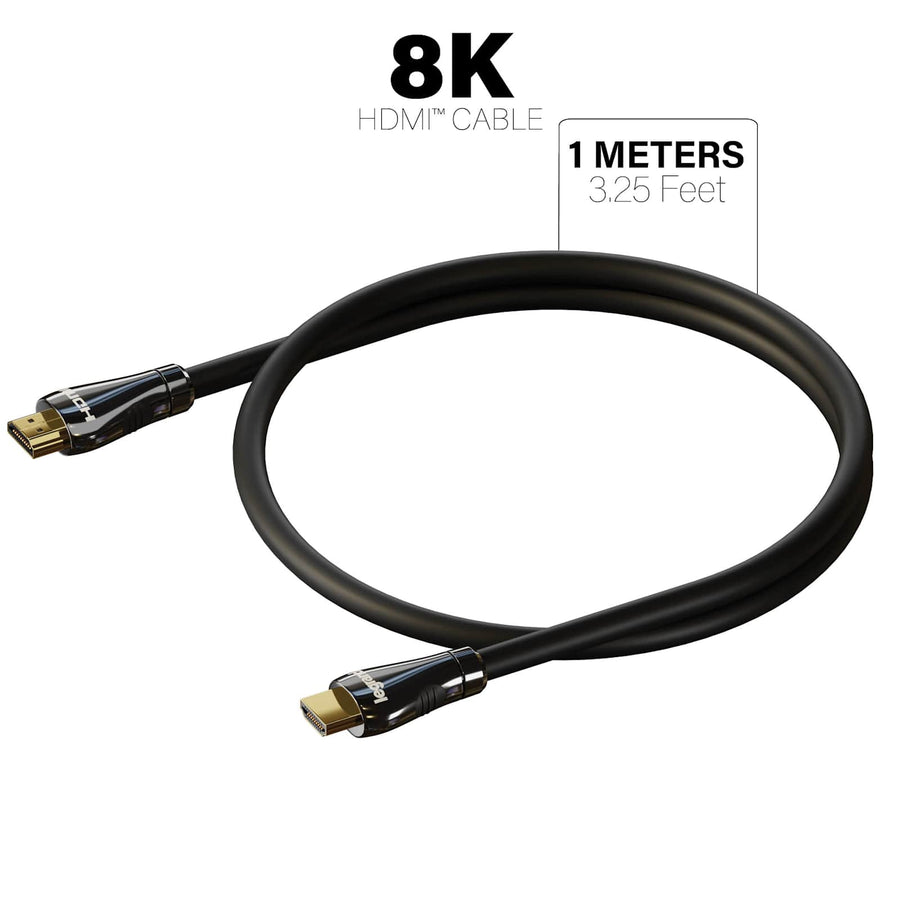

8K Ultra High Speed HDMI™ Cable 1-meter
Ultra High Speed HDMI cable supporting 8K at 60Hz and 4K at 120Hz, CL3 and FT4 rated for in-wall installation
The On-Q AC8K1MBK is an Ultra High Speed HDMI cable designed for high-bandwidth video and audio applications. This 3.28 ft (1 m) cable supports a data transfer rate of 48 GBPS, making it capable of driving 8K resolution at 60Hz and 4K resolution at 120Hz. It is engineered with gold plated connectors to provide high-level signal conductivity and resist corrosion. For installation stability, the Sure Grip connectors offer a firm grip to prevent cable damage, while enhanced retention clips ensure the cable remains firmly in place. This cable is rated CL3 and FT4, allowing for safe in-wall installation. Additionally, it supports Enhanced Audio Return Channel (eARC) for high-bitrate audio formats, including DTS:X®, Dolby Atmos®, DTS-HD Master Audio™, and Dolby TrueHD.
No documents are published for this part. Ask us for the paperwork and we will get it from the manufacturer.Key features
Specifications
Main specifications 8
| Cable Length | 3.28 ft (1 m) |
| Length | 3.28 ft (1 m) |
| Cable Type | Ultra High Speed HDMI |
| Color | Black |
| Conductor Material | Gold |
| Connector Type | HDMI |
| Finish | Matte |
| Jacket Application | CL3 RatedFT4 Rated |
All other specifications 6
| Jacket Rating | CL3 RatedFT4 Rated |
| Material | PVC |
| Video Input Support | HDMI |
| Video Resolution | 8K @ 60Hz |
| Certifications | HDMI |
| Data Transfer Rate | 48 GBPS |
Questions about this part
Will the AC8K1MBK support 8K video output?
Yes, this Ultra High Speed HDMI cable is designed to support 8K @ 60Hz and 4K @ 120Hz resolutions with a 48 GBPS data transfer rate.
Is this HDMI cable rated for in-wall installation?
Yes, the AC8K1MBK carries both CL3 and FT4 ratings, making it suitable for in-wall applications.
Does this cable support eARC and high-end audio formats?
Yes, it supports Enhanced Audio Return Channel (eARC) and high-bitrate formats like Dolby Atmos® and DTS:X®.
What is the length of the AC8K1MBK cable?
The AC8K1MBK is a 3.28 ft (1 m) cable designed for short-run connections.
