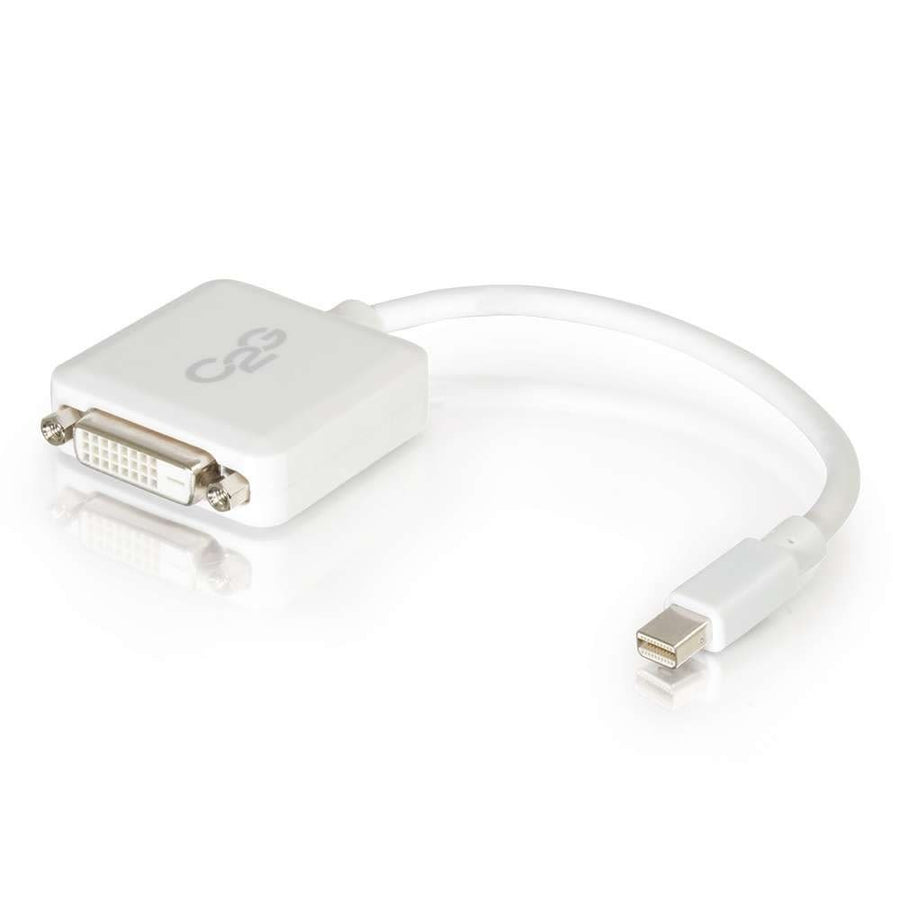

8in Mini DisplayPort™ Male to Single Link DVI-D Female Adapter Converter - White
Active Mini DisplayPort™ Male to Single Link DVI-D Female adapter supporting up to 1920x1200 resolution in a white finish
The C2G CG54312 is an active adapter converter designed to bridge the connection between a Mini DisplayPort or Thunderbolt 2 output and a monitor that accepts a DVI-D input. This white adapter is an ideal solution for small laptops, tablets, or Microsoft® Surface® products, including the Surface Pro 6 and Surface Laptop 2, allowing them to interface with standard DVI-D displays. Because this is an active device, it carries a digital video signal capable of supporting resolutions up to 1920x1200 (WUXGA) and 1080p. The 0.67 ft (0.2 m) integrated cable features a 0.2 in (5.2 mm) diameter with a 2.01 in (51 mm) bend radius. To complete the video connection, a separate DVI-D cable must be used between this adapter and the display. This converter supports a data transfer rate of 18 GBPS and is built with a PVC jacket.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.2 in (5.2 mm) |
| Cable Length | 0.67 ft (0.2 m) |
| Shipping Weight | 0.1 lbs (0.1 kg) |
| Voltage | 30 V |
| Wire Gauge | 32 |
| Active/Passive | Active |
| Color | White |
All other specifications 14
| Connector 1 | (1) Mini DisplayPort Male(1) Mini DisplayPort Male |
| Connector 2 | (1) DVI-D Single Link Female(1) DVI-D Single Link Female |
| Jacket Rating | Standard / Non-Rated |
| Number of Ports | 1 |
| Product Type | Active DeviceAdapterConverter |
| TAA Compliant | No |
| UPC | 757120543121 |
| Video Input Support | Mini DisplayPort |
| Video Output Support | DVI-D |
| Video Resolution | 1080pWUXGA (1920x1200) |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
Will the CG54312 work with my Microsoft Surface device?
Yes, this adapter is compatible with Microsoft® Surface® products, including the Surface Pro 6 and Surface Laptop 2, via the Mini DisplayPort/Thunderbolt 2 port.
What resolution can this adapter support?
This is an active converter that supports video resolutions up to 1920x1200 (WUXGA) and 1080p.
Do I need an additional cable to use this adapter?
Yes, you must use a DVI-D cable to complete the connection between this adapter and your monitor.
Is this a passive or active adapter?
The CG54312 is an active device, meaning it actively converts the signal from Mini DisplayPort to DVI-D.
What is the difference between the CG54312 and the black version?
The CG54312 is the white finish variant of this adapter series; a black version is also available.
