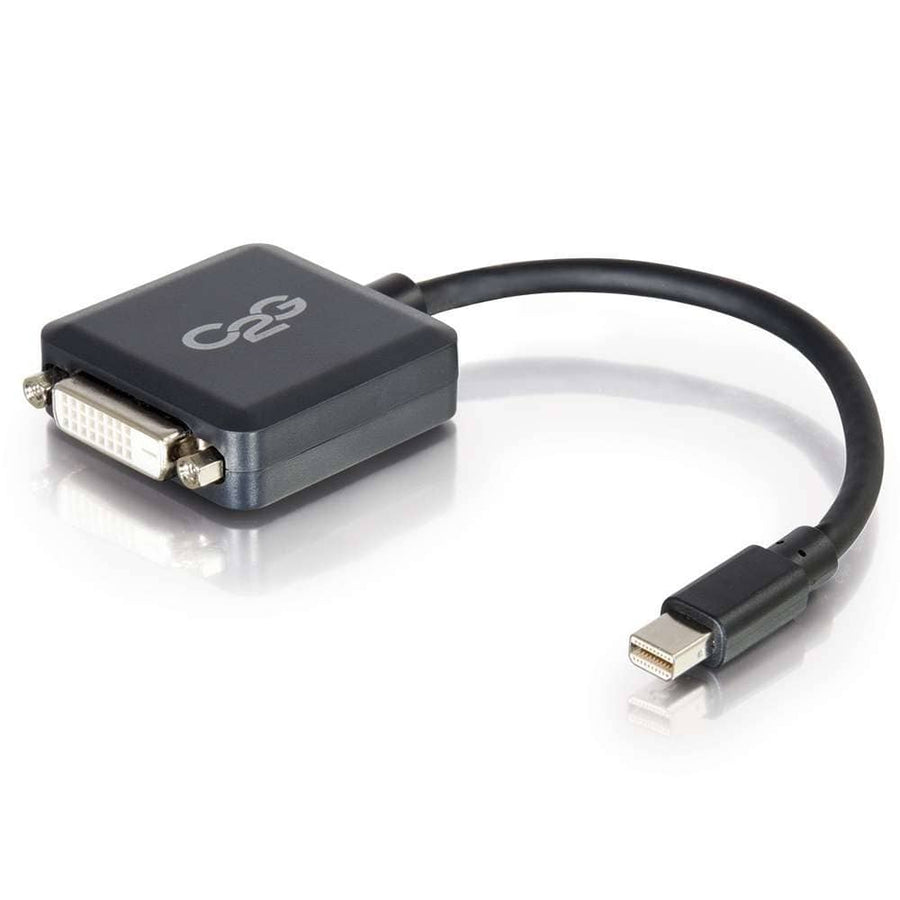

8in Mini DisplayPort™ Male to Single Link DVI-D Female Adapter Converter - Black
Active Mini DisplayPort male to DVI-D Single Link female adapter supporting up to 1920x1200 resolution
The CG54311 is an active Mini DisplayPort male to DVI-D Single Link female adapter converter designed to bridge the connection between modern computing devices and digital video displays. This converter allows users to connect a laptop or tablet featuring a Mini DisplayPort or Thunderbolt 2 output to a monitor that utilizes a DVI-D input. By carrying a digital video signal, this device supports video resolutions up to 1920x1200 (WUXGA) and 1080p. This specific 0.67 ft (0.2 m) adapter is an essential accessory for Microsoft® Surface® Pro 6, Surface Laptop 2, and other leading laptop models. It provides a compact solution for high-performance applications requiring a reliable signal path. To complete a full video setup, this adapter must be used in conjunction with a DVI-D cable. This black-jacketed PVC adapter features a 0.2 in (5.2 mm) cable diameter and a bend radius of 2.01 in (51 mm), making it suitable for tight workspaces.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 2.01 in (51 mm) |
| Cable Diameter | 0.2 in (5.2 mm) |
| Cable Length | 0.67 ft (0.2 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.09 lbs (0 kg) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Voltage | 30 V |
All other specifications 17
| Wire Gauge | 32 |
| Active/Passive | Active |
| Color | Black |
| Connector 1 | (1) Mini DisplayPort Male(1) Mini DisplayPort Male |
| Connector 2 | (1) DVI-D Single Link Female(1) DVI-D Single Link Female |
| Jacket Rating | Standard / Non-Rated |
| Number of Ports | 1 |
| Product Type | Active DeviceAdapterConverter |
| TAA Compliant | No |
| UPC | 757120543114 |
| Video Input Support | Mini DisplayPort |
| Video Output Support | DVI-D |
| Video Resolution | 1080pWUXGA (1920x1200) |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 18 GBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
Will this adapter work with my Microsoft Surface device?
Yes, this converter is compatible with Microsoft® Surface® Pro 6, Surface Laptop 2, and various other laptops that feature Mini DisplayPort or Thunderbolt 2 outputs.
What resolution can I achieve with the CG54311?
This active adapter supports video resolutions up to 1920x1200 (WUXGA) and 1080p when connected to a compatible DVI-D monitor.
Do I need to buy anything else to complete the video connection?
This is an adapter only; you will need to provide a separate DVI-D cable to connect the adapter to your monitor for a complete solution.
Is this a passive or active adapter?
The CG54311 is an active device, which ensures the digital video signal is correctly converted from the Mini DisplayPort/Thunderbolt 2 source to the DVI-D output.
What is the difference between this and the white version?
The CG54311 is the black finish variant; a white version is also available for different aesthetic requirements.
