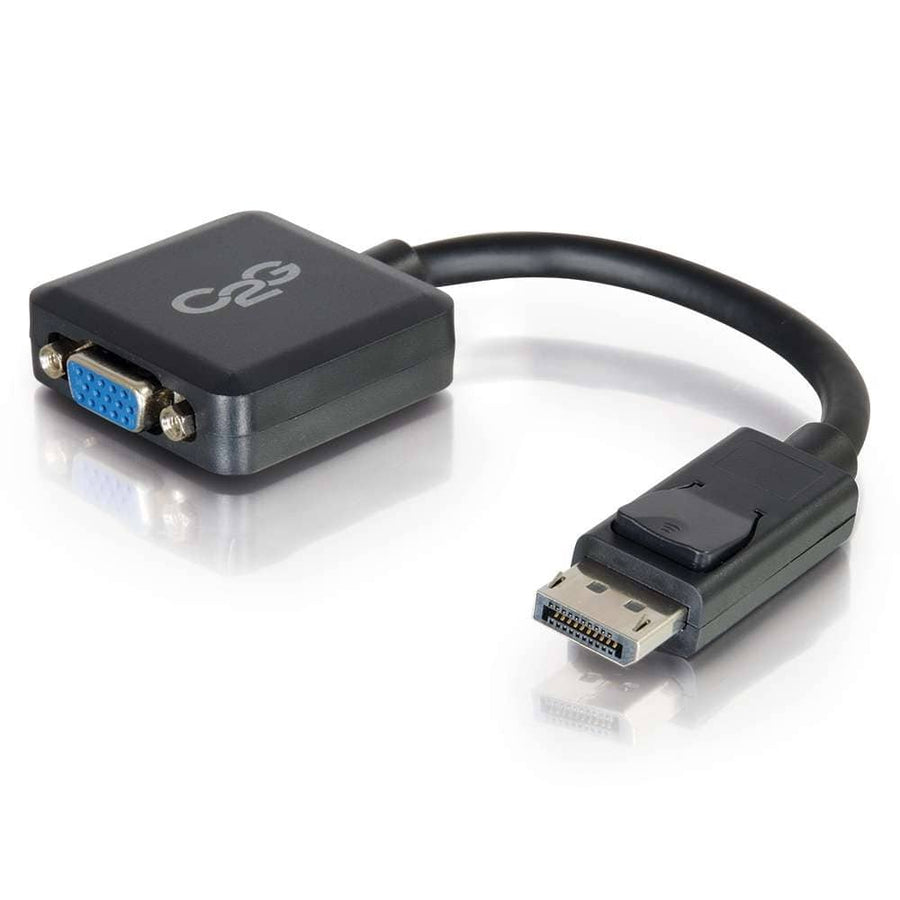

8in DisplayPort™ Male to VGA Female Active Adapter Converter - Black
Active DisplayPort Male to VGA Female adapter supporting up to 1920 x 1200 resolution for legacy monitor connectivity
The C2G CG54323 is an active adapter designed to bridge the gap between modern DisplayPort computers and legacy analog VGA equipment. By converting digital DisplayPort signals into analog VGA output, this dongle allows installers to utilize existing VGA monitors or projectors without the need for hardware replacement. The active conversion process supports video resolutions up to 1920 x 1200 (WUXGA) at 1080p, ensuring high-performance video delivery for office and home environments. This compact, portable device features a 0.67 ft (0.2 m) cable length and a 0.26 in (6.5 mm) diameter with a PVC jacket. Its dongle-style design is engineered to reduce physical strain on the computer's DisplayPort, helping to prolong the lifespan of the device's connection port. This TAA compliant adapter is a plug-and-play solution, requiring no additional software or drivers for operation. It is an efficient choice for maintaining hardware continuity in setups where legacy VGA displays are still in use.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.16 in (29.4 mm) |
| Cable Diameter | 0.26 in (6.5 mm) |
| Cable Length | 0.67 ft (0.2 m) |
| Operating Temperature | 32° to 122°F (0° to 50°C) |
| Shipping Weight | 0.12 lbs (0.1 kg) |
| Storage Temperature Max | 158 Fahrenheit (70 Celsius) |
| Storage Temperature Min | -13 Fahrenheit (-25 Celsius) |
| Voltage | 30 V |
All other specifications 18
| Wire Gauge | 30 |
| Active/Passive | Active |
| Cable Type | DisplayPortVGA |
| Color | Black |
| Connector 1 | (1) DisplayPort Male |
| Connector 2 | (1) VGA Female |
| Jacket Rating | Standard / Non-Rated |
| Number of Ports | 1 |
| Product Type | Active DeviceAdapterConverter |
| TAA Compliant | Yes |
| UPC | 757120543237 |
| Video Input Support | DisplayPort |
| Video Output Support | VGA |
| Video Resolution | 1080pWUXGA (1920x1200) |
| Certifications | CEFCCNDAA 889Prop 65REACHRoHSTAATSCA |
| Data Transfer Rate | 18 GBPS |
| Jacket Material | PVC |
| Warranty | 5 years |
Resources
Questions about this part
Will the CG54323 work with my existing VGA monitor?
Yes, this active converter allows you to connect a VGA monitor directly to a DisplayPort computer, enabling use of legacy analog displays.
What is the maximum resolution supported by this adapter?
The CG54323 supports video resolutions up to 1920 x 1200 (WUXGA) and 1080p output.
Does this adapter require any software installation?
No, this is a plug-and-play device that does not require any additional drivers or software to function.
Is this adapter TAA compliant?
Yes, the CG54323 is TAA compliant and carries CE, FCC, and RoHS certifications.
How long is the integrated cable on this adapter?
The adapter features a built-in cable length of 0.67 ft (0.2 m) with a 0.26 in (6.5 mm) diameter.
