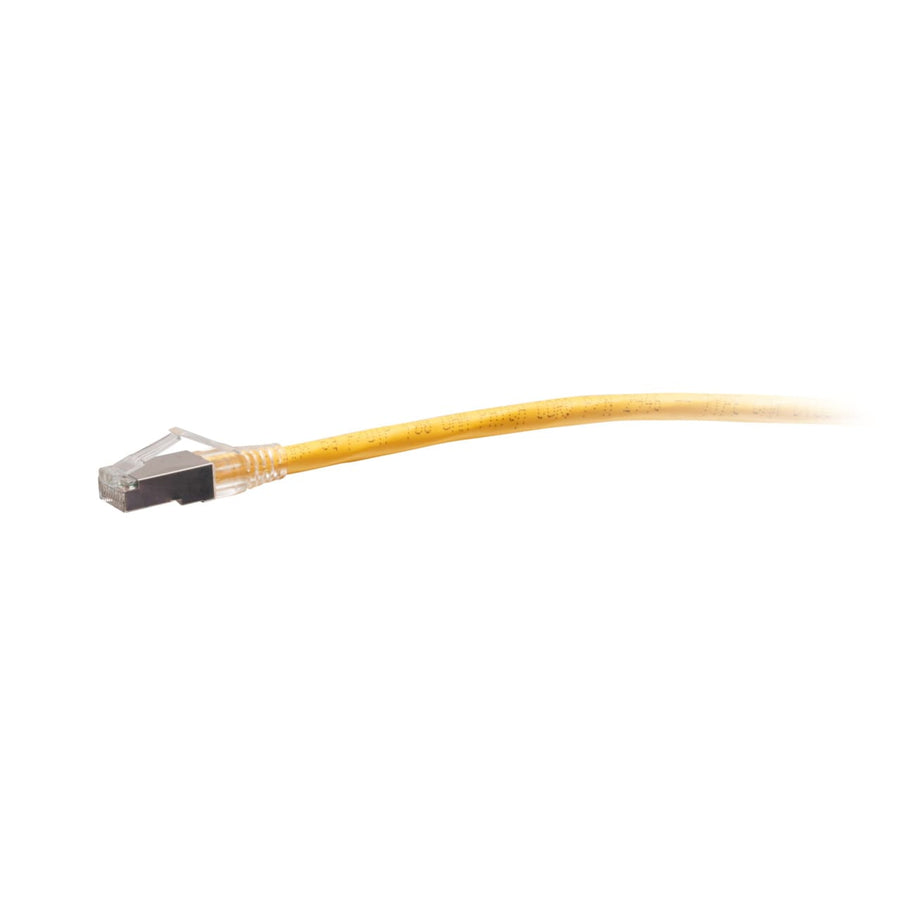

8ft (2.4m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Yellow
8ft TAA-compliant Cat6a shielded patch cable, snagless RJ45 connectors, yellow jacket, 10GbE capable
The C2G43904 is an 8ft (2.4m) TAA-compliant Cat6a snagless shielded (STP) network cable designed for high-speed 10GBase-T environments. This yellow patch cable is constructed with high-quality, made in the USA copper cabling featuring aluminum foil shielding to protect against electromagnetic interference (EMI), radio frequency interference (RFI), and alien crosstalk. It is built with 26 AWG stranded copper conductors and features 50-micron gold-plated contacts on both RJ-45 male connectors to maintain signal integrity. The snagless design protects the clips from breakage during high insertion cycles, making it suitable for switches, routers, and hubs. Rated for CMR (Riser) applications with a PVC jacket, this cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. It is suitable for bandwidth-intensive voice, data, and video distribution applications in professional environments, including government-approved facilities that require TAA compliance.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439042 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
