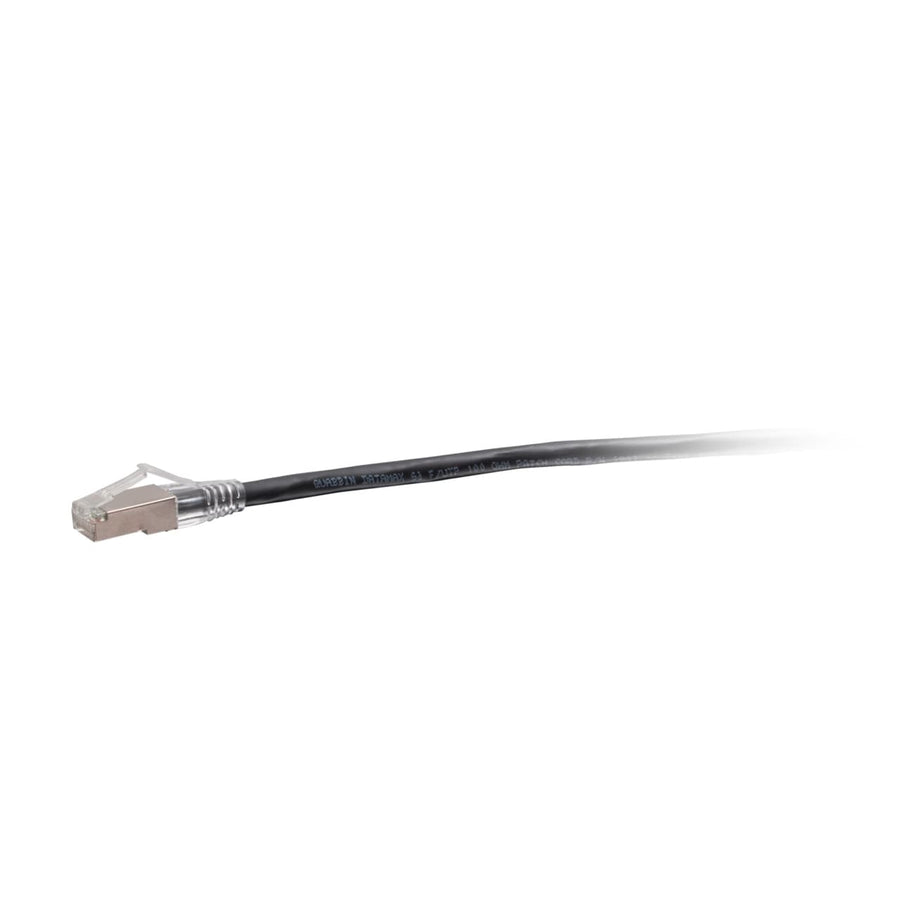

8ft (2.4m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Black
8ft TAA-compliant Cat6a STP network cable with snagless RJ45 connectors and black PVC jacket
The C2G43841 is an 8ft (2.4m) TAA-compliant Cat6a Snagless Shielded (STP) Network Cable designed to meet the stringent requirements of United States government projects and facilities. This passive cable utilizes a stranded copper conductor with an aluminum foil shield to protect 10GBase-T network connections from EMI, RFI, and alien crosstalk. It is constructed with a black PVC jacket that is CMR (Riser) rated, making it suitable for various installation environments. The snagless RJ45 connector design is engineered to protect the clips from breaking during high-frequency insertion cycles. Each connector features 50-micron gold-plated contacts to maintain signal integrity for bandwidth-intensive applications. This Cat6a patch cable is built to ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, ensuring reliable performance for high-speed switches, routers, and network adapters. It operates effectively within a temperature range of -4°F to 167°F (-20°C to 75°C) and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120438410 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
42 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP4250NA$189.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43841 TAA compliant?
Yes, this cable is TAA compliant, making it suitable for use in United States government projects and facilities.
Will this Cat6a cable support 10 Gigabit Ethernet?
Yes, it is designed for 10GBASE-T (10 Gigabit Ethernet) and is ideal for bandwidth-intensive applications like high-speed switches and routers.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Does this cable feature shielding to prevent interference?
Yes, it uses Shielded STP (Screened Twisted Pair) construction with an aluminum foil shield to counter electromagnetic and radio frequency interference.
How does the snagless design benefit the installer?
The snagless RJ45 connector protects the clips from being snapped off, which is particularly beneficial in applications involving high insertion cycles.
