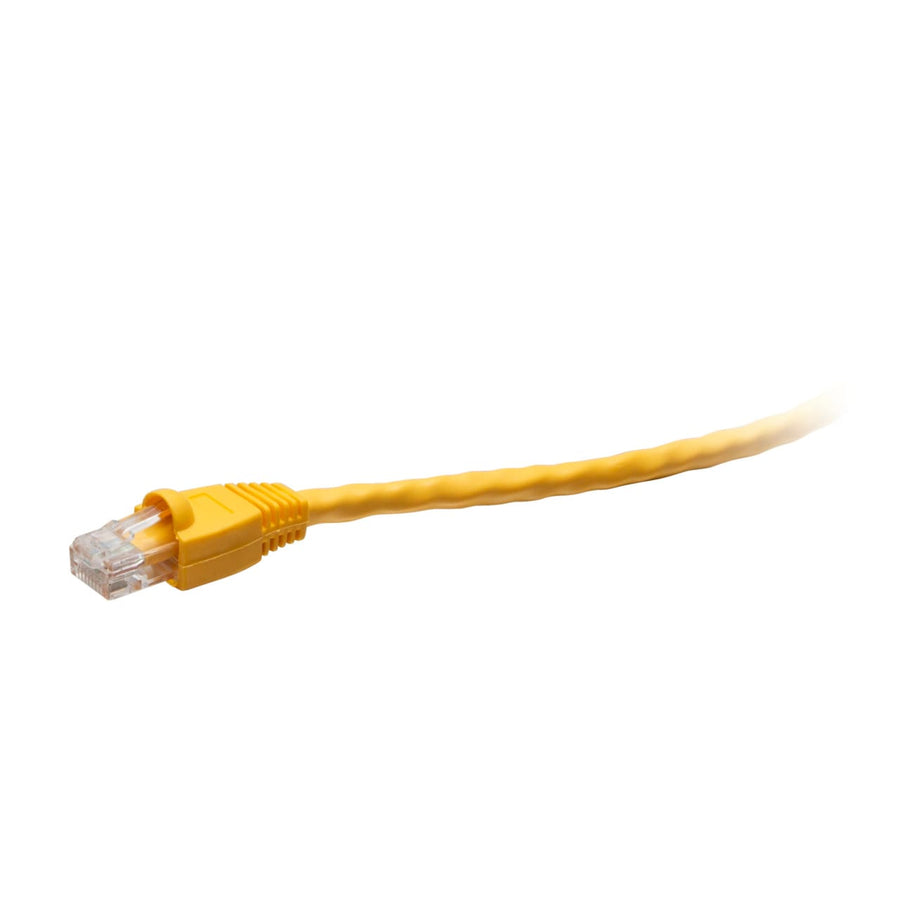

8ft (2.4m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Yellow
8ft TAA-compliant Cat6 snagless UTP network cable in yellow, featuring stranded copper conductors and CMR riser rating
The C2G43514 is an 8 ft (2.4 m) TAA-compliant Cat6 network cable designed for use in United States government projects and facilities. This unshielded (UTP) cable features a snagless RJ-45 male connector design, which uses a molded boot to protect the clips from damage and provide extra strain relief during installation. Built with high-quality, made-in-the-USA stranded copper conductors, this cable provides consistent performance for 1000BASE-T (1 Gigabit Ethernet) applications. It utilizes 24 AWG wire with 50-micron gold-plated contacts to maintain signal integrity. The cable is CMR rated with a PVC jacket, suitable for riser applications. This passive cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards and is rated for operating temperatures ranging from -4° - 167°F (-20° - 75°C). It uses a T568B wiring scheme and is ideal for connecting network adapters, hubs, switches, and routers.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435143 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43514 TAA compliant?
Yes, this is a TAA-compliant cable specifically approved for use in United States government projects and facilities.
What is the maximum performance rating for this Cat6 cable?
This cable is rated for 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
Can I use this cable in a plenum environment?
No, this cable has a CMR rating and a PVC jacket, which is intended for riser applications rather than plenum spaces.
What type of shielding does this cable use?
This is an Unshielded Twisted Pair (UTP) cable that does not require additional shielding for standard network connections.
What accessories are compatible with this network cable?
This cable can be used in conjunction with items like the CG37199 24-Port Cat6 110-Type Patch Panel or the CG37094 Two Port Keystone Wall Plate.
