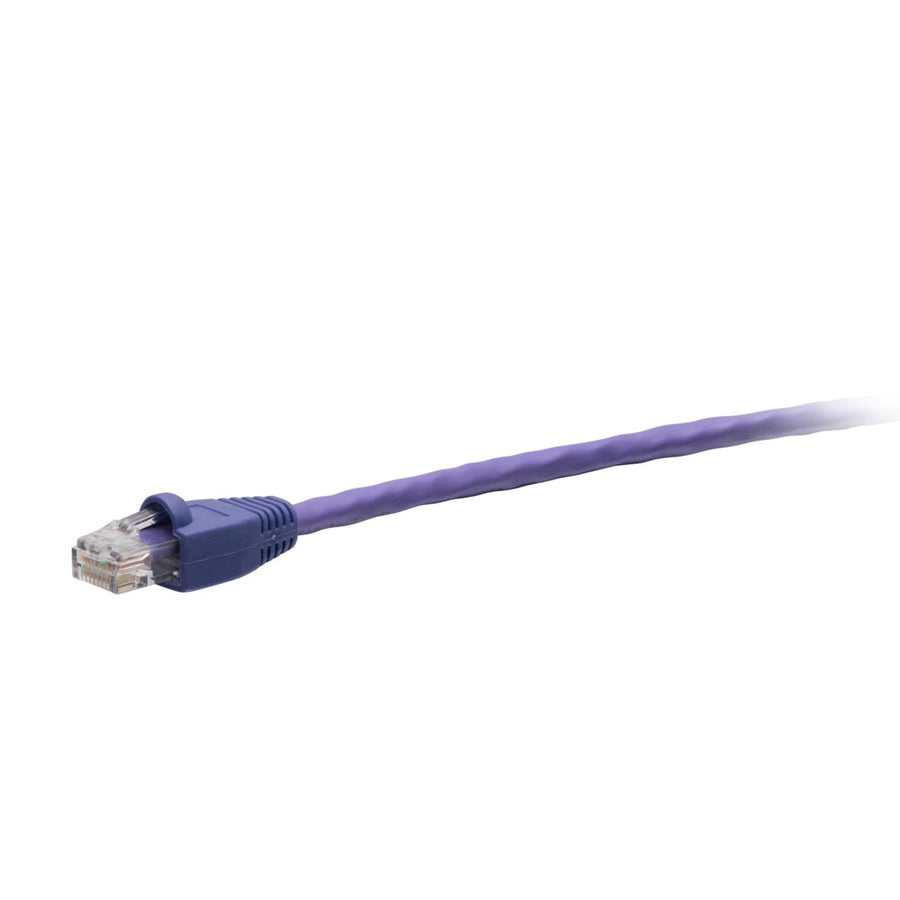

8ft (2.4m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Purple
8ft TAA-compliant Cat6 snagless UTP network cable in purple, featuring stranded copper conductors and CMR rated jacket
The C2G43556 is an 8 ft (2.4 m) TAA-compliant F-Series Cat6 snagless unshielded (UTP) network cable in purple. This passive cable is constructed with high-quality, made in the USA copper cabling, providing an enhanced 600 MHz maximum frequency for reliable performance in high-demand environments. It is designed to support various applications, including 1000BASE-T (1 Gigabit Ethernet) for hubs, switches, routers, and servers. This cable utilizes stranded copper conductors and 24 AWG wire with a 50-micron gold-plated contact on the RJ-45 male connectors to improve signal integrity. The snagless boot design protects the clips from damage during high-insertion cycles, while the CMR-rated PVC jacket is suitable for riser applications. This cable meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120435563 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43556 TAA compliant?
Yes, this C2G43556 cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum frequency and performance rating of this Cat6 cable?
This cable features an enhanced 600 MHz maximum frequency and is designed to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards.
What type of installation environment is this cable rated for?
This cable has a CMR (Riser) jacket rating, making it suitable for riser applications.
Does this cable support Gigabit Ethernet?
Yes, this Cat6 cable is designed to support 1000BASE-T (1 Gigabit Ethernet) applications.
What is the wiring scheme used for this patch cable?
The C2G43556 uses the T568B wiring scheme with RJ-45 male connectors.
