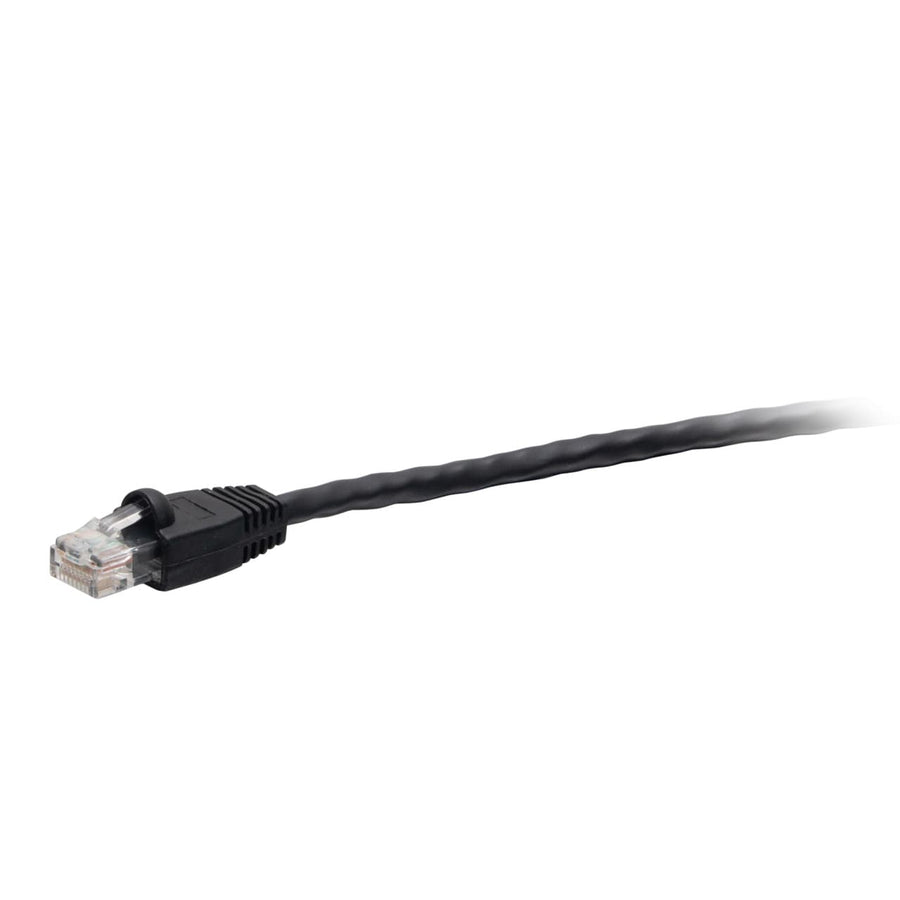

8ft (2.4m) TAA-Compliant F-Series Cat6 Snagless Unshielded (UTP) Network Cable - Black
8ft (2.4m) TAA-compliant Cat6 snagless UTP network cable, black finish, 24 AWG copper conductors
The C2G43472 is an 8 ft (2.4 m) TAA-compliant Cat6 snagless UTP network cable designed for use in United States government projects and facilities. This passive unshielded cable utilizes high-quality, made-in-the-USA stranded copper conductors with a 24 AWG wire gauge to support high-performance applications, including 1000BASE-T (1 Gigabit Ethernet). The cable features a T568B wiring scheme and is constructed with a PVC jacket that is CMR rated for riser applications. To ensure reliability in high-insertion environments, the snagless RJ45 male connectors include a molded boot that protects the clips from breaking while providing strain relief. The 50-micron gold-plated contacts help maintain signal integrity by preventing oxidation. This Cat6 cable meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, delivering a maximum frequency of 600 MHz. It is an ideal solution for connecting network adapters, hubs, switches, routers, and servers in professional installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Snagless |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120434726 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43472 TAA compliant?
Yes, this is a TAA-compliant cable approved for use in United States government projects and facilities.
What is the maximum frequency for this Cat6 cable?
The C2G43472 is rated for a 600 MHz maximum frequency, which supports 1000BASE-T Gigabit Ethernet applications.
What type of jacket rating does this cable have?
This cable features a PVC jacket with a CMR rating, making it suitable for riser applications.
Does this cable include the RJ45 connectors?
The C2G43472 features integrated snagless RJ45 male connectors on both ends to prevent clip breakage.
What standards does this cable meet?
This network cable meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
