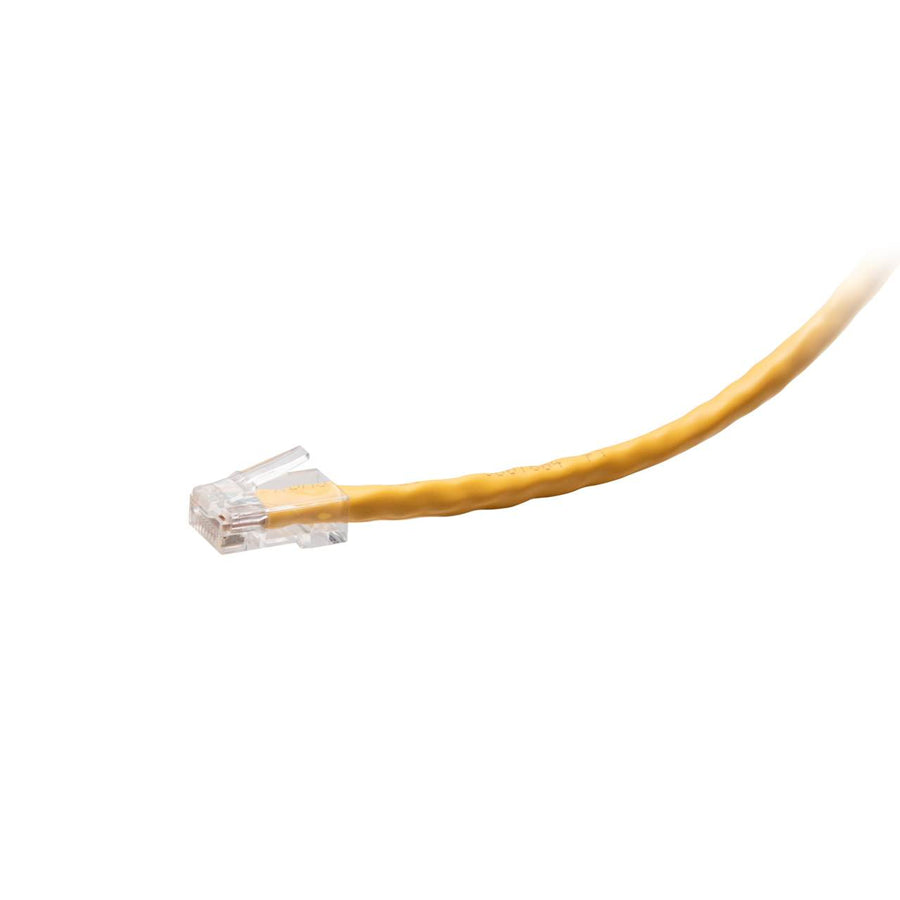

8ft (2.4m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Yellow
8ft TAA-compliant Cat6 UTP network cable, yellow finish, CMR riser rated, with RJ-45 male connectors
The C2G43655 is an 8 ft (2.4 m) TAA-compliant Cat6 unshielded twisted pair (UTP) network cable designed for professional environments. This passive cable is suitable for connecting network adapters, hubs, switches, routers, and servers. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, providing support for 1000BASE-T 1 Gigabit Ethernet applications. The cable features 24 AWG stranded copper conductors and 50-micron gold-plated contacts to assist with signal integrity. It is built with a yellow PVC jacket that is CMR rated for riser applications. This non-booted cable is part of the TAA-Compliant F-Series, which is approved for use in United States government projects and facilities. The cable maintains a 0.22 in (5.6 mm) diameter and operates within a temperature range of -4°F to 167°F (-20°C to 75°C). This yellow cable allows for easy color-coding within complex network installations.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436553 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
48-Port Cat6 110-Type Patch Panel
CG37200$327.99
24-Port Cat6 110-Type Patch Panel
CG37199$170.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
Questions about this part
Is the C2G43655 TAA compliant for government contracts?
Yes, this is a TAA-compliant cable specifically approved for use in United States government projects and facilities.
What is the maximum frequency and data rate of this Cat6 cable?
This Cat6 cable supports 1000BASE-T (1 Gigabit Ethernet) and features an enhanced 600 MHz maximum frequency.
Can I use this cable in a riser application?
Yes, this cable features a CMR rated PVC jacket designed for riser applications.
What type of connectors are used on the C2G43655?
The cable is equipped with two RJ-45 male connectors with 50-micron gold-plated contacts.
What other lengths or colors are available in the F-Series?
The F-Series is available in various colors and lengths up to 25 ft.
