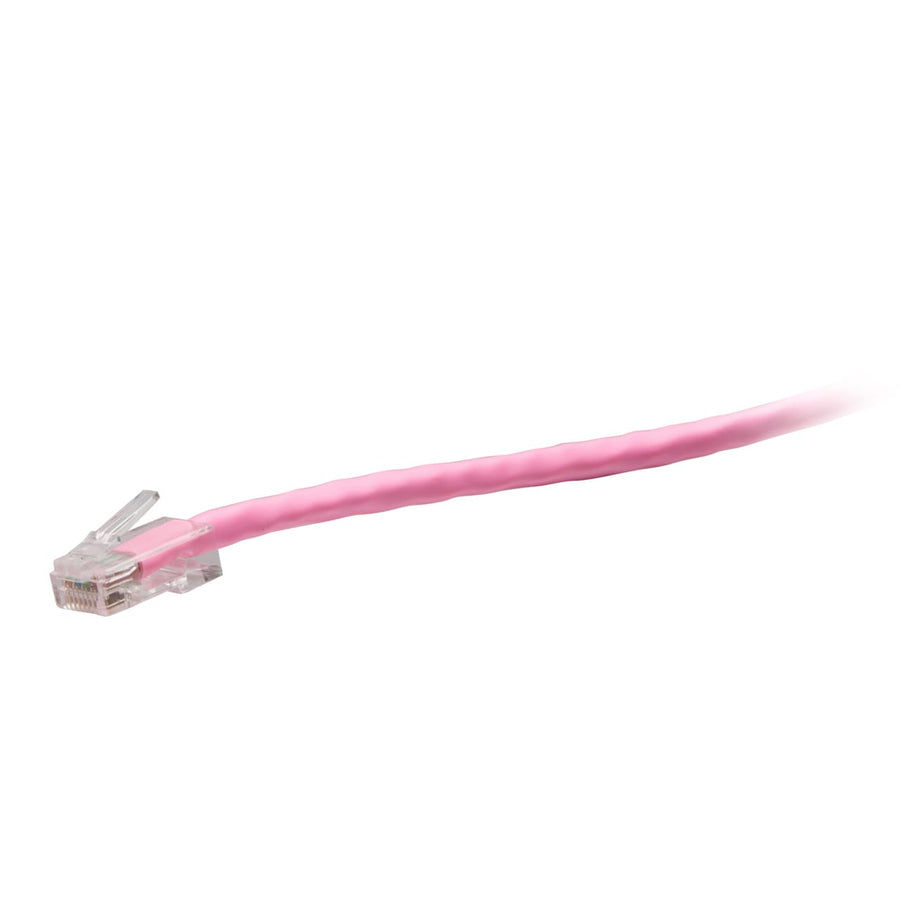

8ft (2.4m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Pink
8ft Pink Cat6 UTP unshielded network cable, TAA-compliant, with RJ-45 male connectors and CMR riser-rated jacket
The C2G43703 is an 8 ft (2.4 m) TAA-compliant Cat6 unshielded twisted pair (UTP) network cable finished in pink for easy color-coding in complex installations. This non-booted cable is constructed with high-quality, made in the USA stranded copper conductors and 50-micron gold-plated contacts to ensure signal integrity for 1000BASE-T 1 Gigabit Ethernet applications. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards, providing a maximum frequency of 600 MHz for reliable performance in professional environments. The cable features a 0.22 in (5.6 mm) diameter and a CMR rated PVC jacket suitable for riser applications. Designed for use with network adapters, hubs, switches, routers, and servers, this passive cable is TAA compliant, making it suitable for United States government projects and facilities. It utilizes a T568B wiring scheme and is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Pink |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120437031 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
