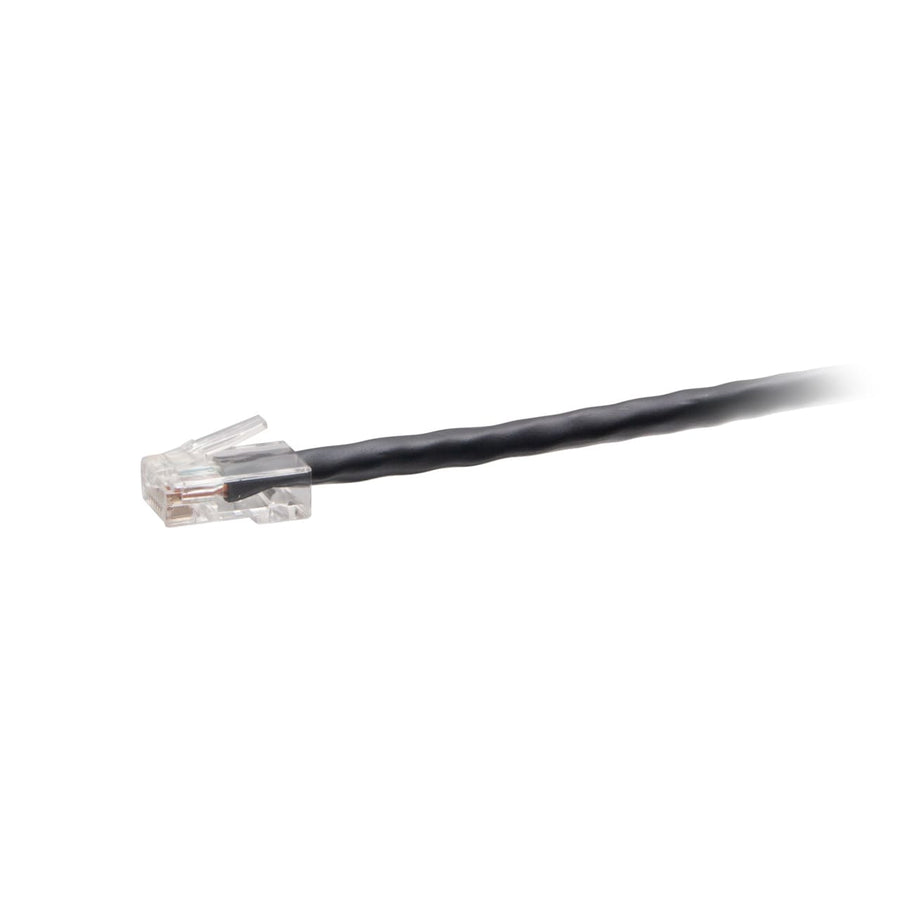

8ft (2.4m) TAA-Compliant F-Series Cat6 Non-Booted Unshielded (UTP) Network Cable - Black
8ft (2.4m) Cat6 UTP network cable, TAA-compliant, featuring black PVC jacket and 50-micron gold-plated contacts
The C2G43631 is an 8ft (2.4m) TAA-compliant Cat6 non-booted unshielded UTP network cable designed for professional infrastructure deployments. This passive cable is built with high-quality, made in the USA copper cabling, providing an enhanced 600 MHz maximum frequency to ensure consistent performance for high-bandwidth applications. It meets or exceeds ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for 1000BASE-T (1 Gigabit Ethernet) environments such as connecting network adapters, hubs, switches, routers, and servers. The cable features a black PVC jacket with a CMR riser rating, suitable for in-wall installation in residential or commercial environments. Each end is terminated with an RJ-45 male connector featuring 50-micron gold-plated contacts to maintain signal integrity. This specific SKU belongs to the F-Series Network Cables and is fully TAA-compliant for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.22 in (5.6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | UTP |
| Shipping Weight | 0.18 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Unshielded UTP |
| Cable Type | Non-Booted |
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120436317 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99

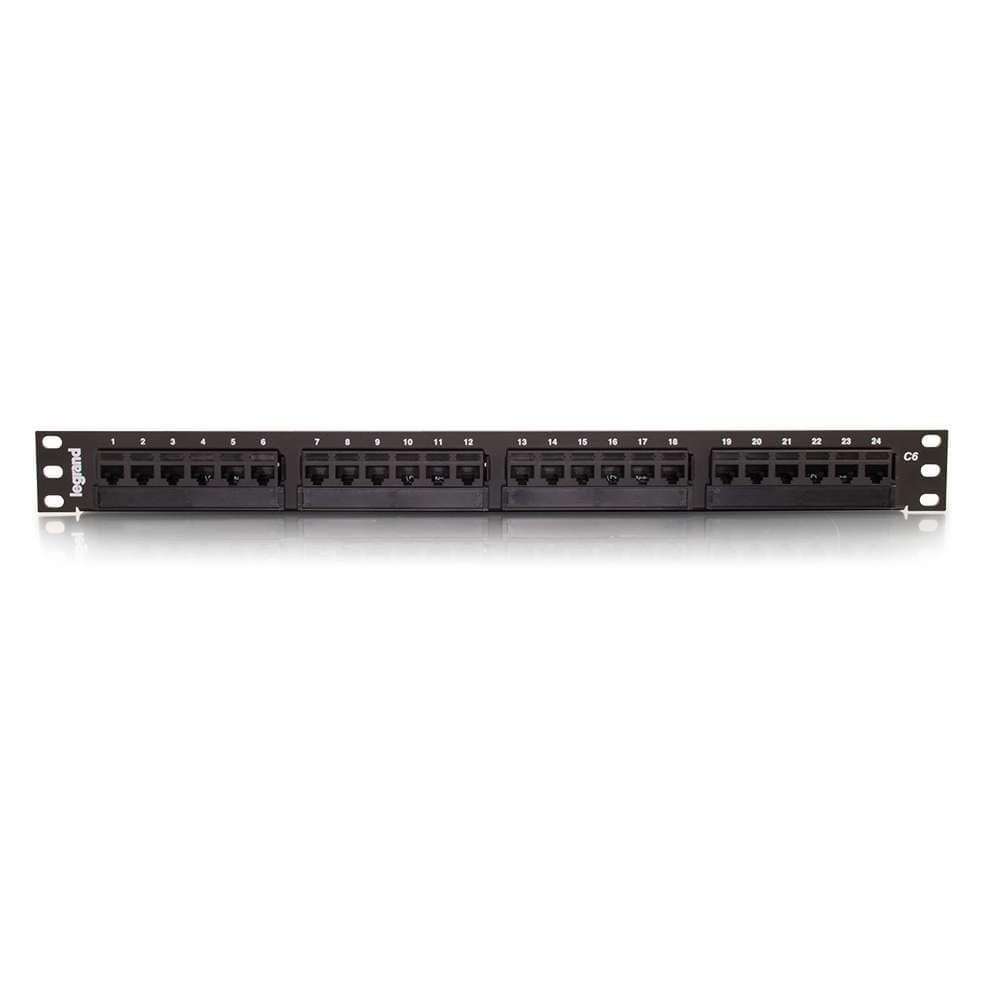

24-Port Cat6 110-Type Patch Panel
CG37199$170.99

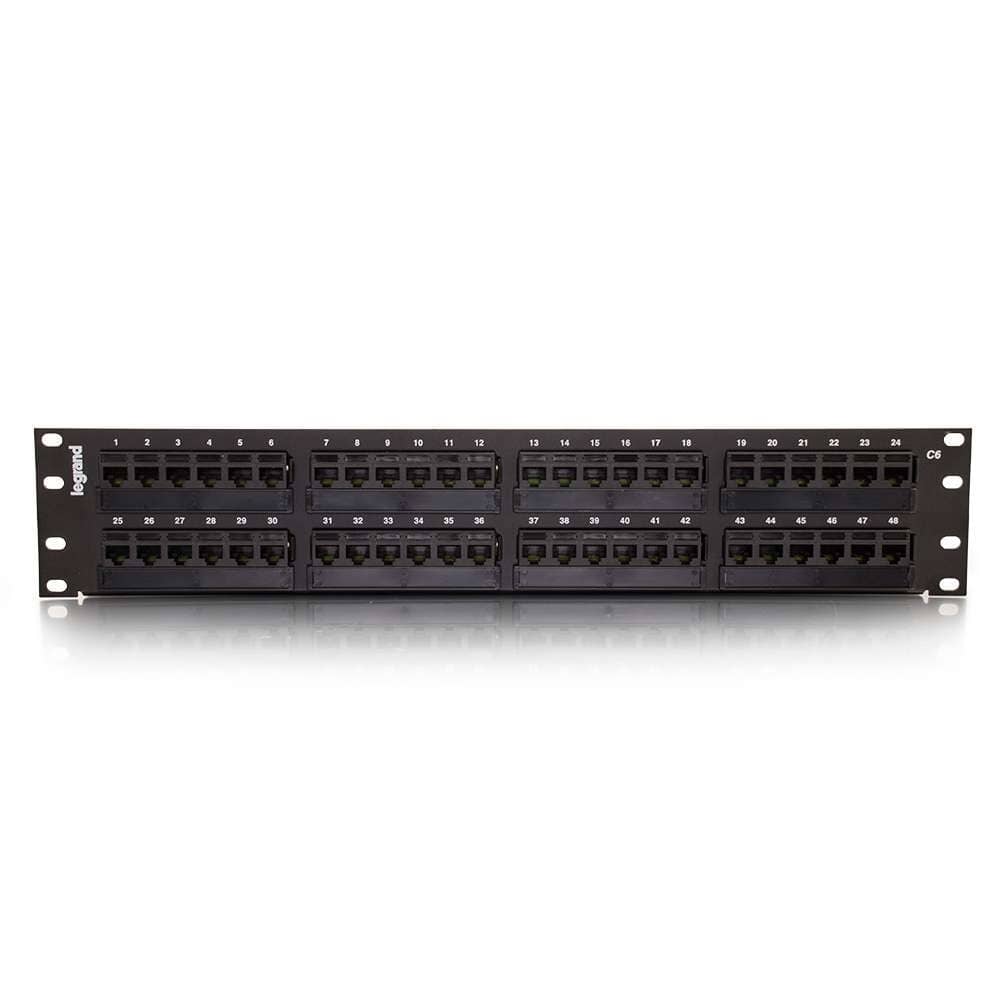

48-Port Cat6 110-Type Patch Panel
CG37200$327.99

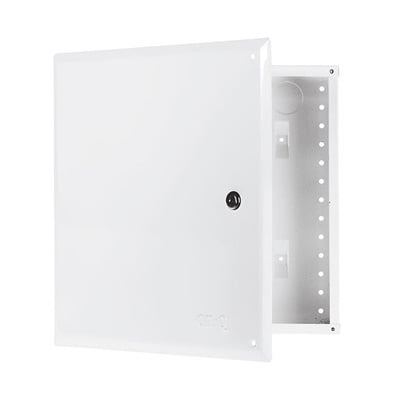

14 Inch Enclosure with Hinged Door
EN1450$129.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Hinged Door
EN4250$249.99

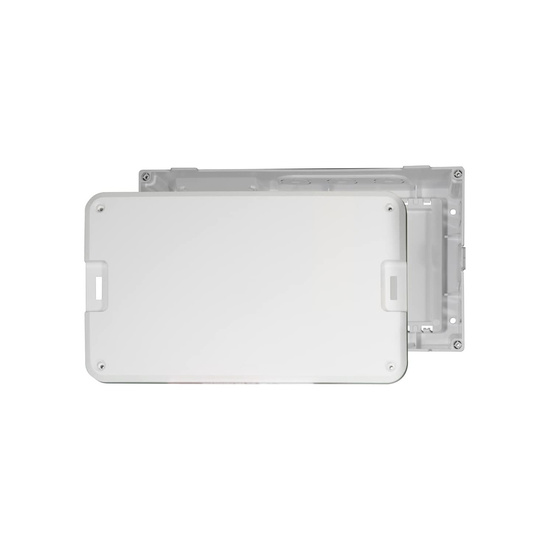

8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
28 Inch Enclosure with Hinged Door
EN2850$149.99

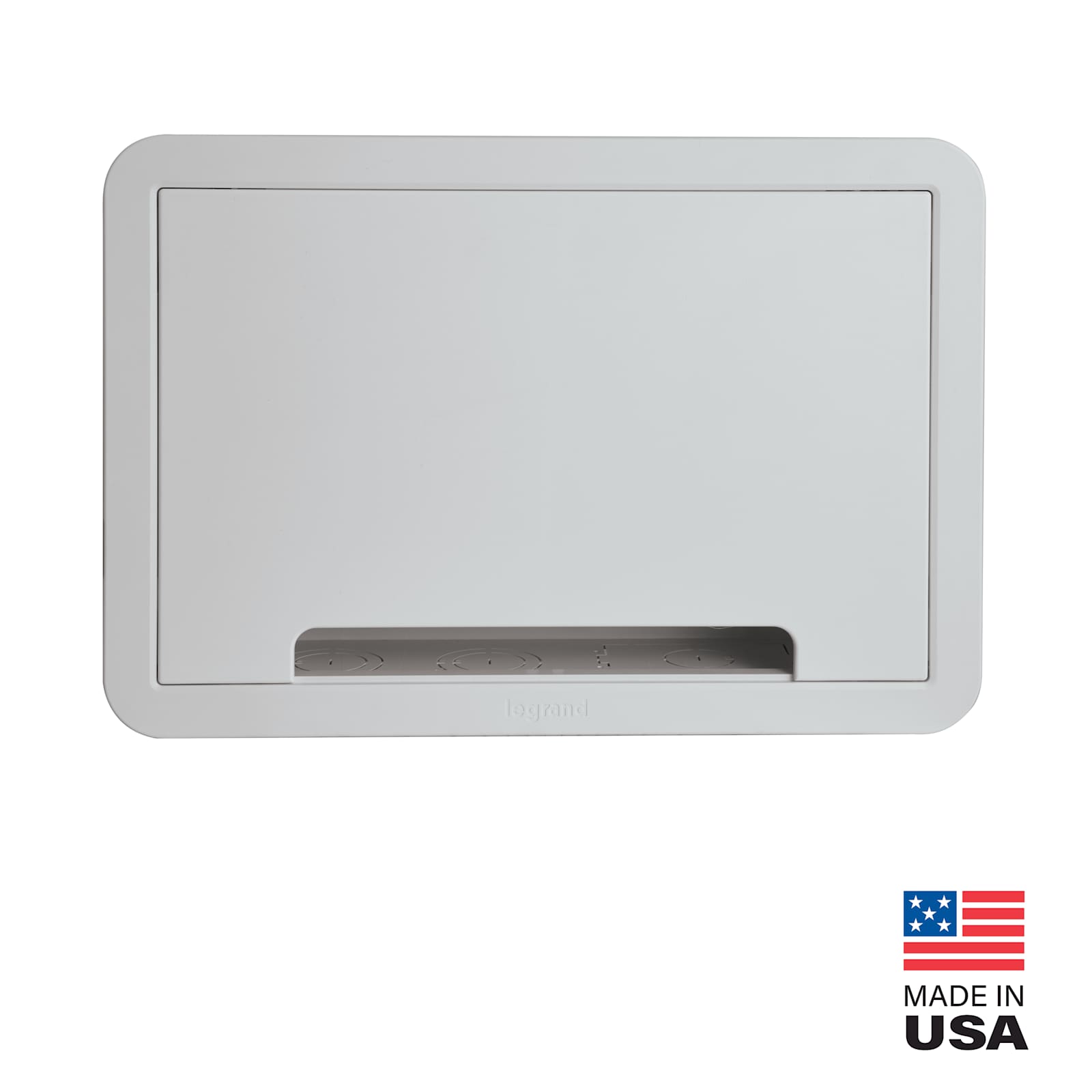

9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
Questions about this part
Is the C2G43631 TAA compliant?
Yes, this cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum frequency supported by this Cat6 cable?
This C2G43631 cable features an enhanced 600 MHz maximum frequency for improved performance over standard Cat6 cables.
What type of installation is this cable rated for?
This cable has a CMR jacket rating, making it suitable for riser applications.
What is the difference between this and other F-Series cables?
This SKU is the 8ft (2.4m) black variant; the F-Series is available in various lengths up to 25ft and multiple colors.
What standards does this network cable meet?
This cable meets or exceeds the ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards.
