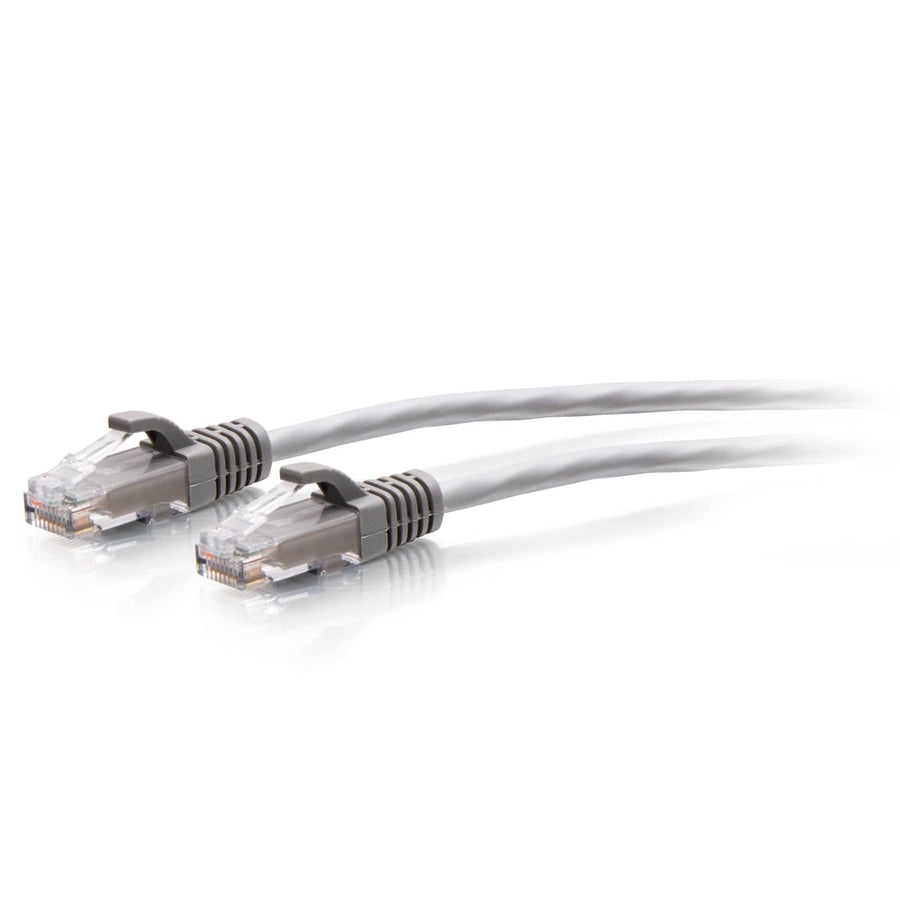

8ft (2.4m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Gray
8ft Cat6a slim unshielded UTP patch cable, 28AWG construction for high-density applications, 10Gbps data rate, gray finish
The C2G30118 is an 8 ft (2.4 m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable in gray. Designed for high-density cabling environments like datacenters and large conference rooms, this cable utilizes 28AWG stranded copper conductors to achieve a slim 0.19 in (4.8 mm) diameter. This reduced profile improves airflow in tight spaces and increases flexibility for complex cable management. Each cable supports data transfer rates up to 10 Gbps and meets the ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. The RJ-45 male connectors feature gold-plated contacts and are protected by PVC snagless boots to provide strain relief and prevent accidental snags during installation. This UTP slim cable is an effective solution for Power over Ethernet (PoE) and VoIP deployments. The C2G30118 is covered by a lifetime warranty and is compliant with RoHS, REACH, and TAA standards.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.34 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Gray |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301189 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
You'll need these with it
6-Port Unpopulated Network Interface Module
AC1001$39.99
6-Port Surface Mount Box
WP3506WH$6.99
Six Port Keystone Single Gang Wall Plate - White
CG03414
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
Two Port Keystone Single Gang Wall Plate - White
CG03411$2.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
30 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP3050NA$114.99
0.68in Self-Adhesive Cable Clamp Multipack - 50 Pack
CG43053$86.99
11in Hook-and-Loop Cable Management Wrap Multipack (12-Pack) - Black
CG29854$16.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Will this Cat6a cable work for 10Gbps networking?
Yes, the C2G30118 supports data transfer rates up to 10 Gbps and meets ANSI/TIA-568.2-D electrical performance requirements.
What is the diameter of this slim patch cable?
This cable has a 0.19 in (4.8 mm) ± 0.15mm (0.01 in) outer diameter, making it ideal for high-density installations.
Is this cable suitable for PoE applications?
Yes, the 28AWG construction makes this Cat6a cable suitable for Power over Ethernet (PoE) and VoIP deployments.
What do I need for a complete installation with this cable?
The C2G30118 is a patch cable. For complete connectivity, you may need accessories like the AC1001 6-Port Network Interface Module or a WP3506WH Surface Mount Box.
How does the snagless boot protect the cable?
The molded PVC snagless boot provides extra strain relief and prevents unwanted snags during the installation process.
