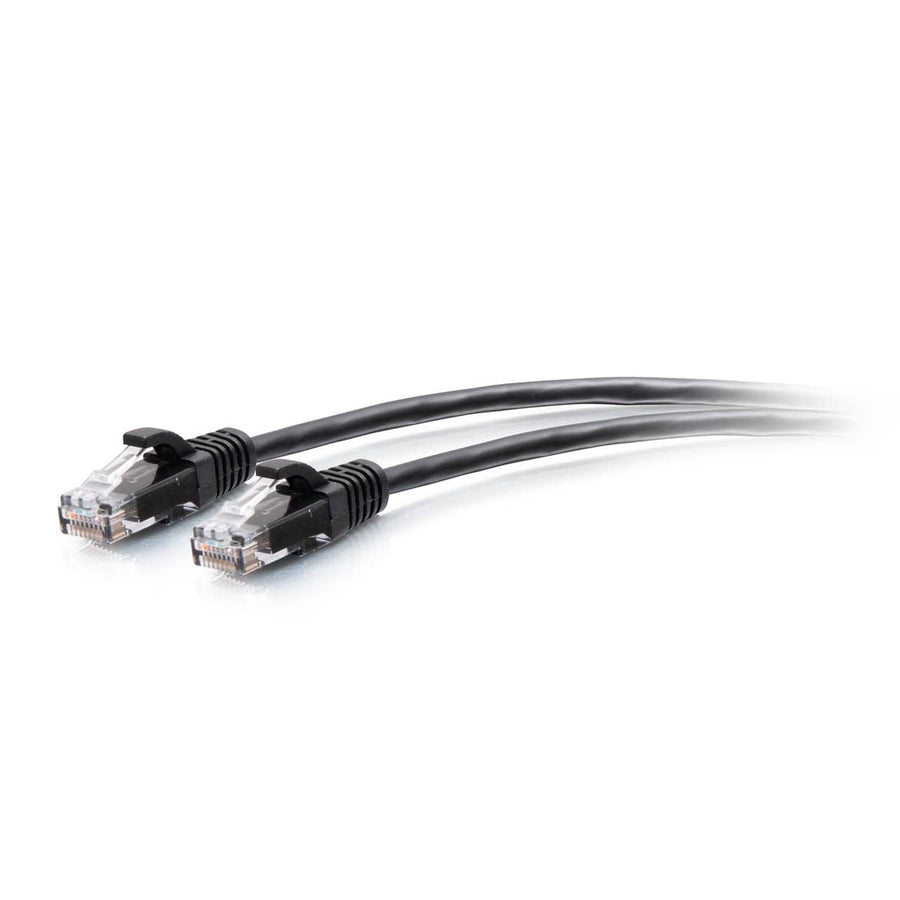

8ft (2.4m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable - Black
8ft Cat6a slim UTP patch cable with 28AWG conductors and snagless boots for high-density network environments
The C2G30146 is an 8ft (2.4m) Cat6a Snagless Unshielded (UTP) Slim Ethernet Patch Cable designed for high-density cabling environments such as data centers and large conference rooms. Utilizing 28AWG stranded copper conductors, this cable features a significantly reduced diameter of 0.19 in (4.8 mm) compared to standard Cat6 cables. This slim profile increases airflow in crowded racks and provides the flexibility required for tight space installations. The cable supports data transfer rates up to 10 GBPS and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 electrical performance requirements. Each connector is a booted, snagless RJ-45 Male with gold-plated contacts and a PVC hood to prevent accidental snags during installation and provide strain relief. This unshielded UTP cable is ideal for Power over Ethernet (PoE) and VoIP applications where bandwidth and cable management are critical. It is NDAA 889 compliant and carries a lifetime warranty.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.19 in (4.8 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.34 lbs (0.2 kg) |
| Wire Gauge | 28 |
| Cable Shielding | Unshielded UTP Slim |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
All other specifications 14
| Color | Black |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSlimSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120301462 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Data Transfer Rate | 10 GBPS |
| Jacket Material | PVC |
| Warranty | Lifetime |
