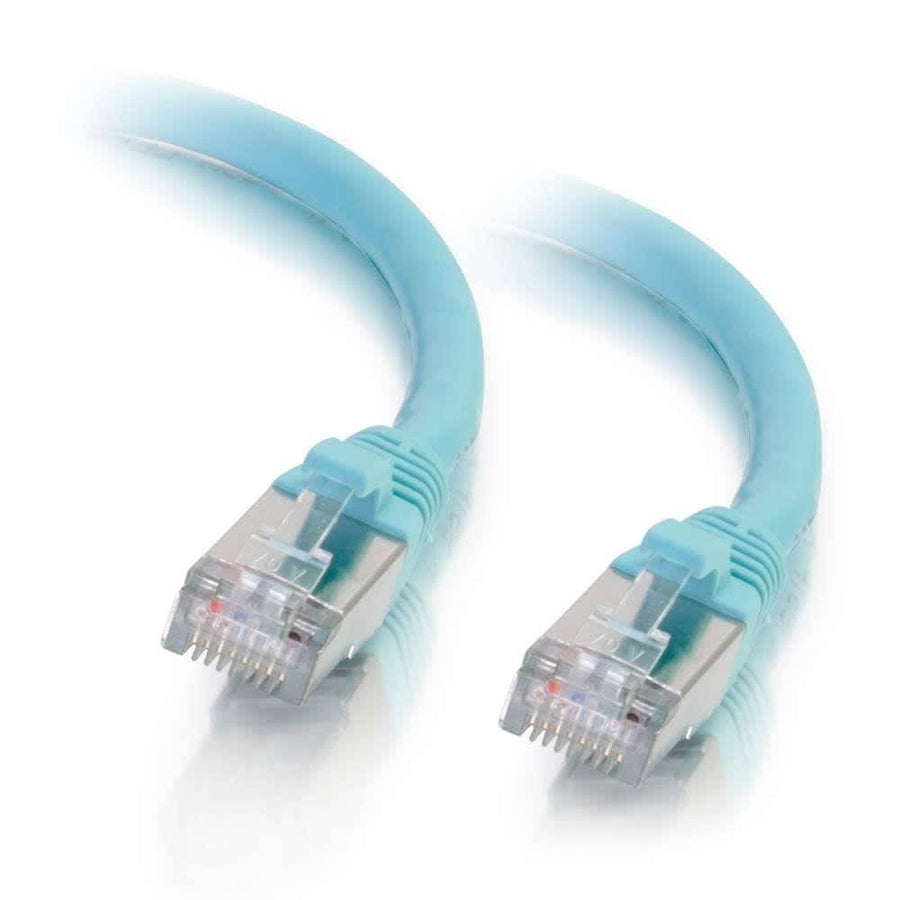

8ft (2.4m) Cat6a Snagless Shielded STP Ethernet Network Patch Cable - Aqua
8ft Cat6a shielded STP patch cable in Aqua, featuring snagless boots and stranded copper conductors for 10GBase-T networks
The C2G CG00747 is an 8ft (2.4m) Cat6a Snagless Shielded STP Ethernet patch cable designed for high-speed 10GBase-T network environments. This aqua-colored cable is engineered to protect sensitive 10 Gigabit connections from electromagnetic interference and noise by utilizing a Shielded STP construction. It is suitable for use with a variety of networking hardware, including switches, routers, hubs, network adapters, patch panels, and DSL/cable modems. This patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements, ensuring reliable bandwidth-intensive performance. The cable features 26AWG bare copper conductors with stranded construction to help minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain precise twist-spacing from the connector through the entire line. The RJ-45 male connectors are protected by PVC snagless hoods, which prevent accidental damage to the release tabs during installation. For easy identification in complex racks, each cable includes an individual length label.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Bend Radius | 1.95 in (49.6 mm) |
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Operating Temperature | -4° - 176°F (-20° - 80°C) |
| Shield Type | STP |
| Shipping Weight | 0.23 lbs (0.1 kg) |
| Storage Temperature Max | 176 Fahrenheit (80 Celsius) |
| Storage Temperature Min | -4 Fahrenheit (-20 Celsius) |
All other specifications 18
| Wire Gauge | 26 |
| Cable Shielding | Shielded STP |
| Cable Type | Cat6a |
| Category Performance Application | Cat6a |
| Color | Aqua |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Insulation Material | FMPE (Foam Polyethylene) |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120007470 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Is the C2G CG00747 suitable for 10 Gigabit Ethernet?
Yes. This Cat6a cable is designed for 10GBase-T ports and equipment, providing protection against noise for high-speed 10 Gigabit network connections.
What wiring standard does this patch cable use?
The CG00747 patch cable is manufactured using the 568B wiring scheme.
What is the bend radius for this 8ft Cat6a cable?
The minimum bend radius for this cable is 1.95 in (49.6 mm).
What is the temperature rating for the CG00747?
This cable has an operating temperature range of -4°F to 176°F (-20°C to 80°C).
Does this cable meet TIA standards?
Yes, this cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements.
