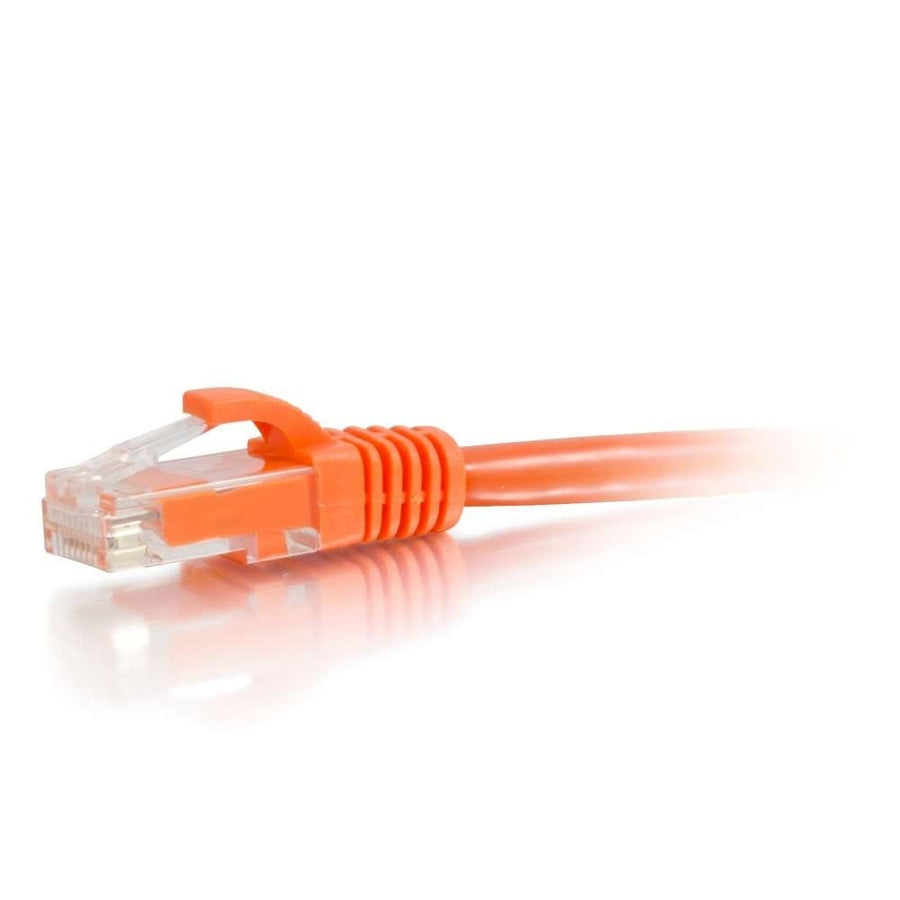

8ft (2.4m) Cat6 Snagless Unshielded UTP Ethernet Network Patch Cable - Orange
8ft Cat6 Unshielded UTP Ethernet patch cable in orange, featuring a snagless design and RJ-45 connectors
The C2G CG04019 is an 8ft (2.4m) Cat6 Snagless Patch Cable designed for high-bandwidth networking environments. This Unshielded Twisted Pair (UTP) cable is suitable for fast Ethernet and Gigabit computer networks that require reliable distribution for voice, data, or video applications. Built with 24 AWG copper stranded conductors, this cable is engineered to meet all Cat6 TIA/EIA standards. The construction focuses on reducing impedance, structural return loss (SRL), and Near-End Crosstalk (NEXT) levels by bonding individual pairs to maintain precise twist-spacing through the termination point. For ease of installation in high-density racks or tight spaces, the orange jacket features a molded snagless boot that protects the RJ-45 clips from damage during plugging and unplugging. This 0.24 in (6.2 mm) diameter cable uses a T568B wiring scheme and is housed in a PVC jacket and connector hood.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6.2 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.24 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 14
| Category Performance Application | Cat6 |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Hood Material | PVC |
| Connector Type | BootedSnagless |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| UPC | 757120040194 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
| Warranty | Lifetime |
Resources
Questions about this part
Will the CG04019 fit my standard RJ-45 hardware?
Yes, this cable features standard RJ-45 male connectors on both ends for compatibility with most network equipment.
What is the wiring standard for the C2G CG04019?
This patch cable follows the T568B wiring scheme for consistent network connectivity.
Can I use this cable for Gigabit Ethernet applications?
Yes, this Cat6 cable is designed for fast Ethernet and Gigabit networks requiring high bandwidth for data or video.
How does the snagless design benefit installation?
The molded snagless boot protects the connector clips, preventing them from snapping off when pulling the cable through crowded racks.
What is the diameter of this Cat6 patch cable?
The cable has a diameter of 0.24 in (6.2 mm) and uses a 24 AWG stranded copper conductor.
