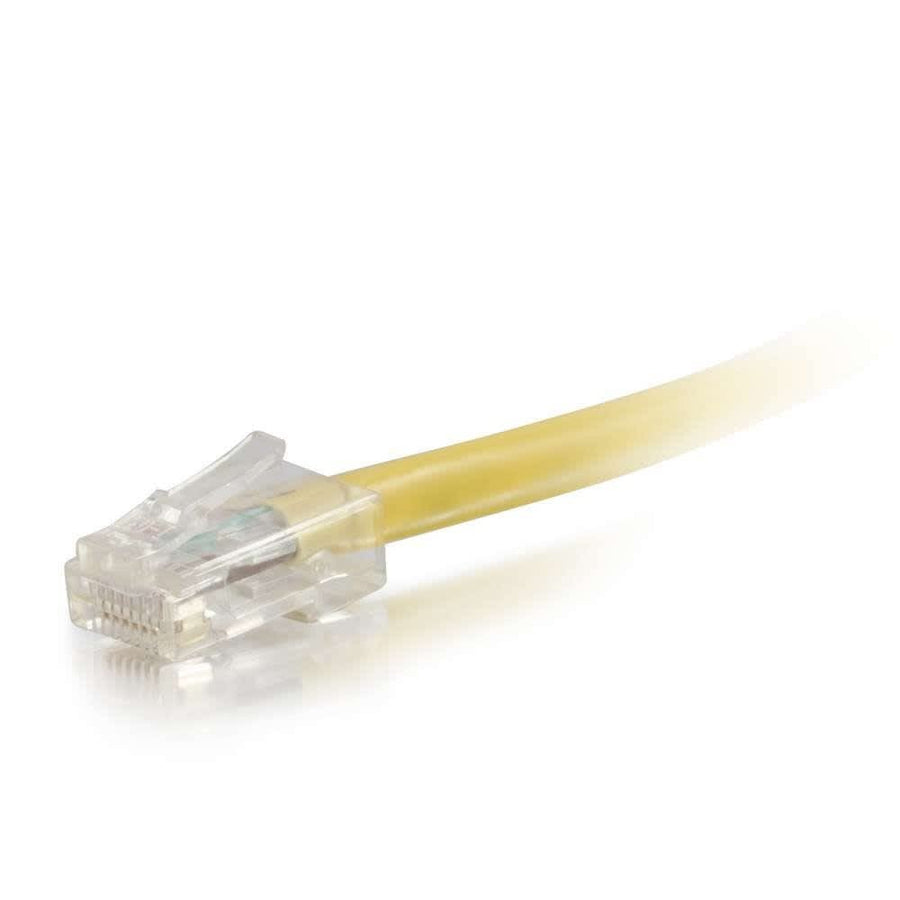

8ft (2.4m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Yellow
8ft Cat6 UTP unshielded Ethernet patch cable, yellow color, with RJ-45 male connectors and T568B wiring
The C2G CG04176 is an 8ft (2.4m) Cat6 unshielded UTP Ethernet network patch cable designed for high-bandwidth environments. This yellow cable is suitable for fast Ethernet and Gigabit computer networks that require reliable distribution for voice, data, or video applications. Built with stranded copper conductors and a 24 AWG wire gauge, this cable meets all Cat6 TIA/EIA standards. The construction minimizes Near-End Crosstalk (NEXT) levels by bonding individual pairs to maintain twist-spacing throughout the line up to the termination point. This design effectively reduces impedance and structural return loss (SRL) for consistent performance. This specific SKU features a non-booted connector type with RJ-45 male terminations on both ends using a T568B wiring scheme. The 0.24 in (6 mm) diameter cable is housed in a PVC jacket with a temperature rating of 75°C. It is an ideal solution for color-coding network installations to improve organization and management.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120041764 |
| Certifications | CENDAA 889Prop 65REACHRoHSTSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring standard for the CG04176?
The CG04176 uses the T568B wiring scheme for its RJ-45 male connectors.
Is this cable suitable for high-speed data applications?
Yes, this is a Cat6 cable designed for fast Ethernet and Gigabit networks, providing bandwidth for voice, data, or video distribution.
What is the conductor material and gauge used in this cable?
This patch cable uses stranded copper conductors with a 24 AWG wire gauge.
What is the maximum operating temperature for this cable?
The jacket material is PVC with a rated temperature of 75°C.
Does this cable support color-coding in a server rack?
Yes, this SKU features a yellow jacket, which can be used to visually differentiate specific network segments or services.
