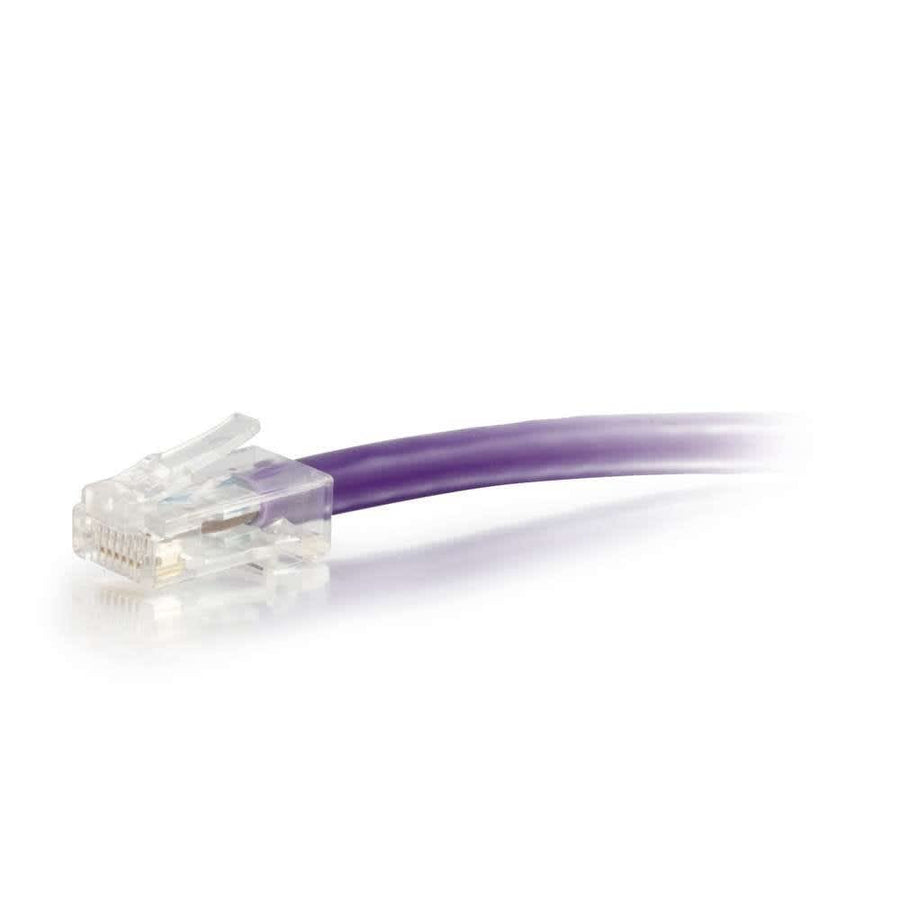

8ft (2.4m) Cat6 Non-Booted Unshielded UTP Ethernet Network Patch Cable - Purple
8ft Cat6 Unshielded UTP Ethernet patch cable in purple, featuring 24 AWG stranded copper conductors and T568B wiring
The C2G CG04218 is an 8ft (2.4m) Cat6 Unshielded UTP Ethernet network patch cable designed for bandwidth-intensive voice, data, or video distribution. This purple patch cable utilizes 24 AWG stranded copper conductors to help minimize Near-End Crosstalk (NEXT) levels. Each individual pair is bonded together to maintain consistent twist-spacing through the entire line up to the termination point, which helps reduce both impedance and structural return loss (SRL). This cable is built to meet all Cat6 TIA/EIA standards for high-speed networking. It features a non-booted connector type with RJ-45 Male connectors on both ends. The cable uses a PVC jacket material and follows a T568B wiring scheme. This specific SKU is part of the Cat6 Non-Booted Patch Cable series and is available in 150 different length and color combinations to assist with network color-coding.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 8 ft (2.4 m) |
| Shield Type | UTP |
| Shipping Weight | 0.22 lbs (0.1 kg) |
| Wire Gauge | 24 |
| Wiring Scheme | T568B |
| Cable Shielding | Unshielded (UTP) |
| Cable Type | Cat6 |
All other specifications 13
| Category Performance Application | Cat6 |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male(1) RJ-45 Male |
| Connector Type | Non-booted |
| Jacket Rating | Standard / Non-Rated |
| Product Type | Cable |
| TAA Compliant | No |
| UPC | 757120042181 |
| Certifications | CENDAA 889NDAA 889Prop 65Prop 65REACHREACHRoHSRoHSTSCATSCA |
| Jacket Material | PVC |
Questions about this part
What is the wiring scheme for the C2G CG04218?
This patch cable uses the T568B wiring scheme for its RJ-45 Male terminations.
Is the CG04218 a shielded or unshielded cable?
The CG04218 is an Unshielded (UTP) Cat6 cable.
What material are the conductors made of?
These cables are constructed with 24 AWG stranded copper conductors.
Are there other color options for this cable series?
Yes, the Cat6 Non-Booted Patch Cable series includes 10 color options, such as Black, Blue, Gray, Green, Orange, Pink, Red, and more.
What is the diameter of the CG04218 cable?
The cable diameter is 0.24 in (6 mm).
