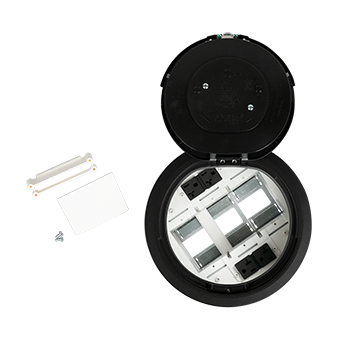

8ATC2PBK 8AT Prewired Evolution™ Poke Thru Device with Surface Style Cover in Black
Prewired 8'' recessed poke-thru device with a black surface-style cover for floor-level power and data access
The 8ATC2PBK is a prewired Evolution 8'' recessed assembly designed to provide integrated power, communications, and audio/video services within a floor installation. This device is engineered for both new construction and retrofit applications, sitting recessed below the floor level to protect connections from foot traffic and cleaning equipment. Featuring a surface-style cover in a black finish, this unit offers 5 gangs of capacity to accommodate diverse configuration needs for a variety of environments. The assembly is suitable for installation in spaces with carpet, tile, wood, laminate, or concrete floor coverings. Because this is a prewired model, it simplifies the installation process in commercial settings like kiosks, meeting rooms, training rooms, classrooms, or healthcare facilities. This TAA compliant device is part of the Evolution 8AT2 Series, which offers multiple finish options to match specific architectural requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Height | 9.25 in (23.5 cm) |
| Width | 9.25 in (23.5 cm) |
| Color | Black |
| Cover Style | Surface |
| Prewired | Yes |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this poke-thru work with my existing floor covering?
Yes, this device is designed for use with carpet, tile, wood, laminate, and concrete floor coverings.
How many services can I configure in this unit?
The 8ATC2PBK provides 5 gangs of capacity, allowing you to configure power, data, and A/V services.
Is this a prewired or field-wired model?
This is a prewired unit, which simplifies the installation of communications and power in the field.
What is the difference between this and other Evolution series covers?
This specific SKU features a black surface-style cover, whereas other models in the series offer different finishes like brushed aluminum or satin nickel.
Which document should I use for submittals?
For technical details, you can refer to the Evolution Series 8" Poke-Thru Devices PDF or the Evolution Series Poke-Thru Devices Brochure.
