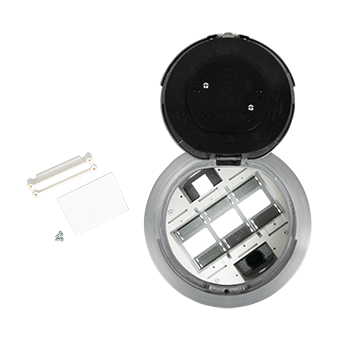

8AT2NK Evolution™ Recessed Assembly with Flush Style Cover in Nickel
8" recessed assembly with a 5-gang capacity and nickel flush cover, designed for open-space floor installations
The 8AT2NK is an Evolution Series 8" Recessed Assembly featuring a flush style cover in a nickel finish. This preassembled, unwired poke-thru device is designed for both new construction and retrofit applications, allowing installers to connect to conduits and complete the installation immediately while delaying specific configuration and plate choices for later. This recessed assembly provides 5 gangs of capacity, enabling customized service configurations for power, communications, and audio/video needs. The 16.25 in (41.3 cm) depth ensures the assembly sits below floor level to protect devices and connections. The unique cover design features two spring-loaded slide egress doors that open 180 degrees to keep wires and users safe. This open system is compatible with industry-standard devices from manufacturers like Extron® and Legrand AVIP, and it includes a 3-gang opening to accommodate wall plate style transmitters, such as the Crestron DM/TX series, without requiring additional parts.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Color | Nickel |
| Cover Style | Flush |
| Prewired | No |
Resources
Questions about this part
Will this 8AT2NK fit my Extron or Crestron devices?
Yes. This assembly is an open system compatible with Extron® and Legrand AVIP devices. It also includes a 3-gang opening specifically designed to fit wall plate style transmitters, such as the Crestron DM/TX series, without needing additional parts.
Do I need to wire this assembly before installation?
No, the 8AT2NK is an unwired, preassembled device. This allows you to connect it to conduits and complete the floor installation immediately, while you decide on specific plate choices and device configurations at a later date.
What kind of floor coverings can this poke-thru support?
The Evolution Series assembly is suitable for installation in environments with carpet, tile, wood, laminate, or concrete floor coverings.
How does the cover design improve safety?
The cover features a unique design where two spring-loaded slide egress doors allow the cover to open a full 180 degrees, protecting wires and connections from damage and keeping people safe.
Is the 8AT2NK suitable for commercial open-space architecture?
Yes, this recessed assembly is designed for use in kiosks, meeting rooms, training rooms, classrooms, healthcare facilities, and other commercial buildings with open-space layouts.
