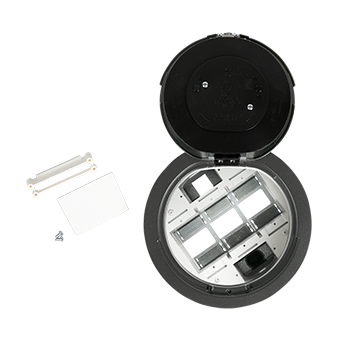

8AT2GY Evolution™ Recessed Assembly with Flush Style Cover in Gray
Recessed 8" poke-thru assembly with flush gray cover, 5-gang capacity, and TAA compliance for open-space floor installations
The 8AT2GY is an Evolution Series 8" Recessed Assembly featuring a flush style cover in a gray finish. Designed for both new construction and retrofit applications, this un-wired poke-thru device provides a secure, recessed housing for power, communications, and A/V services below the floor level. The unit is configured with a 5-gang capacity to meet diverse connectivity needs in classrooms, meeting rooms, healthcare facilities, and commercial open-space architectures. This assembly includes a 3-gang opening, making it compatible with wall plate style transmitters, such as the Crestron DM/TX series, without requiring additional parts. The unique cover design opens 180 degrees via two spring-loaded, slide egress doors to protect internal connections and wires. This TAA compliant assembly is an open system that accepts industry-standard devices from most manufacturers, including Legrand AVIP and Extron®.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Color | Gray |
| Cover Style | Flush |
| Prewired | No |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What devices can I use with the 8AT2GY?
This is an open system that accepts industry-standard power, communication, and A/V devices from most manufacturers, including Extron® and Legrand AVIP.
Will this fit Crestron DM/TX series transmitters?
Yes, the assembly includes a 3-gang opening designed to fit wall plate style transmitters, such as the Crestron DM/TX series, without needing extra parts.
What is the required installation depth for this assembly?
The unit has a depth of 16.25 in (41.3 cm) for the installation requirement.
Is this 8AT2GY model prewired for immediate use?
No, this is an unwired, preassembled assembly. You connect it to your conduits first, then configure the specific plates and service choices later.
Can this be installed in a commercial office space?
Yes, it is designed for use in commercial buildings with open-space architecture, including installation in carpet, tile, wood, laminate, or concrete floor coverings.
