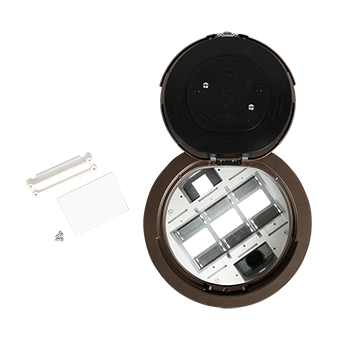

8AT2BZ Evolution™ Recessed Assembly with Flush Style Cover in Bronze
8" Recessed Poke-Thru assembly in Bronze with a flush-style cover, providing 5-gang capacity for power, AV, and communications.
The Wiremold 8AT2BZ is an Evolution Series 8" recessed assembly designed to provide accessible power, communications, and audio/video services below the floor level. This preassembled, unwired device allows installers to connect to conduits immediately and defer specific configuration and plate choices for later. Featuring a 5-gang capacity, this unit is built for versatility in commercial environments like meeting rooms, classrooms, and healthcare facilities. The bronze-finish flush style cover features a unique design where the cover opens 180 degrees via two spring-loaded slide egress doors, ensuring safe wire management. This assembly is suitable for installation in carpet, tile, wood, laminate, or concrete floor coverings. Because it is an open system, it maintains compatibility with industry-standard devices from most manufacturers, including Extron® and Legrand AVIP. For submittals, installers can refer to the Evolution Series 8" Poke-Thru Devices brochure or the Evolution Series Sell Sheet.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 16.25 in (41.3 cm) |
| Color | Bronze |
| Cover Style | Flush |
| Prewired | No |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Will this poke-thru work with my existing A/V equipment?
The open system design is compatible with industry-standard power, communications, and A/V devices from most manufacturers, such as Extron® and Legrand AVIP.
Can I install this in a floor with existing wood or tile?
Yes, this assembly is designed for use with carpet, tile, wood, laminate, and concrete floor coverings.
Do I need to buy extra parts to install a Crestron transmitter?
No, this assembly includes a 3-gang opening specifically designed to fit A/V wall plate style transmitters like the Crestron DM/TX series without additional parts.
Is this assembly prewired for immediate use?
No, this is a preassembled but unwired device. You can connect it to conduits now and choose your specific plate and device configuration later.
What is the depth requirement for the floor cutout?
The assembly has a depth of 16.25 in (41.3 cm).
