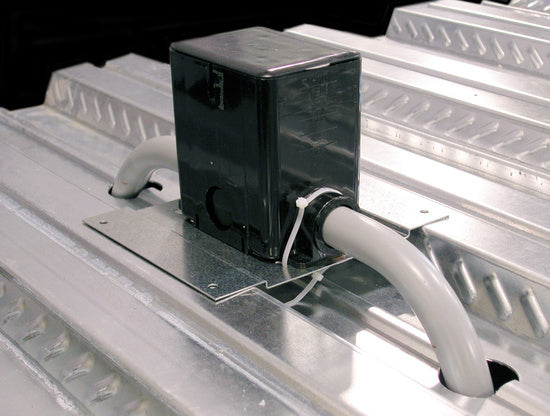

880MPFC Fire Classified Nonmetallic Rectangular Floor Box
Nonmetallic rectangular floor box designed to preserve 2-hour floor fire ratings with a 50 to 100 cu. in. capacity
The Wiremold 880MPFC is a fire classified nonmetallic rectangular floor box designed to preserve the 2-hour fire rating of the floor in which it is installed. This single-gang unit is intended for installation in concrete with a minimum depth of 3 1/2" (89mm) and a maximum depth of 6" (152mm). For installation, the provided insert spacer should not be removed until after the concrete pour is complete. The box features a maximum capacity of 100 cu. in. (1639ml) and a minimum capacity of 50 cu. in. (819ml). To maintain the fire classification, these boxes cannot be ganged together. For electrical and data needs, the unit allows for a maximum copper cross section of four #12 AWG Type THHN power conductors or 48 #23 AWG (6 Cat. 6) Tele Data conductors per insert.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
Can I gang multiple 880MPFC boxes together?
No, you cannot gang these boxes together if you need to maintain the Fire Classification.
What are the requirements for concrete depth during installation?
The installation requires a minimum concrete depth of 3 1/2" (89mm) and a maximum depth of 6" (152mm).
What conduit sizes can be used with this floor box?
The included reducers allow for connections to 1", 3/4", and 1/2" (25mm, 19.1mm, and 12.7mm) conduit.
Is this product TAA compliant?
Yes, the 880MPFC is TAA compliant.
When should the insert spacer be removed?
The insert spacer should not be removed until after the concrete pour is finished.
