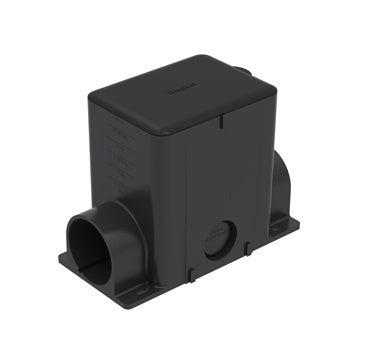

880MP2 ModulinkTM Rectangular Plastic Floor Box with 2 inch Conduit Opening
Rectangular plastic floor box with 2-inch conduit openings and TAA compliance, designed for modular gangable configuration
The Wiremold 880MP2 is a Modulink™ nonmetallic rectangular floor box designed to deliver power and communication services directly to workstations or open floor spaces. This specific model features 2-inch [51mm] conduit openings, providing the largest conduit feed in the industry to accommodate greater communication cable capacity. For complex layouts, the 880MP2 is a gangable box, meaning a single-gang unit can be expanded into two- or three-gang configurations by ganging individual boxes together. This modularity, combined with pass-through capability for feeding multiple gangs from a single feed location, significantly reduces total installation time on commercial office, retail, or government projects. The box includes depth markings on the exterior to assist with quick floor box depth calculations during the pour.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 8.25 in (21 cm) |
| Height | 6.25 in (15.9 cm) |
| Width | 4.13 in (10.5 cm) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Black |
Resources
Questions about this part
Can I expand this floor box into a larger configuration?
Yes, the Modulink 880MP2 is a gangable design. You can gang multiple single-gang boxes together to create two- or three-gang configurations as required by the job site.
How do I adjust the cover flange after the floor is poured?
The unit features a ratchet adjusting ring that provides 10° of post-pour adjustment for the cover flange, allowing for alignment without the need for glue or mechanical fasteners.
What is the conduit size for the 880MP2?
This model is equipped with 2-inch (51mm) conduit openings to support high-capacity communication cable runs.
Is this floor box TAA compliant?
Yes, the 880MP2 is TAA compliant, making it suitable for government and institutional projects with specific procurement requirements.
How can I ensure the box is set at the correct depth in the concrete?
The exterior of the box features depth markings to make floor box depth calculations quick and easy during installation.
