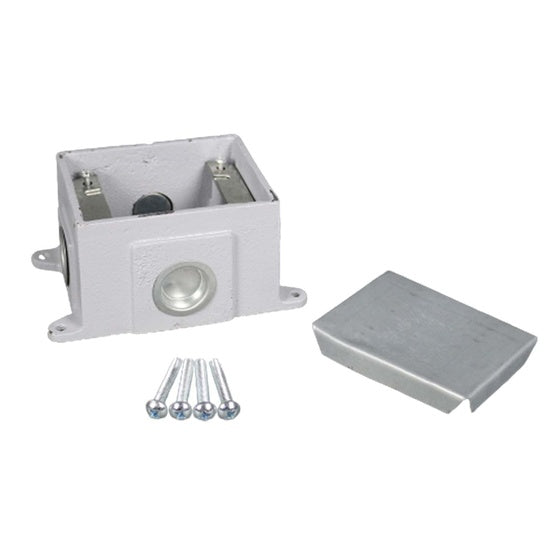

880CS1-1 Omnibox® One Gang Cast Iron Floor Box
Single gang cast iron floor box for concrete applications, providing adjustable installation in open spaces
The 880CS1-1 is a single gang, cast iron Omnibox® floor box designed for activation in open space areas where a single service is required. This concrete floor box is engineered for high-traffic environments and offers significant flexibility during the installation process. The unit is fully adjustable, allowing for precise positioning both before and after the concrete pour is completed. This adjustability helps to lower the overall installed cost on job sites. Designed for flush activation, these assemblies are compatible with both carpet and tile finishes. For aesthetic continuity, the interchangeable assemblies can be used with either cast-iron or stamped steel series covers. This 880CS1-1 model features a silver finish and measures 4.5" W x 3.5" H x 6.63" D (11.4 x 8.9 x 16.8 cm). The product is cULus and RoHS listed.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 6.63 in (16.8 cm) |
| Height | 3.5 in (8.9 cm) |
| Width | 4.5 in (11.4 cm) |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Silver |
Resources
Questions about this part
Can the 880CS1-1 be adjusted after the concrete has been poured?
Yes, this floor box is fully adjustable both before and after the concrete pour is completed to ensure proper positioning.
Will the 880CS1-1 work with carpet or tile flooring?
Yes, these assemblies are designed for flush activation and are compatible with both carpet and tile applications.
What is the depth required for the 880CS1-1 installation?
The 880CS1-1 requires a depth of 6.63 in (16.8 cm) for installation in concrete.
Can I use different covers with this cast iron box?
Yes, the assemblies are aesthetically interchangeable between the cast-iron and the stamped steel series.
What certifications does the 880CS1-1 have?
The 880CS1-1 is cULus and RoHS listed, and its assemblies are listed to UL514A, 514C, 514D, and C22.2 standards.
