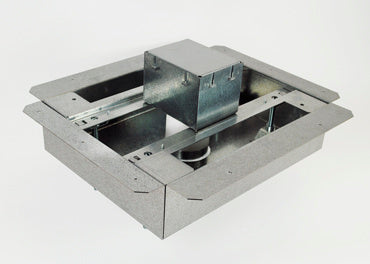

8801S-FC Omnibox® Fire Classified One Gang Floor Box
1-Gang fire classified steel floor box with an adjustment range of 2 to 5 inches and 53 cubic inch capacity
The 8801S-FC is a 1-gang steel floor box designed for installations where maintaining the integrity of a floor's fire rating is required. This Omnibox component preserves the 2-hour fire rating of the floors in which it is installed. It features a 53 cubic inch capacity and includes one 1 1/4" (32mm) conduit feed opening. When installing, the box provides an adjustment range over the deck from a 2" (51mm) minimum to a 5" (127mm) maximum. To ensure proper installation and fire protection, use this box in normal weight concrete with a minimum pour of 4 1/2" (114mm) over the deck.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
How much capacity does the 8801S-FC have?
The 8801S-FC provides a total box capacity of 53 cubic inches.
What is the required concrete pour for this floor box?
This box should be used in normal weight concrete with a minimum pour of 4 1/2" (114mm) over the deck.
Can this box be used to maintain a fire rating?
Yes, this box is designed to preserve the 2-hour fire rating of the floors in which it is installed.
What is the adjustment range for the 8801S-FC over the deck?
The adjustment range is a minimum of 2" (51mm) to a maximum of 5" (127mm) over the deck.
What type of conduit feed does this box accept?
The unit is equipped with one 1 1/4" (32mm) conduit feed opening.
