862DB PVC Floor Box Assembly for Wood or Concrete Floors
PVC floor box assembly for wood or concrete floors, including a 15A duplex receptacle and brass cover

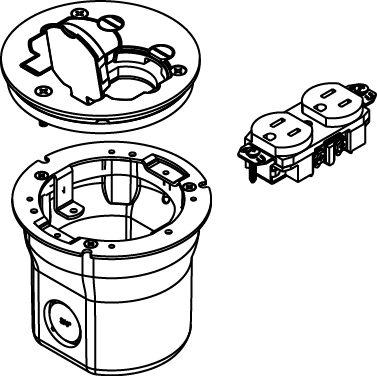

The 862DB is a PVC floor box assembly designed for installation in wood or concrete floor applications. This assembly includes one 862 Series Floor Box, one 15A, 125V tamper-resistant brown duplex receptacle, and one 895T brass duplex receptacle cover designed for tile. For installations specifically within concrete floors, you should order 862KIT instead. This TAA compliant unit is built to professional standards, featuring a 4.25 in (10.8 cm) depth, 4 in (10.2 cm) height, and 4.25 in (10.8 cm) width to accommodate standard electrical requirements in residential or commercial environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 4.25 in (10.8 cm) |
| Height | 4 in (10.2 cm) |
| Width | 4.25 in (10.8 cm) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What should I order if I am installing in a concrete floor?
If you are performing a concrete floor installation, you should order the 862KIT instead of this 862DB assembly.
Is the 862DB TAA compliant for government projects?
Yes, the 862DB is TAA compliant and carries USMCA, ROHS, and cULus certifications.
What type of cover is included with this assembly?
This assembly comes with one 895T brass duplex receptacle cover intended for use with tile.
