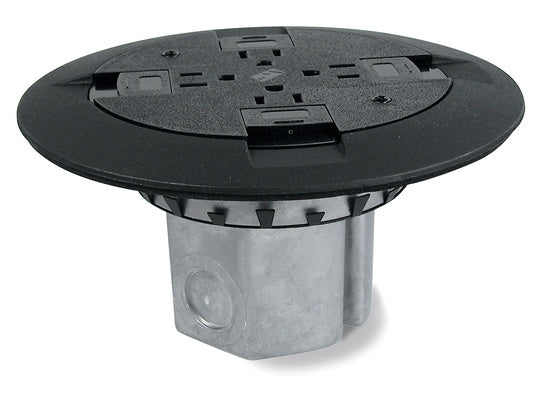

861QTCBK Wood Floor Box Assembly in Black
Black wood floor box assembly with prewired 15A quad receptacle and 18 cu. in. capacity for tile, wood, or carpet floors
The Wiremold 861QTCBK is a complete wood floor box assembly finished in black. This unit features a prewired 15A quad receptacle that can be configured as standard or as an isolated ground. Constructed from die-cast aluminum, the box provides an 18 cu. in. (295 cu.cm) capacity and includes a scrub water gasket for protection. Installation requires a 4" (102mm) diameter hole and a total floor depth of 1" (25mm). The assembly includes three 1/2" trade size knockouts, with two located on the sides and one on the bottom. This TAA compliant solution is suitable for installation in tile, wood, or carpet flooring environments.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Black |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What are the installation requirements for the 861QTCBK?
This floor box requires a 4" (102mm) diameter hole and a minimum overall floor depth of 1" (25mm).
Can this floor box be used with carpeted floors?
Yes, the 861QTCBK is designed for use on tile, wood, or carpet floors and includes a scrub water gasket.
What is the receptacle configuration for this assembly?
The unit comes with a prewired 15A quad receptacle that can be wired as a standard configuration or as an isolated ground.
What conduit sizes are compatible with this unit?
The assembly features three 1/2" trade size knockouts: two located on the sides and one on the bottom.
Is the 861QTCBK TAA compliant?
Yes, this specific black assembly is TAA compliant.
