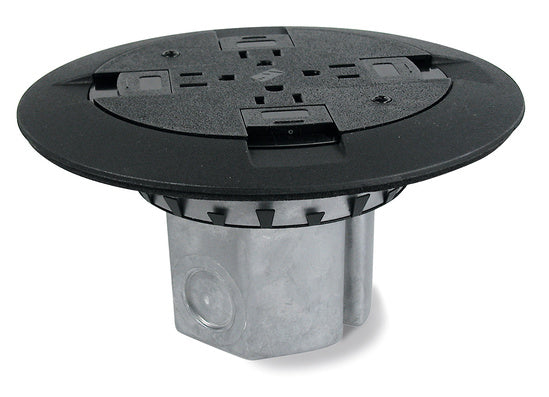

861QTCAA Wood Floor Box Assembly in Aluminum
Aluminum wood floor box assembly with prewired 15A quad receptacle and 18 cu. in. capacity
The 861QTCAA is a die-cast aluminum floor box assembly designed for installation in wood, tile, or carpeted flooring. This unit comes prewired with a 15A quad receptacle and can be wired as a standard configuration or as an isolated ground. It features three 1/2'' trade size knockouts, positioned with two on the sides and one on the bottom, providing a 18 cu. in. (295 cu.cm) capacity. For installation, this assembly requires a 4'' (102mm) diameter hole and a total floor depth of 1'' (25mm). The unit is assembled with a scrub water gasket to ensure a proper seal. While this specific SKU features an aluminum finish, the 861QTC series offers various color and finish options for the flanges and slide covers to match your flooring requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Aluminum |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What are the installation requirements for the 861QTCAA?
This assembly requires a 4'' (102mm) diameter hole and a minimum overall floor depth of 1'' (25mm).
Can I use the 861QTCAA on carpeted floors?
Yes, this floor box is rated for use on wood, tile, or carpet floors and includes a scrub water gasket.
How many conduit entries does this box have?
The unit features three 1/2'' trade size knockouts, which include two on the sides and one on the bottom.
What is the receptacle configuration for this model?
The 861QTCAA comes prewired with a 15A quad receptacle that can be wired for either standard or isolated ground.
What is the total capacity of the 861QTCAA assembly?
The die-cast aluminum housing provides an internal capacity of 18 cu. in. (295 cu.cm).
