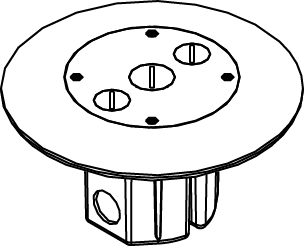

861FFTCBS Furniture Feed Raised Floor Box Assembly in Brass
Brass furniture feed raised floor box assembly with 18 cu. in. capacity and TAA compliance
The Wiremold 861FFTCBS is a raised floor box assembly finished in brass, designed to facilitate cable and wire routing through a floor into furniture. This die-cast aluminum unit features an 18 cu. in. (295 cu.cm) capacity and is constructed with three 1/2'' trade size knockouts, positioned with two on the sides and one on the bottom. Installation requires a 4'' (102mm) diameter hole. The assembly includes a cover with two 1/2'' trade size conduit openings and one 3/4'' trade size threaded conduit opening to accommodate various feeding requirements.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Brass |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What size hole is required for the 861FFTCBS installation?
This raised floor box assembly requires a 4'' (102mm) diameter hole for installation.
What conduit sizes are supported by this floor box assembly?
The cover provides two 1/2'' trade size conduit openings and one 3/4'' trade size threaded conduit opening for cable feeding.
Is the 861FFTCBS TAA compliant?
Yes, the 861FFTCBS is TAA compliant and also carries cULus, RoHS, and USMCA certifications.
What is the capacity of this brass floor box?
The unit provides an internal capacity of 18 cu. in. (295 cu.cm).
How do the cover options differ for the 861 series?
The 861FFTCBS features a brass finish; other variants in the 861FFTC series offer different flange colors and slide cover matches.
