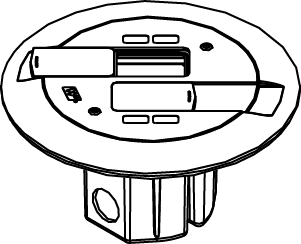

861AMDTCAL Wood Floor Box Assembly in Aluminum
Aluminum wood floor box assembly with 18 cu. in. capacity for tile, wood, or carpet installations
The 861AMDTCAL is a die-cast aluminum wood floor box assembly designed for versatile installation on tile, wood, or carpet floors. This assembly provides a capacity of 18 cu. in. (295 cu. cm.) and is configured to accept up to four UTP connectors. It features three 1/2'' trade size knockouts, with two located on the sides and one on the bottom. Installation requires a 4'' (102mm) diameter hole and an overall floor depth of 1'' (25mm). The unit is shipped assembled with a scrub water gasket to protect the installation site. This TAA compliant assembly is a modular solution that includes two Ortronics TracJack inserts, two Ortronics Series II adapters, and two Wiremold Open System adapters; note that modular jacks are sold separately.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Aluminum |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What floor types is the 861AMDTCAL compatible with?
This assembly is designed for use on tile, wood, or carpet floors.
How much depth is required in the floor for this box?
The installation requires a 4'' (102mm) diameter hole and an overall floor depth of 1'' (25mm).
Does this assembly include the modular jacks?
No, modular jacks are sold separately from this assembly.
What is the knockout configuration for the 861AMDTCAL?
It features three 1/2'' trade size knockouts: two on the sides and one on the bottom.
What accessories are included in the assembly?
The assembly includes two Ortronics TracJack inserts, two Ortronics Series II adapters, and two Wiremold Open System adapters.
