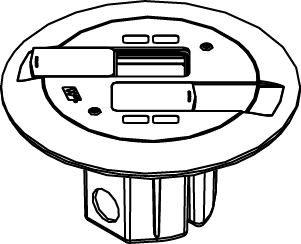

861AMDTCAB Wood Floor Box Assembly in Brass
Brass wood floor box assembly for tile, wood, or carpet with 18 cu. in. capacity and TAA compliance
The Wiremold 861AMDTCAB is a brass wood floor box assembly designed for installation in tile, wood, or carpet flooring. This die-cast aluminum unit features three 1/2'' trade size knockouts, located with two on the sides and one on the bottom. It is engineered to accommodate a 4'' (102mm) diameter hole and requires a total floor depth of 1'' (25mm). The assembly includes two Ortronics TracJack inserts, two Ortronics Series II adapters, and two Wiremold Open System adapters, and arrives assembled with a scrub water gasket. This communication floor box can accept up to four UTP connectors, though modular jacks must be purchased separately to complete the installation.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | Brass |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What floor types is the 861AMDTCAB compatible with?
This assembly is designed for use on wood, tile, or carpet floors. It requires a 4'' (102mm) diameter hole and a 1'' (25mm) overall floor depth.
What accessories are included with this floor box assembly?
The 861AMDTCAB includes two Ortronics TracJack inserts, two Ortronics Series II adapters, and two Wiremold Open System adapters. Note that modular jacks are sold separately.
How many UTP connectors can this box hold?
All communication floor boxes in this series can accept up to four UTP connectors.
What is the knockout size for the 861AMDTCAB?
The unit features three 1/2'' trade size knockouts: two are located on the sides and one is located on the bottom.
Does the 861AMDTCAB meet TAA requirements?
Yes, this product is TAA compliant and includes a scrub water gasket for the installation.
