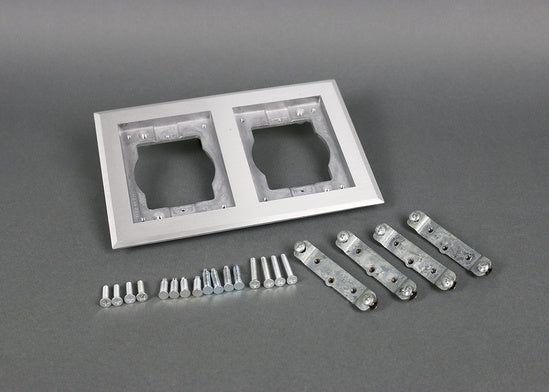

828TCAL Omnibox® Two Gang Rectangular Aluminum Carpet and Tile Flange
Two gang brushed aluminum flange for Omnibox and Modulink Series floor boxes, designed for carpet and tile surfaces
The 828TCAL is a two gang rectangular aluminum flange designed for use with the Wiremold OmniBox and Modulink Series floor boxes. This brushed aluminum flange features beveled edges and is sized at 5.940 inch x 9.045 inch (150.9mm x 229.7mm). It is specifically intended for transitions in carpet and tile environments. For complete system integration, this flange accepts Ortronics MAB6TJ TracJack and MAB3S2 Series II adapters, as well as Wiremold CM Series Open System adapters, which are sold separately. When planning your installation, note that this brushed aluminum finish is distinct from brass options; brass cover plates are only compatible with brass-finished flanges. This product is TAA compliant and meets RoHS material restrictions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 9 in (22.9 cm) |
| Height | 0.75 in (1.9 cm) |
| Width | 6 in (15.2 cm) |
| TAA Compliant | Yes |
| Certifications | TAA |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Aluminum |
Resources
Questions about this part
Which adapters fit the 828TCAL flange?
This flange accepts Ortronics MAB6TJ TracJack and MAB3S2 Series II adapters, and Wiremold CM Series Open System adapters.
Will this flange work with brass cover plates?
No, brass cover plates can only be used with brass-finished flanges. This SKU is a brushed aluminum flange with beveled edges.
What is the required installation depth for this floor box flange?
The product has a depth of 9 in (22.9 cm).
Is the 828TCAL TAA compliant for government contracts?
Yes, this product is TAA compliant and meets RoHS material restrictions.
What are the dimensions of the flange?
The flange measures 5.940 inch x 9.045 inch (150.9mm x 229.7mm) with a height of 0.75 in (1.9 cm).
