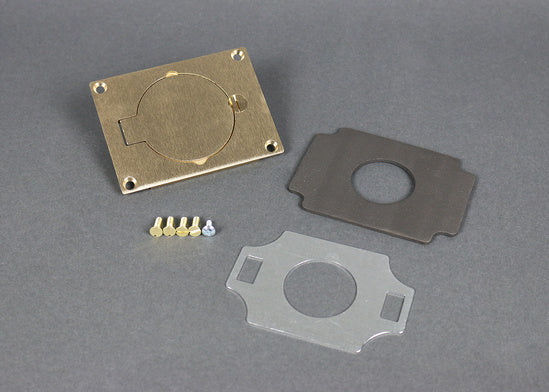

828DLR Single Locking Cover Plate in Brass
Brass single locking cover plate for single locking receptacles, compatible with 20A or 30A device openings
The Wiremold 828DLR is a brass single locking cover plate designed for use with concrete floor boxes. This component features a single flip lid to secure a 2 5/8'' (67mm) device opening. It is specifically engineered to accommodate single locking receptacles with a 20A or 30A rating. For proper fitment, the cover supports a maximum female locking device diameter of 1.58'' and a maximum male plug face diameter of 2.25''. Installers should note that this brass version is part of a specific material series; brass covers and flanges are not interchangeable with aluminum or nonmetallic versions, though nonmetallic covers can be used with aluminum flanges.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 4.13 in (10.5 cm) |
| Height | 0.25 in (0.6 cm) |
| Width | 3.13 in (8 cm) |
| Color | Brass |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What size device opening does the 828DLR cover accommodate?
This cover is designed for a device opening of 2 5/8'' (67mm) to support single locking receptacles.
Can I use this brass cover with an aluminum flange?
Yes, nonmetallic covers are interchangeable with aluminum flanges, but brass covers and flanges are not interchangeable with aluminum or nonmetallic options.
Is this cover compatible with 30A locking receptacles?
Yes, the 828DLR is designed for use with both 20A and 30A single locking receptacles.
What are the maximum plug and device diameters for this plate?
It supports a maximum male plug face diameter of 2.25'' and a maximum female locking device diameter of 1.58''.
