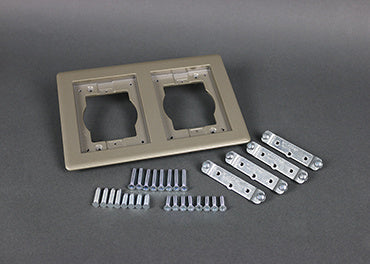

827TCAL-NK Carpet and Tile Flange in Nickel
Two-gang powder-coated aluminum flange in Nickel for carpet, tile, or terrazzo flooring applications
The 827TCAL-NK is a two-gang powder-coated aluminum combination flange designed for use with Omnibox systems. Measuring 6'' x 9'' (152.4mm x 228.6mm), this Nickel-finish component is UL Listed for installation in carpet, tile, and terrazzo floors. This flange is compatible with Ortronics MAB6TJ TracJack and MAB3S2 Series II adapters, as well as Wiremold CM Series Open System inserts, which are required and sold separately. When planning an installation, note that while nonmetallic covers are interchangeable with this aluminum flange, brass covers and flanges are not compatible with aluminum or nonmetallic versions.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Shipping Dimensions | 10.5" x 16" x 0.63" (266.7 x 406.4 x 16.1 mm) |
| Color | Nickel |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
Resources
Questions about this part
What type of flooring is the 827TCAL-NK rated for?
This flange is UL Listed for use in carpet, tile, and terrazzo flooring.
What adapters can I use with this flange?
The 827TCAL-NK accepts Ortronics MAB6TJ TracJack and MAB3S2 Series II adapters, as well as Wiremold CM Series Open System inserts.
Do I need to buy anything else to complete the installation?
Yes, the Ortronics adapters and Wiremold CM Series inserts mentioned are sold separately.
Can I use brass covers with this aluminum flange?
No, brass covers and flanges are not interchangeable with aluminum or nonmetallic covers and flanges.
Is this product compliant with environmental standards?
Yes, this product meets the material restrictions of RoHS and is cULus listed.
