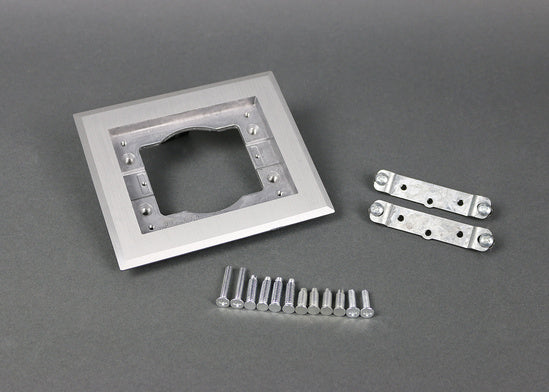

818TCAL Omnibox® One Gang Rectangular Aluminum Carpet and Tile Flange
One gang brushed aluminum flange for Omnibox and Modulink Series floor boxes, used with carpet or tile finishes
The 818TCAL is a brushed aluminum combination flange designed for use with the Omnibox and Modulink Series floor boxes. This one gang rectangular flange is intended for both carpet and tile installations, featuring beveled edges for a finished appearance. The flange dimensions are 5.940 inch x 4.920 inch (150.9mm x 125.0mm), providing a secure perimeter for floor box openings. This component is compatible with Ortronics MAB6TJ TracJack and MAB3S2 Series II adapters, as well as Wiremold CM Series Open System adapters, which must be purchased separately. When selecting a cover plate, note that brass cover plates are only compatible with brass-finished flanges, whereas this aluminum model is intended for brushed aluminum applications. This product meets RoHS material restrictions and carries cULus and RoHS certifications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 6 in (15.2 cm) |
| Height | 0.75 in (1.9 cm) |
| Width | 5 in (12.7 cm) |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Aluminum |
Resources
Questions about this part
What adapters are compatible with the 818TCAL flange?
This flange accepts Ortronics MAB6TJ TracJack and MAB3S2 Series II adapters, along with Wiremold CM Series Open System adapters, which are sold separately.
Will this flange work with a brass cover plate?
No, brass cover plates are only compatible with brass flanges; this model features a brushed aluminum finish with beveled edges.
Can this be used in both carpet and tile environments?
Yes, this is a combination flange designed for both carpet and tile installations.
Is the 818TCAL TAA compliant?
The 818TCAL is not listed as TAA compliant in the manufacturer specifications.
What is the size of the 818TCAL flange?
The flange measures 5.940 inch x 4.920 inch (150.9mm x 125.0mm).
