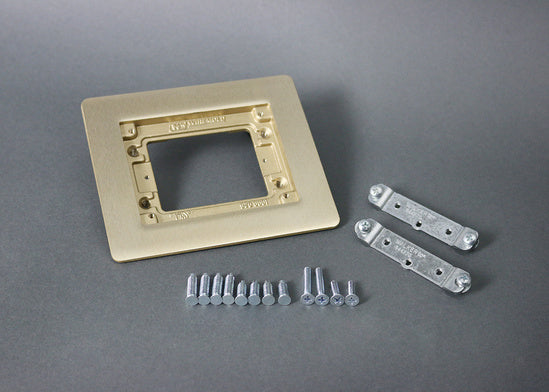

817B Omnibox® One Gang Rectangular Brass Carpet and Tile Flange
Brass rectangular flange for carpet and tile applications with OmniBox and Modulink Series floor boxes
The Wiremold 817B is a one-gang rectangular brass flange designed for both carpet and tile installations. This component is intended for use with the OmniBox and Modulink Series floor boxes to provide a finished surface transition in floor-mounted connectivity systems. The flange measures 6.080 inch x 5.060 inch (154.4mm x 128.5mm) and maintains a height of 0.75 in (1.9 cm). To complete the assembly, this flange accepts Ortronics MAB6TJ TracJack, MAB3S2 Series II, and Wiremold CM Series Open System adapters, all of which are sold separately. For a consistent aesthetic, brass cover plates must be paired specifically with these brass flanges.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Depth | 6 in (15.2 cm) |
| Height | 0.75 in (1.9 cm) |
| Width | 5 in (12.7 cm) |
| TAA Compliant | No |
| Warranty | 1-Year from Installation or 2-Years from Day of Sale |
| Color | Brass |
Resources
Questions about this part
What adapters fit the 817B brass flange?
The 817B accepts Ortronics MAB6TJ TracJack and MAB3S2 Series II adapters, as well as Wiremold CM Series Open System adapters, which are sold separately.
Can I use any cover plate with this brass flange?
No, brass cover plates must be used specifically with brass flanges for proper compatibility.
Will this flange work with Modulink Series floor boxes?
Yes, this flange is designed for use with both the OmniBox and Modulink Series floor boxes.
What are the dimensions of the 817B flange?
The flange has a surface dimension of 6.080 inch x 5.060 inch (154.4mm x 128.5mm) with a height of 0.75 in (1.9 cm).
Is this product TAA compliant?
The 817B is not TAA compliant, though it does carry cULus and RoHS certifications.
