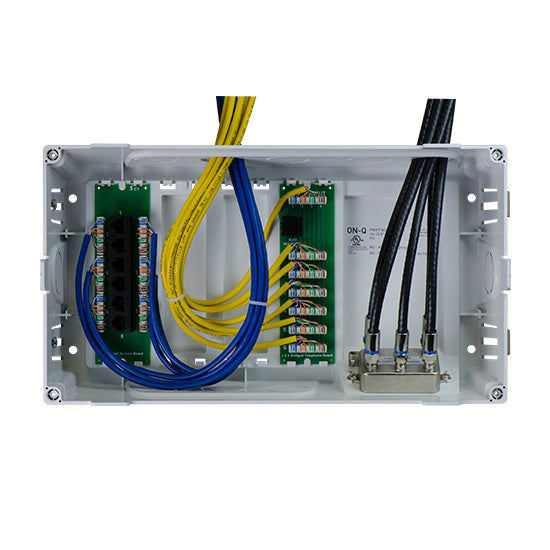

8 Inch MDU Enclosure Kit with Cat5e Data
8-inch MDU enclosure kit for small homes or multi-dwelling units, providing 6 phone, 4 video, and 6 data connection points
The On-Q EN0803 is an 8-inch MDU enclosure kit designed to provide a cost-effective, repetitive structured wiring solution for small homes and multi-dwelling units. This kit facilitates the distribution of six phone, four video, and six data locations within a single ABS enclosure. For installers requiring a more customized configuration, this kit is an alternative to unpopulated enclosures like the EN0800 or EN0806, which can be paired with different voice, video, or data distribution modules. This specific kit includes a 6-way phone module (TM0106), a 4-way coax splitter (VM0204), and a 6-port Cat5e data board (AC0506). Installation is versatile, supporting both surface-mount and flush-mount applications via included mounting tabs and drywall depth indicators.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
| Color | White |
| Material | ABS |
Resources
Questions about this part
What modules are included in the EN0803 kit?
This kit comes with a TM0106 6-way phone module, a VM0204 4-way coax splitter, and an AC0506 6-port Cat5e data board.
Can I use this enclosure for a custom configuration?
Yes. While this kit is pre-configured, you can use unpopulated EN0800 or EN0806 enclosures to pair with different video, voice, or data modules.
How is this enclosure mounted in a wall?
The kit supports both surface-mount and flush-mount installations and includes mounting tabs along with drywall depth indicators to assist installation.
What is included for securing the enclosure cover?
The kit includes four self-tapping screws for mounting and provides optional hardware to lock the cover in place.
Does the enclosure provide protection during the construction phase?
Yes, it includes a cable guard designed to protect the enclosure contents from being covered by dust or paint during construction.
