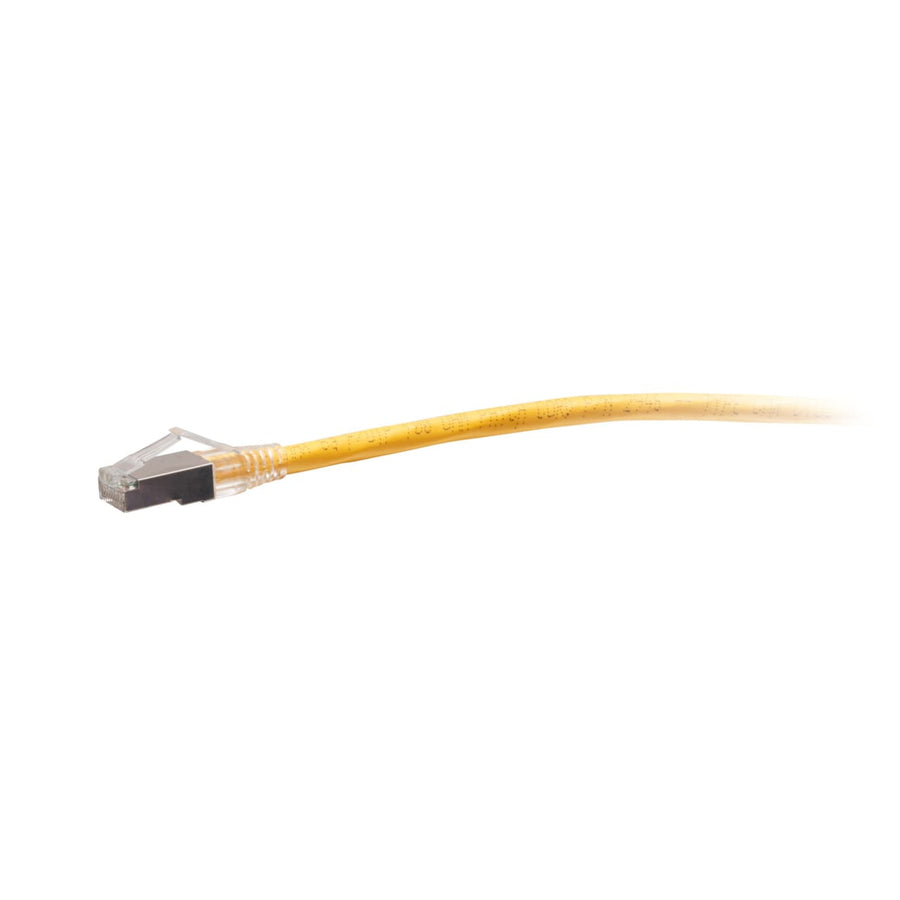

7ft (2.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Yellow
7ft TAA-compliant Cat6a snagless shielded STP network cable in yellow, featuring stranded copper conductors for 10GBASE-T performance
The C2G43903 is a 7 ft (2.1 m) TAA-compliant Cat6a snagless shielded (STP) network cable designed for high-speed 10GBase-T environments. This yellow patch cable utilizes high-quality, made in the USA stranded copper conductors and an aluminum foil shield to protect against EMI, RFI, and alien crosstalk. It is engineered to meet or exceed ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards, making it suitable for bandwidth-intensive applications that require reduced impedance and structural return loss (SRL). The cable features 50-micron gold-plated contacts on the RJ-45 male connectors to maintain signal integrity and a snagless design to prevent the clips from breaking during high insertion cycles. This CMR rated riser cable has a 0.24 in (6 mm) diameter and is rated for operating temperatures between -4° to 167°F (-20° to 75°C). It is fully TAA compliant for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Yellow |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439035 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43903 TAA compliant for government projects?
Yes, this cable is TAA compliant and meets the stringent requirements for use in United States government facilities.
What type of shielding does this Cat6a cable use?
The C2G43903 uses a shielded STP (Screened Twisted Pair) construction with aluminum foil to protect against electromagnetic and radio frequency interference.
Will this cable support 10 Gigabit Ethernet?
Yes, it is designed for 10GBase-T ports and equipment, supporting high-bandwidth applications by reducing impedance and structural return loss.
What is the maximum operating temperature for this cable?
This cable is rated for operating temperatures ranging from -4° to 167°F (-20° to 75°C).
What is the difference between this and other C2G F-Series cables?
This SKU is part of the TAA-Compliant F-Series, which is available in various lengths up to 100ft and multiple color options.
