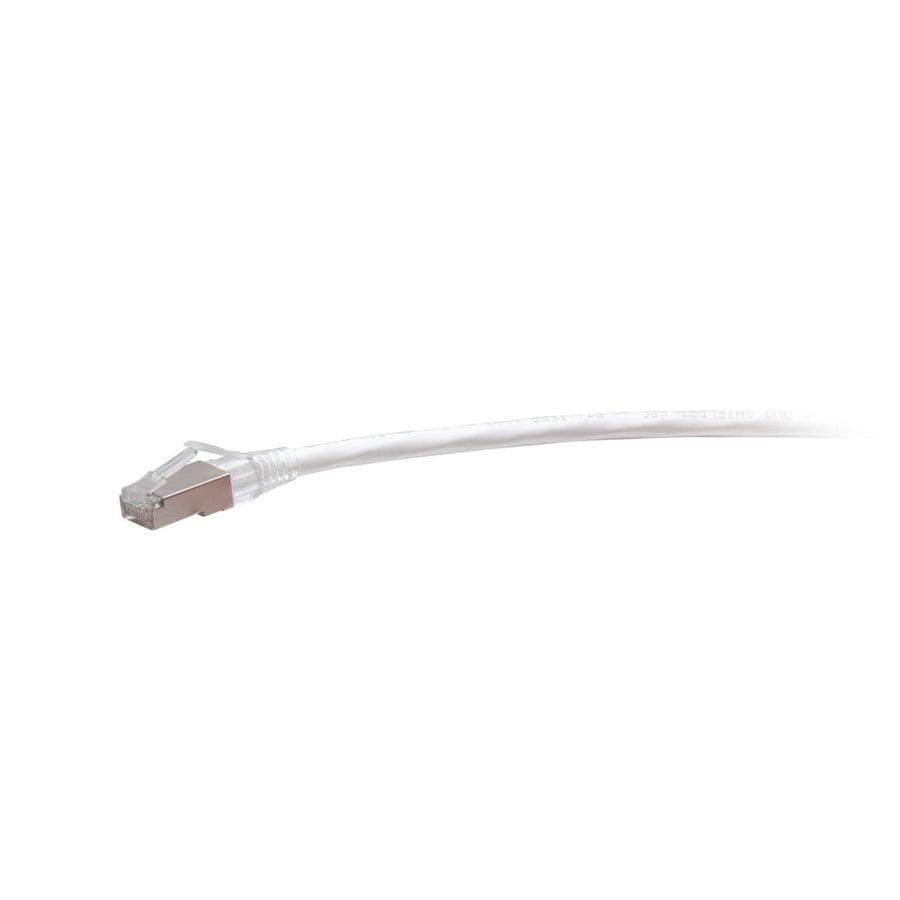

7ft (2.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - White
White 7ft Cat6a snagless shielded STP network cable, TAA-compliant, designed for 10GBase-T high-speed connectivity
The C2G43966 is a 7 ft (2.1 m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable, specifically engineered for high-speed 10GBase-T environments. This passive patch cable is constructed with high-quality, made in the USA stranded copper cabling and an aluminum foil shield to protect against EMI, RFI, and alien crosstalk. It is ideal for connecting 10 Gigabit Ethernet equipment, including network adapters, switches, routers, hubs, and patch panels. Featuring a snagless RJ45 connector design, this cable protects the clips from breakage during frequent insertion cycles. The white PVC jacket is CMR rated for riser applications. Each cable utilizes 50-micron gold-plated contacts to maintain signal integrity and meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 industry standards. This shielded STP cable is suitable for operating in temperatures ranging from -4° - 167°F (-20° - 75°C).
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | White |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439660 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43966 suitable for government installations?
Yes, this cable is TAA-compliant and approved for use in United States government projects and facilities.
What is the maximum data rate supported by this Cat6a cable?
This cable is designed to handle 10GBase-T (10 Gigabit Ethernet) for high-speed, bandwidth-intensive applications.
Will the connector clips break during frequent use?
The snagless RJ45 design protects the clips from being easily snapped off, making it ideal for applications with high insertion cycles.
What is the jacket rating for this cable?
This cable features a PVC jacket that is CMR rated for riser applications.
Does this cable provide shielding against interference?
Yes, the shielded STP design uses aluminum foil to reduce impedance and protect against EMI, RFI, and alien crosstalk.
