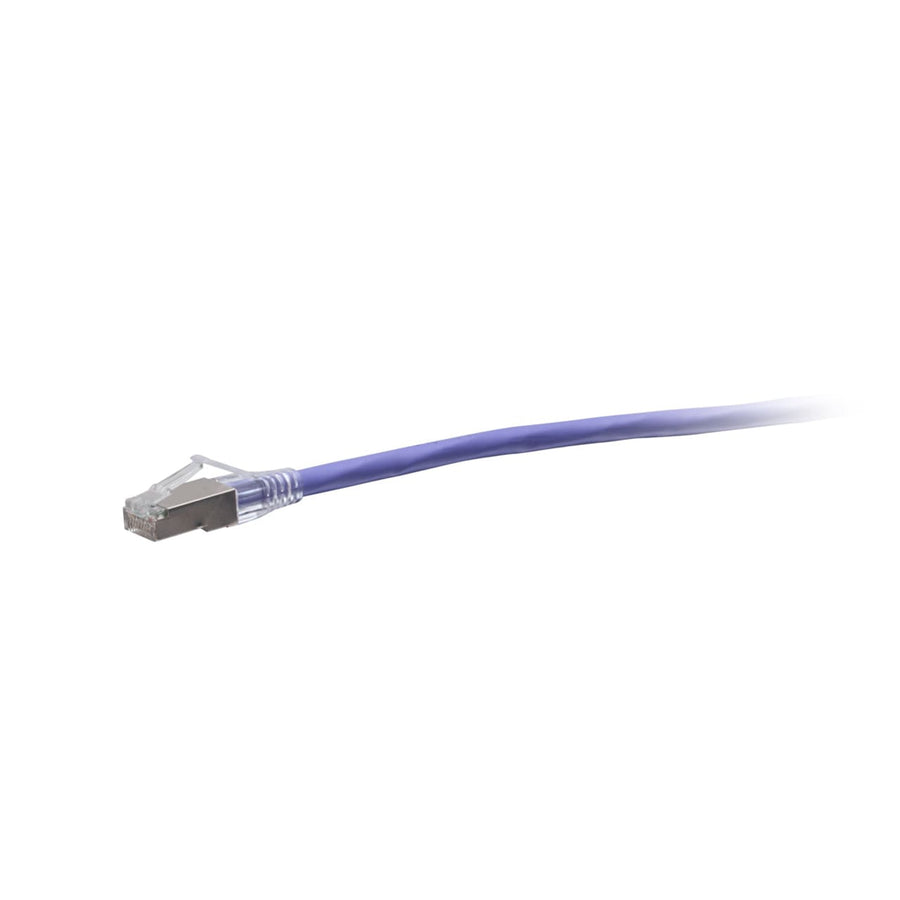

7ft (2.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Purple
7ft Cat6a snagless shielded (STP) network cable in purple, TAA-compliant for 10GBase-T high-speed connections
The C2G43945 is a 7 ft (2.1 m) TAA-compliant F-Series Cat6a snagless shielded (STP) network cable in purple. This passive cable is designed to support bandwidth-intensive 10GBase-T applications, providing reliable 10 Gigabit Ethernet performance for network adapters, switches, routers, hubs, and patch panels. Constructed with high-quality, made in the USA copper cabling and an aluminum foil shield, this cable is engineered to protect high-speed connections from EMI, RFI, and alien crosstalk. The snagless RJ45 connector design protects the clips from being easily snapped off, making it highly suitable for applications with high insertion cycles. It features 50-micron gold-plated contacts to improve signal integrity and utilizes 26 AWG stranded copper conductors. This CMR rated riser cable with a PVC jacket is compliant with ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards. It is rated for operating temperatures ranging from -4°F to 167°F (-20°C to 75°C). This purple cable is TAA compliant, meeting the necessary requirements for use in United States government projects and facilities.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Purple |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439455 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
20 Inch Plastic Enclosure with Trim Ring and Hinged Door
ENP2050NA$94.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
9 Inch Dual-Purpose In-Wall Enclosure
ENP0900NA$39.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
Questions about this part
Is the C2G43945 TAA compliant?
Yes, this cable is TAA compliant, making it suitable for United States government projects and facilities.
What is the maximum data rate for this Cat6a cable?
This cable is designed to support 10GBase-T applications, providing high-speed 10 Gigabit Ethernet performance.
What kind of shielding does this C2G cable use?
The C2G43945 uses Shielded STP (Shielded Twisted Pair) with an aluminum foil shield to counter EMI and RFI.
Does this cable support 10GbE connections in high-interference areas?
Yes, the aluminum foil shield is specifically designed to protect 10 Gigabit network connections from alien crosstalk and electromagnetic interference.
What is the jacket rating for this purple Cat6a cable?
This cable features a CMR rated riser jacket made of PVC material.
