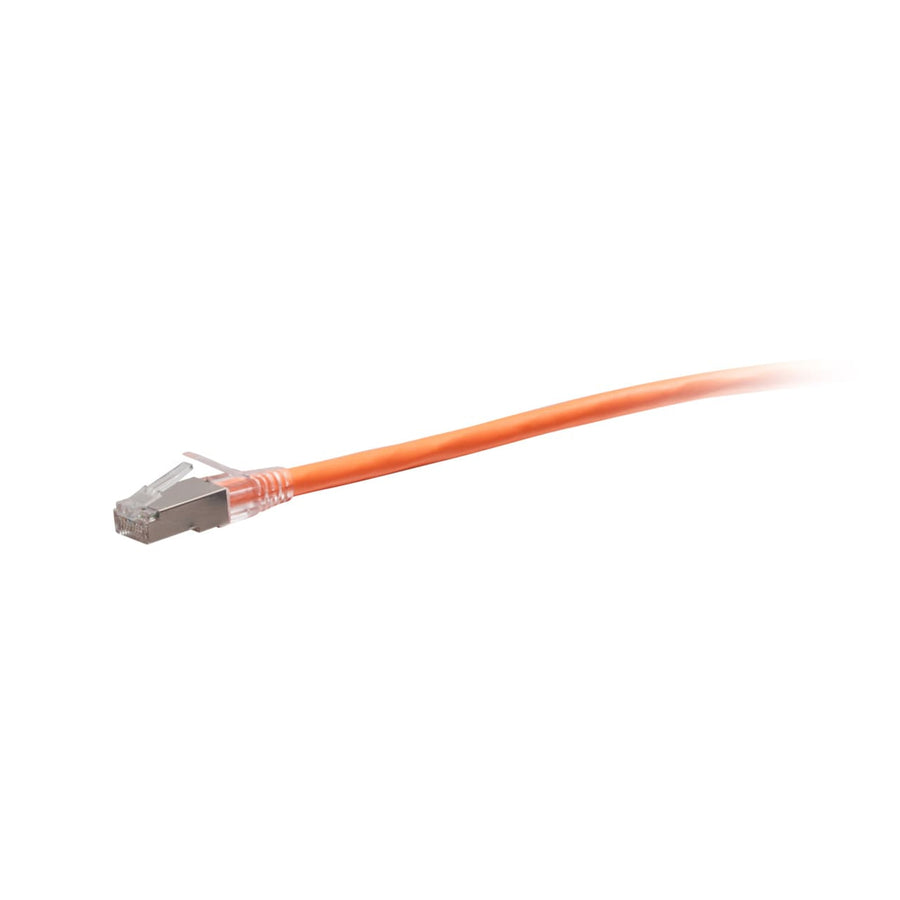

7ft (2.1m) TAA-Compliant F-Series Cat6a Snagless Shielded (STP) Network Cable - Orange
7ft Orange Cat6a Snagless Shielded (STP) network cable, TAA-compliant for 10GBase-T high-speed applications
The C2G43924 is a 7ft (2.1m) TAA-compliant Cat6a Snagless Shielded (STP) network cable in orange, designed for high-performance 10GBase-T environments. This passive patch cable is manufactured using high-quality, made in the USA copper cabling with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk. It is ideal for use with network adapters, hubs, switches, routers, and patch panels requiring high-speed 10 Gigabit Ethernet connections. The cable features a snagless RJ45 connector design, which protects the clips from breaking during high-frequency insertion cycles. Constructed with stranded copper conductors and 50-micron gold-plated contacts, it ensures signal integrity and reduced impedance. This CMR rated, riser-rated cable meets ANSI/TIA-568.2-D and ISO/IEC 11801-1 standards and is suitable for use in United States government projects due to its TAA compliance. The 0.24 in (6 mm) diameter PVC jacket allows for reliable performance in bandwidth-intensive voice, data, and video distribution applications.
Specifications are supplied by the manufacturer. For complete details, check the Resources section.Key features
Specifications
Main specifications 8
| Cable Diameter | 0.24 in (6 mm) |
| Cable Length | 7 ft (2.1 m) |
| Operating Temperature | -4° - 167°F (-20° - 75°C) |
| Shield Type | STP |
| Shipping Weight | 0.2 lbs (0.1 kg) |
| Wire Gauge | 26 |
| Wiring Scheme | T568B |
| Active/Passive | Passive |
All other specifications 16
| Cable Shielding | Shielded STP |
| Cable Type | Snagless |
| Color | Orange |
| Conductor Material | Copper |
| Conductor Stranding | Stranded |
| Connector 1 | (1) RJ-45 Male |
| Connector 2 | (1) RJ-45 Male |
| Jacket Application | Riser Rated |
| Jacket Rating | CMR Rated |
| Product Type | Cable |
| Special Features | ANSI/TIA-568.2-DISO/IEC 11801-1 |
| TAA Compliant | Yes |
| UPC | 757120439240 |
| Certifications | CEICNAFTAProp 65REACHRoHSTAA |
| Jacket Material | PVC |
| Warranty | Lifetime |
You'll need these with it
Two Port Keystone Single Gang Wall Plate - Stainless Steel
CG37094$11.99
8 Inch MDU Empty Enclosure and Cover
EN0800$44.99
15-Inch Plastic Enclosure with Deep Trim-Ring and Hinged Door
ENP1550DNA$69.99
14 Inch Enclosure with Hinged Door
EN1450$129.99
28 Inch Enclosure with Screw-On Cover
EN2800$129.99
20 Inch Enclosure with Screw-On Cover
EN2000$99.99
42 Inch Enclosure with Screw-On Cover
EN4200$189.99
20 Inch Enclosure with Hinged Door
EN2050$149.99
42 Inch Enclosure with Hinged Door
EN4250$249.99
12 Inch Enclosure with Screw-On Cover
EN1200$49.99
28 Inch Enclosure with Hinged Door
EN2850$149.99
9 Inch Dual-Purpose In-Wall Enclosure with 5 Inch Mounting Plate
ENP0905NAV1$49.99
Questions about this part
Is the C2G43924 TAA compliant?
Yes, this C2G43924 cable is TAA compliant and approved for use in United States government projects and facilities.
What is the maximum performance rating for this Cat6a cable?
This is a Category 6A cable that meets ANSI/TIA-568.2-D standards, supporting high-speed 10GBase-T (10 Gigabit Ethernet) applications.
Does this cable provide shielding against interference?
Yes, the C2G43924 features Shielded STP (STP) construction with an aluminum foil shield to protect against EMI, RFI, and alien crosstalk.
What type of jacket rating does this cable have?
This cable features a CMR rated, riser-rated PVC jacket suitable for various installation environments.
Will this cable work for high-density patch panels?
Yes, the snagless RJ45 connector design is specifically built to protect the clips from snapping off during high insertion cycles in patch panels or switches.
